Flexible PVC cable for the use in low temperature areas, even at temperatures of -35C°.

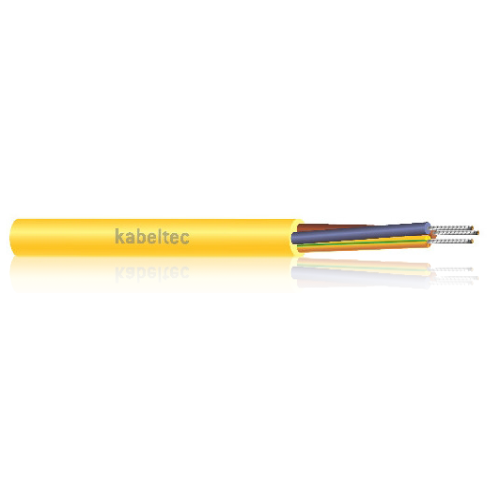

AT-N05V3V3-F
cold resistant PVC cable 300 / 500V
| CONSTRUCTION: |
| – Bare copper, class 5, according to VDE 0295 stranded |
| – Cores arranged in concetric layers with green/yellow earth conductor |
| – PVC outer sheath with ÖVE approval mark |
| – Shore-hardness sheath: 74 +/-3 |
| – Shore-hardness core: 74 +/- 3 |
| TECHNICAL DATA: | |
| Conductor Material: | Copper, bare |
| Conductor class: | class 5 |
| Core insulation: | special cold resistant PVC |
| Core identification: | according to VDE 0293 |
| Stranding: | * |
| Outer sheath: | special cold resistant PVC |
| Sheath colour: | grey, black or yellow |
| Rated voltage [V]: | 300 / 500 |
| Testing voltage [V]: | 2000 |
| Conductor resistance: | * |
| Insulation resistance: | * |
| Current carrying capacity: | * |
| Min. bending radius fixed [xd]: | min. 3 x OD |
| Min. bending radius moved [xd]: | min. 5 x OD |
| Working temp fixed min/max [C]: | -35°C up to +70 |
| Working temp moved min/max [C]: | -35°C up to +70 |
| Temp at conductor max: | * |
| Burning behaviour: | * |
| Approvals: | * |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 3 x 0.75 | 6.8 | 2.16 | 7.21 | |
| 3 x 1 | 7 | 2.9 | 7.97 | |
| 3 x 1.50 | 8.3 | 4.3 | 11.27 | |
| 3 x 2.50 | 10.2 | 7.2 | 17.45 | |
| 3 x 4 | 11.5 | 11.52 | 24.72 | |
| 4 x 0.75 | 7.4 | 2.9 | 8.8 | |
| 4 x 1 | 7.8 | 3.84 | 10.1 | |
| 4 x 1.50 | 9.2 | 5.8 | 14.16 | |
| 4 x 2.50 | 11.1 | 9.6 | 21.41 | |
| 4 x 4 | 12.5 | 15.4 | 30.57 | |
| 5 x 0.75 | 8.3 | 3.6 | 11.05 | |
| 5 x 1 | 8.6 | 4.8 | 12.37 | |
| 5 x 1.50 | 10.3 | 7.2 | 17.74 | |
| 5 x 2.50 | 12.4 | 12 | 26.74 | |
| 5 x 4 | 14.1 | 19.2 | 38.63 |
