These cables are used to transmit analogue or digital signals in measurement and process control. They can be used where chemicals may be present.

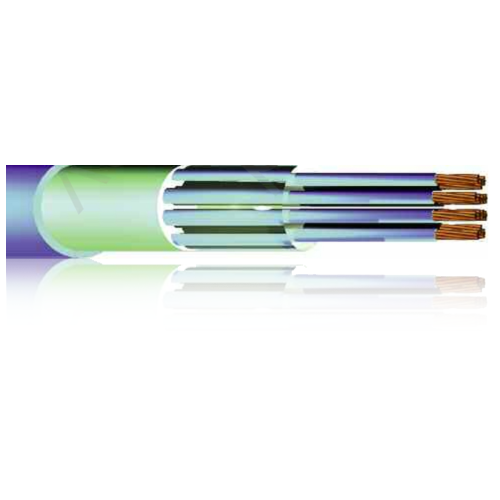

BS 5308
Paired and collective screened, also available halogen free
- Copper conductor
- Outer sheath made of PVC
TECHNICAL DATA:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 2 or 5 |
| Core insulation: | Part 1: PE | Part 2: PVC |
| Core identification: | according to VDE 0293 |
| Stranding: | * |
| Outer sheath: | PVC |
| Sheath colour: | Blue or black |
| Rated voltage [V]: | 300/500 |
| Testing voltage [V]: | 2500 |
| Conductor resistance: | * |
| Insulation resistance: | * |
| Current carrying capacity: | * |
| Min. bending radius fixed [xd]: | 5x d |
| Min. bending radius moved [xd]: | 5x d |
| Working temp fixed min/max [C]: | 0°C up to+50°C |
| Working temp moved min/mac [C]: | -15°C up to +65°C |
| Temp at conductor max.: | * |
| Burning behaviour: | * |
| Approvals: | BS5308: Part 1, insulated cables, instrumentation PE |
| BS6234: Specification for polyethylene insulation and sheath of electric cables | |
| BS EN 60332-3 Cat. C |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 6776030100.00 | 3 x 1.00 | 9.10 | 2.90 | 12.00 |
| 6776030150.00 | 3 x 1.50 | 10.10 | 4.30 | 15.22 |
| 6776030250.00 | 3 x 2.50 | 12.00 | 7.20 | 22.21 |
| 6776030400.00 | 3 x 4.00 | 13.70 | 11.52 | 31.33 |
| 6776040100.00 | 4 x 1.00 | 10.00 | 3.84 | 14.76 |
| 6776040150.00 | 4 x 1.50 | 11.10 | 5.80 | 18.76 |
| 6776040250.00 | 4 x 2.50 | 13.20 | 9.60 | 27.50 |
| 6776040400.00 | 4 x 4.00 | 15.10 | 15.40 | 39.11 |
| 6776050100.00 | 5 x 1.00 | 11.00 | 4.80 | 17.97 |
| 6776050150.00 | 5 x 1.50 | 12.20 | 7.20 | 22.83 |
| 6776050250.00 | 5 x 2.50 | 14.50 | 12.00 | 33.47 |
