Suitable as control and power cable in outdoor, underground, indoor and in water in static installations. This cable is preferentially used in Asia.

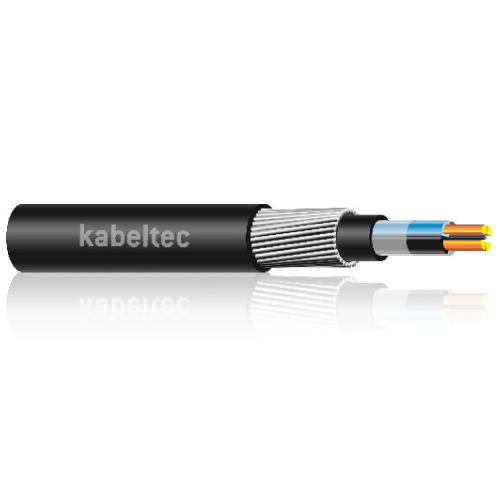

BS 5467 XLPE/PVC/SWA/PVC
According to British standards and steel wire armoured
- Plain annealed copper conductors
- Core marking: 2 cored: blue, brown / 3 cored: brown, black, grey / 4 cored: blue, brown, black, grey / 5 cored: green/yellow, blue, brown, black, grey
- Core insulation made of XLPE
- PVC bedded
- Steel wire armoured (SWA)
- PVC outer sheath
- Bending radius: 1,5-16mm²: 6 x Ø / über 25 mm²: 8 x Ø
S: shaped conductors
C: circular conductors
TECHNICAL DATA:
| Conductor Material: | Copper |
| Conductor class: | Class 1: Solid conductor Class 2: Stranded Conductor |
| Core insulation: | XLPE |
| Core identification: | 2 cores: blue, brown |
| 3 cores: brown, black, grey | |
| 4 cores: blue, brown, black, grey | |
| 5 cores: green/yellow, blue, brown, black, grey | |
| 6 core and above: numbered cores (optional numbered + green and yellow) | |
| Stranding: | * |
| Outer sheath: | PVC |
| Sheath colour: | Black |
| Rated voltage [V]: | 600 / 1000 |
| Testing voltage [V]: | * |
| Conductor resistance: | * |
| Insulation resistance: | * |
| Current carrying capacity: | * |
| Min. bending radius fixed [xd]: | * |
| Min. bending radius moved [xd]: | * |
| Working temp fixed min/max [C]: | * |
| Working temp moved min/max [C]: | -15°C up to +90 |
| Temp at conductor max.: | +90°C in operation +250°C in case of short-curcuit |
| Burning behaviour: | IEC 60332-1 |
| Approvals: | BS5467: Electric cables. |
| Thermosetting insulated, armoured cables for voltages of | |
| 600 / 1000V and 1900 / 3300V | |
| IEC60502: Power cables with extruded insulation and | |
| their acceccories for rated voltages from 1kV to 30kV | |
| Flame Propagation test to BS EN 60332-1-2 for single cable | |
| Oil resistant to ASTM 1047 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 90020150.00 | 2 x 1.50 | 11.06 | 0.00 | 23.40 |
| 90020250.00 | 2 x 2.50 | 12.40 | 0.00 | 31.20 |
| 90020400.00 | 2 x 4 | 13.38 | 0.00 | 37.30 |
| 90020600.00 | 2 x 6 | 14.38 | 0.00 | 45.00 |
| 90021000.00 | 2 x 10 | 16.18 | 0.00 | 59.00 |
| 90021600.00 | 2 x 16 | 19.06 | 0.00 | 89.30 |
| 90022500.00 | 2 x 25 | 20.00 | 0.00 | 105.00 |
| 90023500.00 | 2 x 35 | 22.00 | 0.00 | 140.00 |
| 90025000.00 | 2 x 50 | 25.00 | 0.00 | 175.00 |
| 90027000.00 | 2 x 70 | 28.00 | 0.00 | 220.00 |
| 90029500.00 | 2 x 95 | 32.00 | 0.00 | 300.00 |
| 900212000.00 | 2 x 120 | 35.00 | 0.00 | 360.00 |
| 900215000.00 | 2 x 150 | 37.00 | 0.00 | 425.00 |
| 900218500.00 | 2 x 185 | 43.00 | 0.00 | 550.00 |
| 900224000.00 | 2 x 240 | 55.10 | 0.00 | 1015.00 |
| 900230000.00 | 2 x 300 | 50.00 | 0.00 | 820.00 |
| 90030150.00 | 3 x 1.50 | 12.80 | 0.00 | 34.10 |
| 90030250.00 | 3 x 2.50 | 14.10 | 0.00 | 40.50 |
| 90030400.00 | 3 x 4 | 15.30 | 0.00 | 49.50 |
| 90030600.00 | 3 x 6 | 16.60 | 0.00 | 60.00 |
| 90031000.00 | 3 x 10 | 19.50 | 0.00 | 90.00 |
| 90031600.00 | 3 x 16 | 21.20 | 0.00 | 108.00 |
| 90032500.00 | 3 x 25 | 26.70 | 0.00 | 175.00 |
| 90033500.00 | 3 x 35 | 29.60 | 0.00 | 210.00 |
| 90035000.00 | 3 x 50 | 28.50 | 0.00 | 235.00 |
| 90037000.00 | 3 x 70 | 32.20 | 0.00 | 315.00 |
| 90039500.00 | 3 x 95 | 37.00 | 0.00 | 430.00 |
| 900312000.00 | 3 x 120 | 40.40 | 0.00 | 525.00 |
| 900315000.00 | 3 x 150 | 45.50 | 0.00 | 672.00 |
| 900315000/70 | 3 x 150 /70 | 45.50 | 0.00 | 672.00 |
| 900318500.00 | 3 x 185 | 49.80 | 0.00 | 804.00 |
| 900324000.00 | 3 x 240 | 56.00 | 0.00 | 965.00 |
| 900330000.00 | 3 x 300 | 60.20 | 0.00 | 1232.00 |
| 90040150.00 | 4 x 1.50 | 13.50 | 0.00 | 39.00 |
| 90040250.00 | 4 x 2.50 | 15.00 | 0.00 | 46.50 |
| 90040400.00 | 4 x 4 | 16.40 | 0.00 | 57.90 |
| 90040600.00 | 4 x 6 | 18.70 | 0.00 | 82.00 |
| 90041000.00 | 4 x 10 | 21.10 | 0.00 | 109.00 |
| 90041600.00 | 4 x 16 | 22.90 | 0.00 | 140.00 |
| 90042500.00 | 4 x 25 | 28.90 | 0.00 | 210.00 |
| 90043500.00 | 4 x 35 | 32.10 | 0.00 | 258.00 |
| 90045000.00 | 4 x 50 | 32.00 | 0.00 | 300.00 |
| 90047000.00 | 4 x 70 | 37.70 | 0.00 | 430.00 |
| 90049500.00 | 4 x 95 | 41.70 | 0.00 | 551.00 |
| 900412000.00 | 4 x 120 | 47.10 | 0.00 | 715.00 |
| 900415000.00 | 4 x 150 | 51.40 | 0.00 | 850.00 |
| 900418500.00 | 4 x 185 | 56.60 | 0.00 | 1030.00 |
| 900424000.00 | 4 x 240 | 63.00 | 0.00 | 1300.00 |
| 900430000.00 | 4 x 300 | 68.60 | 0.00 | 1575.00 |
| 90050150.00 | 5 x 1.50 | 14.20 | 0.00 | 43.30 |
| 90050250.00 | 5 x 2.50 | 16.00 | 0.00 | 53.00 |
| 90050400.00 | 5 x 4 | 18.40 | 0.00 | 77.50 |
| 90050600.00 | 5 x 6 | 19.70 | 0.00 | 92.90 |
| 90051000.00 | 5 x 10 | 23.20 | 0.00 | 130.00 |
| 90051600.00 | 5 x 16 | 26.60 | 0.00 | 188.00 |
| 90052500.00 | 5 x 25 | 31.70 | 0.00 | 267.00 |
| 90053500.00 | 5 x 35 | 33.00 | 0.00 | 280.00 |
| 90055000.00 | 5 x 50 | 38.00 | 0.00 | 385.00 |
| 90057000.00 | 5 x 70 | 43.00 | 0.00 | 510.00 |
| 90059500.00 | 5 x 95 | 52.00 | 0.00 | 770.00 |
| 90070150.00 | 7 x 1.50 | 15.20 | 0.00 | 50.60 |
| 90070250.00 | 7 x 2.50 | 17.10 | 0.00 | 61.80 |
| 90070400.00 | 7 x 4 | 19.70 | 0.00 | 90.70 |
| 90070600.00 | 7 x 6 | 21.30 | 0.00 | 111.00 |
| 90071000.00 | 7 x 10 | 25.60 | 0.00 | 172.00 |
| 90071600.00 | 7 x 16 | 28.80 | 0.00 | 230.00 |
| 90080150.00 | 8 x 1.50 | 17.60 | 0.00 | 66.30 |
| 90100150.00 | 10 x 1.50 | 19.80 | 0.00 | 81.20 |
| 90100250.00 | 10 x 2.50 | 21.40 | 0.00 | 98.90 |
| 90120150.00 | 12 x 1.50 | 19.40 | 0.00 | 85.40 |
| 90120250.00 | 12 x 2.50 | 22.40 | 0.00 | 108.00 |
| 90120400.00 | 12 x 4 | 27.70 | 0.00 | 155.00 |
| 90190150.00 | 19 x 1.50 | 23.20 | 0.00 | 112.00 |
| 90190250.00 | 19 x 2.50 | 26.10 | 0.00 | 157.00 |
| 90190400.00 | 19 x 4 | 29.30 | 0.00 | 205.00 |
| 90270150.00 | 27 x 1.50 | 27.90 | 0.00 | 163.00 |
| 90270250.00 | 27 x 2.50 | 30.20 | 0.00 | 205.00 |
| 90270400.00 | 27 x 4 | 34.40 | 0.00 | 274.00 |
| 90370150.00 | 37 x 1.50 | 30.60 | 0.00 | 197.00 |
| 90370250.00 | 37 x 2.50 | 33.80 | 0.00 | 254.00 |
| 90480150.00 | 48 x 1.50 | 33.90 | 0.00 | 239.00 |
| 90480250.00 | 48 x 2.50 | 38.80 | 0.00 | 343.00 |
