Power and control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

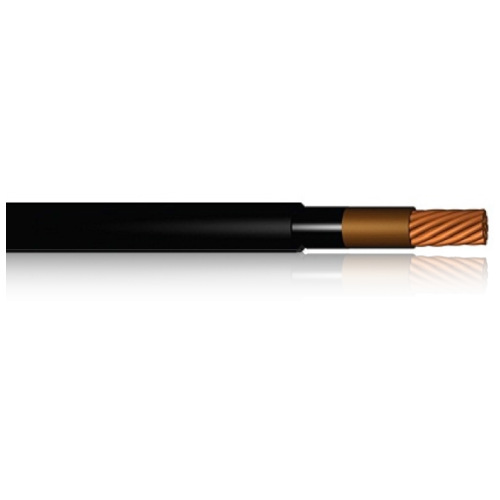

BS6724 Unarmoured Single Core
Halogen-free single core
- Bare copper conductor
- Unarmoured single core
- Outer sheath made of LSZH
TECHNICAL DATA:
| Conductor Material: | Copper bare |
| Conductor class: | Class 2 |
| Core insulation: | XLPE |
| Core identification: | * |
| Stranding: | * |
| Outer sheath: | FRNC-compound |
| Sheath colour: | Black |
| Rated voltage [V]: | 600 / 1000 |
| Testing voltage [V]: | 4000 |
| Conductor resistance: | * |
| Insulation resistance: | * |
| Current carrying capacity: | * |
| Min. bending radius fixed [xd]: | 6 x d |
| Min. bending radius moved [xd]: | 12 x d |
| Working temp fixed min/max [C]: | * |
| Working temp moved min/max [C]: | 0°C up to +90 |
| Temp at conductor max.: | +90°C in operation +250°C in case of short-circuit |
| Burning behaviour: | IEC 60332-1; IEC 60332-3 |
| Approvals: | * |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 900012500LSOH | 1 x 25 | 11.00 | 0.00 | 31.50 |
| 900013500LSOH | 1 x 35 | 12.10 | 0.00 | 42.00 |
| 900015000LSOH | 1 x 50 | 14.20 | 48.00 | 59.00 |
| 900017000LSOH | 1 x 70 | 16.40 | 67.20 | 81.00 |
| 900019500LSOH | 1 x 95 | 18.30 | 91.20 | 106.00 |
| 9000112000LSOH | 1 x 120 | 21.20 | 115.20 | 134.00 |
| 9000115000LSOH | 1 x 150 | 22.80 | 144.00 | 166.00 |
| 9000118500LSOH | 1 x 185 | 25.10 | 177.60 | 203.00 |
| 9000124000LSOH | 1 x 240 | 28.40 | 230.40 | 260.00 |
| 9000130000LSOH | 1 x 300 | 31.00 | 288.00 | 321.00 |
| 9000140000LSOH | 1 x 400 | 34.80 | 384.00 | 424.00 |
| 9000150000LSOH | 1 x 500 | 38.50 | 480.00 | 526.00 |
| 9000163000LSOH | 1 x 630 | 43.40 | 604.80 | 660.00 |
| 9000180000LSOH | 1 x 800 | 47.50 | 768.00 | 814.00 |
| 90001100000LSOH | 1 x 1000 | 53.00 | 960.00 | 986.00 |
