Distribution cable for industry constructions and switching boxes. For fixed installation inside of buildings, direct burial in earth, in water as well as in concrete and for heavy-duty mechanical load. The cable is UV-resistant and suitable for outdoor installations. In case of installations in extraordinary high or low temperature regions, like deserts or artic regions, a special sheathing may be required!

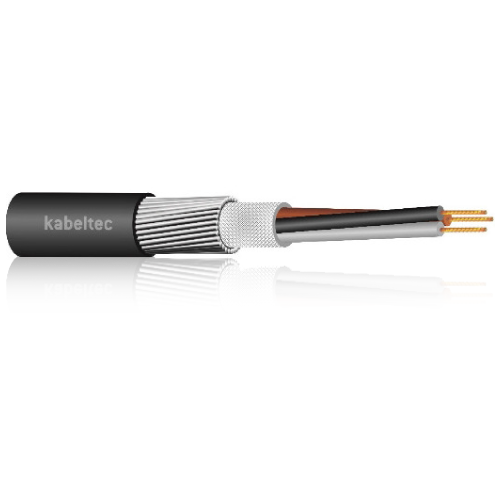

BS6724 XLPE/LSZH/SWA/LSZH
FRNC power cable
- Bare copper conductor
- Multi core, steel wire armoured
- Outer sheath: LSZH (halogen-free)
- With or without yellow-green core
- Flame-retardant
TECHNICAL DATA:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 2 |
| Core insulation: | XLPE |
| Core identification: | 2 cores: brown, blue |
| 3 cores: brown, black, grey | |
| 4 cores: brown, black, grey, blue | |
| 5 core: numbered cores (brown, black, grey, blue & green, yellow) | |
| 6 core and above: numbered cores: optional numbered + green and yellow | |
| Stranding: | * |
| Outer sheath: | FRNC-compound |
| Sheath colour: | Black |
| Rated voltage [V]: | 600 / 1000 |
| Testing voltage [V]: | 4000 |
| Conductor resistance: | * |
| Insulation resistance: | * |
| Current carrying capacity: | * |
| Min. bending radius fixed [xd]: | 6 x d |
| Min. bending radius moved [xd]: | 12 x d |
| Working temp fixed min/max [C]: | * |
| Working temp moved min/max [C]: | 0°C up to +90 |
| Temp at conductor max.: | +90°C in operation +250°C in case of short-circuit |
| Burning behaviour: | IEC 60332-1 and IEC 60332-3 |
| Approvals: | BSEN50267-1 |
| BSEN50267-2-1 | |
| BSEN50266-1 | |
| IEC60502 | |
| BSEN/IEC60332-1-2 | |
| BSEN61034-2:2005 | |
| Flame Propagation Test to BS EN 60332-1-2:2004 for | |
| single cable and BS EN 60332-3-24:2009 (Cat C) for multiple cables |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 910020150 | 2 x 1.50 | 12.3 | 2.88 | 30 |
| 910020250 | 2 x 2.50 | 13.6 | 4.8 | 36 |
| 910020400 | 2 x 4 | 14.70. | 7.7 | 42 |
| 910020600 | 2 x 6 | 15.9 | 11.5 | 50 |
| 910021000 | 2 x 10 | 18 | 19.2 | 65 |
| 910021600 | 2 x 16 | 20 | 30.7 | 91 |
| 910022500 | 2 x 25 | 24.1 | 48 | 106 |
| 910023500 | 2 x 35 | 27.9 | 67.2 | 148 |
| 910025000 | 2 x 50 | 25.8 | 96 | 180 |
| 910027000 | 2 x 70 | 29 | 134.4 | 230 |
| 910029500 | 2 x 95 | 33.1 | 182.4 | 317 |
| 9100212000 | 2 x 120 | 36.1 | 230.4 | 380 |
| 9100215000 | 2 x 150 | 39.3 | 288 | 450 |
| 9100218500 | 2 x 185 | 44.7 | 355.2 | 580 |
| 9100224000 | 2 x 240 | 59 | 460.8 | 728 |
| 910030150 | 3 x 1.50 | 12.8 | 4.3 | 34.1 |
| 910030250 | 3 x 2.50 | 14.1 | 7.2 | 40.5 |
| 910030400 | 3 x 4 | 15.3 | 11.5 | 49.5 |
| 910030600 | 3 x 6 | 16.6 | 17.3 | 60 |
| 910031000 | 3 x 10 | 19.5 | 28.8 | 90 |
| 910031600 | 3 x 16 | 21.2 | 46.1 | 108 |
| 910032500 | 3 x 25 | 26.7 | 72 | 175 |
| 910033500 | 3 x 35 | 29.6 | 100.8 | 210 |
| 910035000 | 3 x 50 | 28.5 | 144 | 235 |
| 910037000 | 3 x 70 | 32.2 | 201.6 | 315 |
| 910039500 | 3 x 95 | 37 | 273.6 | 430 |
| 9100312000 | 3 x 120 | 40.4 | 345.6 | 525 |
| 9100315000 | 3 x 150 | 45.5 | 432 | 672 |
| 9100318500 | 3 x 185 | 49.8 | 532.8 | 804 |
| 9100324000 | 3 x 240 | 55.1 | 691.2 | 1015 |
| 9100330000 | 3 x 300 | 60.2 | 864 | 1232 |
| 9100340000 | 3 x 400 | 66.6 | 1152 | 1509 |
| 910040150 | 4 x 1.50 | 13.5 | 5.8 | 39 |
| 910040250 | 4 x 2.50 | 15 | 9.6 | 46.5 |
| 910040400 | 4 x 4 | 16.4 | 15.4 | 57.9 |
| 910040600 | 4 x 6 | 18.7 | 23 | 82 |
| 910041000 | 4 x 10 | 21.1 | 38.4 | 109 |
| 910041600 | 4 x 16 | 22.9 | 61.4 | 140 |
| 910042500 | 4 x 25 | 28.9 | 96 | 210 |
| 910043500 | 4 x 35 | 32.1 | 134.4 | 258 |
| 910045000 | 4 x 50 | 32 | 192 | 300 |
| 910047000 | 4 x 70 | 37.7 | 268.8 | 430 |
| 910049500 | 4 x 95 | 41.7 | 364.8 | 551 |
| 9100412000 | 4 x 120 | 47.1 | 460.8 | 715 |
| 9100415000 | 4 x 150 | 51.4 | 576 | 850 |
| 9100418500 | 4 x 185 | 56.6 | 740 | 1030 |
| 9100424000 | 4 x 240 | 63 | 921.6 | 1300 |
| 9100430000 | 4 x 300 | 68.8 | 1152 | 1575 |
| 9100440000 | 4 x 400 | 78.1 | 1536 | 2045 |
| 910050150 | 5 x 1.50 | 14.2 | 7.2 | 43.3 |
| 910050250 | 5 x 2.50 | 16 | 12 | 53 |
| 910050400 | 5 x 4 | 18.4 | 19.2 | 77.5 |
| 910050600 | 5 x 6 | 19.7 | 28.8 | 92.9 |
| 910051000 | 5 x 10 | 23.2 | 48 | 130 |
| 910051600 | 5 x 16 | 26.6 | 76.8 | 188 |
| 910052500 | 5 x 25 | 31.7 | 120 | 267 |
| 910053500 | 5 x 35 | 32.8 | 168 | 295 |
| 910055000 | 5 x 50 | 37.8 | 240 | 382.7 |
| 910057000 | 5 x 70 | 43 | 336 | 510 |
| 910059500 | 5 x 95 | 43.1 | 456 | 510.1 |
| 9100512000 | 5 x 120 | 48.8 | 576 | 733.3 |
| 9100515000 | 5 x 150 | 53.5 | 720 | 892 |
| 910070150 | 7 x 1.50 | 15.2 | 10.1 | 50.6 |
| 910070250 | 7 x 2.50 | 17.1 | 16.8 | 61.8 |
| 910070400 | 7 x 4 | 19.7 | 26.9 | 90.7 |
| 910070600 | 7 x 6 | 21.3 | 40.3 | 111 |
| 910071000 | 7 x 10 | 25.6 | 67.2 | 172 |
| 910071600 | 7 x 16 | 28.8 | 107.5 | 230 |
| 910120150 | 12 x 1.50 | 19.4 | 17.3 | 85.4 |
| 910120250 | 12 x 2.50 | 22.4 | 28.8 | 108 |
| 910120400 | 12 x 4 | 27.7 | 46.1 | 155 |
| 910190150 | 19 x 1.50 | 23.2 | 27.4 | 112 |
| 910190250 | 19 x 2.50 | 26.1 | 45.6 | 157 |
| 910190400 | 19 x 4 | 29.3 | 73 | 205 |
| 910270150 | 27 x 1.50 | 27.9 | 38.9 | 163 |
| 910270250 | 27 x 2.50 | 30.2 | 64.8 | 205 |
| 910270400 | 27 x 4 | 34.4 | 103.7 | 274 |
| 910370150 | 37 x 1.50 | 30.6 | 53.3 | 197 |
| 910370250 | 37 x 2.50 | 33.8 | 88.8 | 254 |
| 910480150 | 48 x 1.50 | 33.9 | 69.1 | 239 |
| 910480250 | 48 x 2.50 | 38.8 | 115.2 | 343 |
