For serial data transmission in the decentralized control system of buildings e.g. heating, ventilation, lighting, air-conditioning and closing systems. Here sensor signals or actor signals (e.g. the on en off from light or motors) are transmitted. This Bus-cable is suitable for installation in and under plaster and in suitable conduits
BUS CABLE
EIB / KNX
(European installation Bus)
SGD 0.00

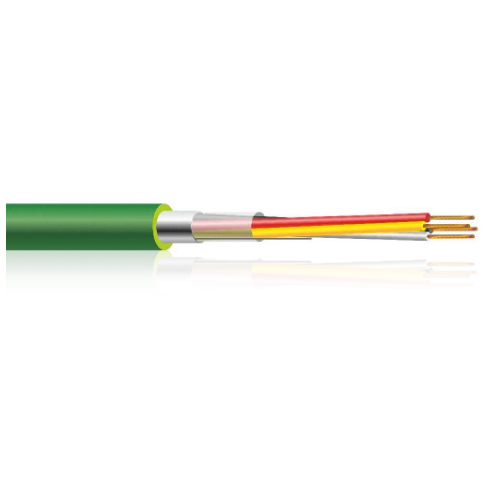

CONSTRUCTION:
- Outer sheath of PVC
- Core isolation of PVC
- Blank copper conductor, single-wired
- Cores: red, black, white, yellow
- Foil screen
- Wrapping of plastic film with drain wire
- UL-approved available
Technical Data:
| Conductor Material | Copper, bare |
| Conductor class | Class 1 |
| Core insulation | PVC |
| Core identification | cores: black, yellow, white, red (VDE 0815) |
| Stranding | Cores twisted in star quads |
| Outer sheath | PVC |
| Sheath colour | Green |
| Rated voltage [V] | 300 |
| Testing voltage [V] | 4000 |
| Conductor resistance | |
| Insulation resistance | ≥ 100 MΩ/km |
| Current carrying capacity | |
| Min. bending radius fixed [xd] | 8 x d |
| Min. bending radius moved [xd] | 15 x d |
| Working temp fixed min/max [C] | -30°C up to +70°C |
| Working temp moved min/mac [C] | -5°C up to +50°C |
| Temp at conductor max. | |
| Burning behaviour | VDE 0482-332-1-2/IEC 60332-1: flame-retardant and selfextinguishing |
| Approvals |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 10100100 | 2 x 2 x 0.8 mm | 0.800 mm | 0.800/1 |
