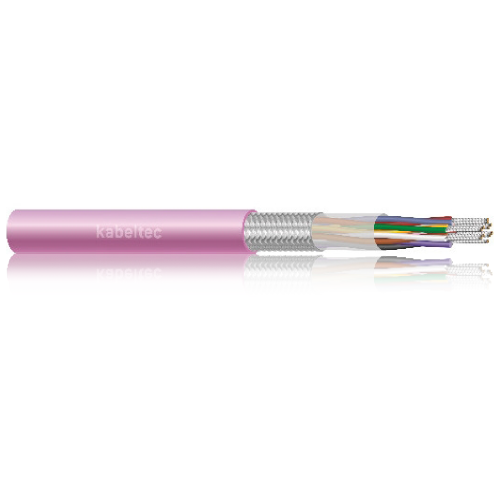

BUS-LD
[INDEX:20201001SQ]
CONSTRUCTION:
- Plain copper conductors
- Colour code according to DIN 47100
- Copper shielding braid
- Outer sheath PVC-based compound, violet (RAL 4001)
- UL-approved available
- Characteristics impendence: 120 Ohm
TECHNICAL DATA:
| Conductor Material | Copper, bare |
| Conductor class | |
| Core insulation | |
| Core identification | Colour code according to DIN 47100 |
| Stranding | 2 cores twisted into pairs and pairs into layers |
| Outer sheath | PVC |
| Sheath colour | Violet (RAL 4001) |
| Rated voltage [V] | 250 |
| Testing voltage [V] | core/core 1500 |
| Conductor resistance | (Loop): max. 186 Ω/km |
| Insulation resistance | |
| Current carrying capacity | |
| Min. bending radius fixed [xd] | 8 x d |
| Min. bending radius moved [xd] | |
| Working temp fixed min/max [C] | -40°C up to +80°C |
| Working temp moved min/mac [C] | -5°C up to +70°C |
| Temp at conductor max. | |
| Burning behaviour | IEC 60332-1-2: flame-retardant and self-extinguishing |
| Approvals | UL/CSA Typ CMX (UL 444) |
