Suitable for drag chains, excellent oil-, chemical- resistance, non-adhesive and flame-retardant. Suitable for Phoenix-Bus-Systems

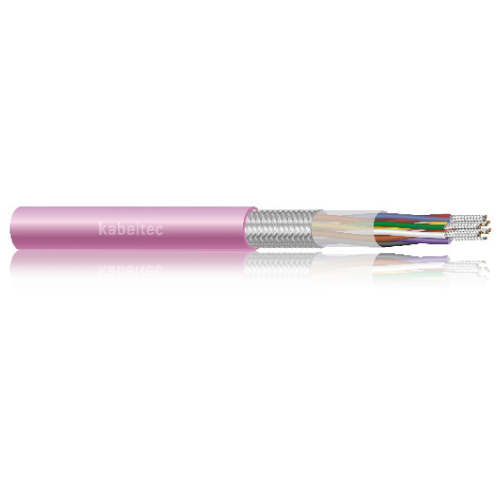

BUS-LD PUR
CONSTRUCTION:
- Tinned copper conductor
- Pairs colour code DIN 47100
- Cores paired
- Taped
- Screen tinned copper wires
- Core insulation of PETP
- Outer sheath of PUR violet (RAL 4001)
- Also available in UL approval
Technical Data:
| Conductor Material | Copper, bare |
| Conductor class | |
| Core insulation | PETP |
| Core identification | DIN 47100 |
| Stranding | Cores paired |
| Outer sheath | PUR |
| Sheath colour | Violet (RAL 4001) |
| Rated voltage [V] | 250 |
| Testing voltage [V] | core/core 1500 |
| Conductor resistance | (Loop) max. 159,8 Ωkm |
| Insulation resistance | |
| Current carrying capacity | |
| Min. bending radius fixed [xd] | 6 xd |
| Min. bending radius moved [xd] | 15 xd |
| Working temp fixed min/max [C] | -40°C up to +80°C |
| Working temp moved min/mac [C] | -30°C up to +70°C |
| Temp at conductor max. | |
| Burning behaviour | IEC 60332-1: flame-retardant and self-extinguishing |
| Approvals | Characteristic impedance 100-120 Ohm |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 20701025.00 | 1 x 2 x 0.25 | 6.00 | 1.80 | 4.80 |
| 20702025 | 2 x 2 x 0.25 | 6.20 | 2.80 | 5.50 |
| 207030025 | 3 x 2 x 0.25 high flex. | 8.50 | 4.27 | 8.30 |
| 207032501 | 3 x 2 x 0.25 + 3 x 1 high flex. | 9.00 | 7.65 | 9.50 |
