Device Net, a bus system developed by Allen Bradley (Rockwell Automation) connects industrial devices (e.g. limit switches, variable frequency drives, motor starters, valve islands, PLCs). The Device Net communication link is based on proven CAN technology.

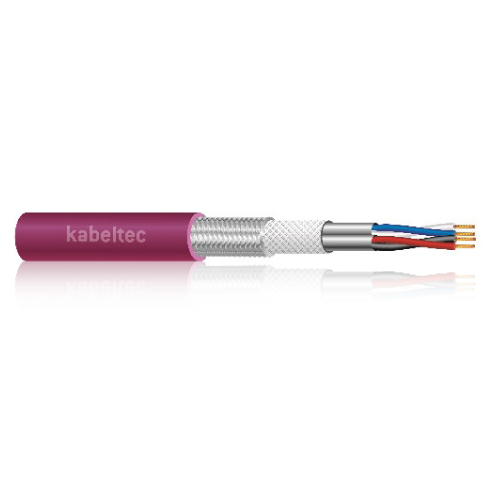

DEVICE NET THICK THIN FRNC
Fixed installation
CONSTRUCTION:
- Outer sheath: FRNC
- Core Insulation: Foam Skin
- Tinned copper braid with drain wire
- UV-resistant
Approvals: UL / CSA approved (CMG)
TECHNICAL DATA:
| Conductor Material | Copper, tinned |
| Conductor class | * |
| Core insulation | * |
| Core identification | * |
| Stranding | * |
| Outer sheath | FRNC |
| Sheath colour | Violett (RAL 4001) |
| Rated voltage [V] | 300 |
| Testing voltage [V] | |
| Conductor resistance | Thick (Schleife) 45 Ω / km Thin (Schleife) 180 Ω / km |
| Insulation resistance | 120 Ohm |
| Current carrying capacity | * |
| Min. bending radius fixed [xd] | 15 x d |
| Min. bending radius moved [xd] | |
| Working temp fixed min/max [C] | -25°C bis +80°C |
| Working temp moved min/mac [C] | |
| Temp at conductor max. | * |
| Burning behaviour | IEC 60332-1-2: flame-retardant |
| Approvals | CMG UL/CSA-certification 75°C oder PLTC, Sun Res |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 202170341.00 | 1 x 2 xAWG24 +1x2xAWG22 | 6.90 | 3.34 | 6.95 |
| 202170340 | 1 x 2 xAWG18 +1x2xAWG15 | 12.20 | 8.28 | 19.50 |
