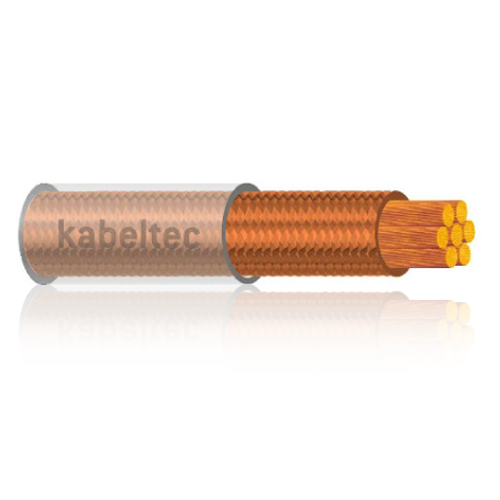

Earthing conductor with fine stranded copper-conductor for use in mobile earthing and shortening devices, specially for the protection of personnel during services in power installations.
ESY
Earthing conductor
CONSTRUCTION:
– Bare copper stranded, class 6/7
– insulation PVC
Technical Data:
| Conductor Material: | Copper, Bare |
| Conductor class: | Class 6/7 |
| Core insulation: | |
| Core identification: | |
| Stranding: | Cu-Litze verseilt |
| Outer sheath: PVC | |
| Sheath colour: | Transparent |
| Rated voltage [V]: | |
| Testing voltage [V]: | max 5000 |
| Conductor resistance: | |
| Insulation resistance: | min. 20 MΩ x km |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | |
| Min. bending radius moved [xd]: | |
| Working temp fixed min/max [C]: | -5°C up to +70°C |
| Working temp moved min/max [C]: | -5°C up to +70°C |
| Temp at conductor max.: | |
| Burning behaviour: | |
| Approvals: | Similar to VDE 0283-3, 6082/0683 bzw. EN 61138 und DIN 46438 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 355000250.00 | 1 x 2.50 | 3.80 | 2.50 | 0.00 |
| 355000400.00 | 1 x 4 | 4.90 | 4.00 | 0.00 |
| 355000600.00 | 1 x 6 | 6.00 | 6.00 | 0.00 |
| 355001000.00 | 1 x 10 | 7.30 | 10.00 | 0.00 |
| 355001600.00 | 1 x 16 | 8.80 | 16.00 | 0.00 |
| 355002500.00 | 1 x 25 | 10.50 | 25.00 | 0.00 |
| 355005000.00 | 1 x 50 | 14.20 | 50.00 | 0.00 |
| 355007000.00 | 1 x 70 | 16.80 | 67.20 | 81.00 |
| 355009500.00 | 1 x 95 | 19.00 | 95.00 | 0.00 |
| 3550012000.00 | 1 x 120 | 21.50 | 120.00 | 0.00 |
