Suitable in switch cabinets with high heat development for wiring and connection, in furnaces, in heating devices, etc.

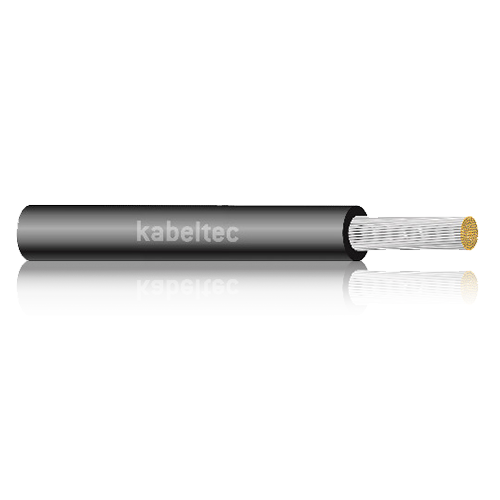

FEP-Single Core
CONSTRUCTION:
- Fine strands of tinned copper conductor
- Insulating jacket made of plastic FEP
- Flame-retardant, oil-resistant and resistant to chemicals
TECHNICAL DATA:
| Conductor Material | Copper, tinned |
| Conductor class | Class 5 |
| Core insulation | FEP |
| Core identification | * |
| Stranding | * |
| Outer sheath | * |
| Sheath colour | * |
| Rated voltage [V] | 300 / 500 |
| Testing voltage [V] | 2500 |
| Conductor resistance | * |
| Insulation resistance | > 2 GΩ x km |
| Current carrying capacity | * |
| Min. bending radius fixed [xd] | * |
| Min. bending radius moved [xd] | 10 |
| Working temp fixed min/max [C] | -100°C up to +205 |
| Working temp moved min/mac [C] | -100°C up to +205 |
| Temp at conductor max | * |
| Burning behaviour | IEC 60332-1 |
| Approvals | * |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 52..0014 | 1 x 0.14 | 1.00 | 0.14 | 0.26 |
| 52..0025 | 1 x 0.25 | 1.16 | 0.24 | 0.40 |
| 52..0050 | 1 x 0.50 | 1.44 | 0.48 | 0.68 |
| 52..0075 | 1 x 0.75 | 1.76 | 0.72 | 1.10 |
| 52..0100 | 1 x 1 | 1.94 | 0.96 | 1.30 |
| 52..0150 | 1 x 1.50 | 2.20 | 1.44 | 1.80 |
| 52..0250 | 1 x 2.50 | 2.74 | 2.40 | 2.95 |
| 52..0400 | 1 x 4 | 3.30 | 4.50 | 3.80 |
| 52..0600 | 1 x 6 | 4.10 | 5.80 | 6.80 |
| 52..1000 | 1 x 10 | 5.45 | 9.60 | 11.10 |
| 52..1600 | 1 x 16 | 6.70 | 15.40 | 17.50 |
