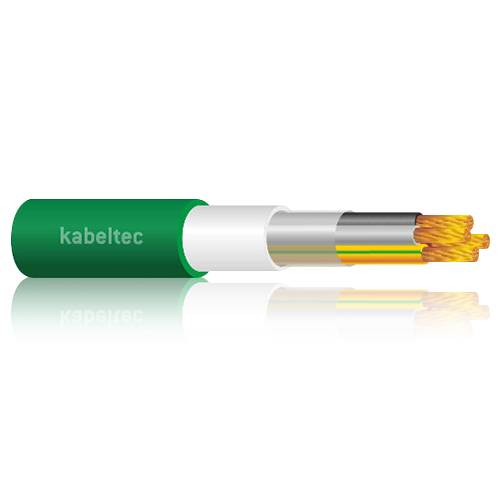

FG16M16_FG16OM 16 0.61_kV (Formerly FG7M1_FG7OM1)

FG16M16/FG16OM 16 0.61/kV (Formerly FG7M1/FG7OM1)

Power and control cable
TOTAL PRICE

SGD 0.00

Power and control use outdoor and indoor applications, even wet. Suitable for fixed installations at open air, in tube or canals, masonry, metals structures, overhead wire and for direct or indirect underground wiring. The more important property of this kind of cable is its protection against smokes, toxic and corrosive gases in case of fire.

  • Flexible conductor, class 5 copper made.
  • Not fibrous and not hygroscopic filler
  • HEPR insulation G16
  • Thermoplastic sheath M16
  • Halogen-free
  • CPR fire class Cca-s1b,d1,a1

TECHNICAL DATA:

Conductor Material:  Copper, bare
Conductor class:  Class 5
Core insulation:  HEPR insulation in G7 quality
Core identification: 1-core: black
2-core: blue, brown
3-core: brown, black, grey
4-core: blue, brown, black, grey
5-core: blue, brown, black, grey, black
7 and more: white with black digital printing
Stranding: *
Outer sheath: Thermoplastic sheath in M16 quality, halogen-free
Sheath colour:  green
Rated voltage [V]:  600 / 1000
Testing voltage [V]:  4000
Conductor resistance: *
Insulation resistance: *
Current carrying capacity: *
Min. bending radius fixed [xd]:  6 x d
Min. bending radius moved [xd]: *
Working temp fixed min/max [C]:  -15°C to +90°C
Working temp moved min/mac [C]:  -15°C to +90°C
Temp at conductor max.:  90°C
Burning behaviour:  Flame-retardant: IEC 60332-1-2, IEC 60332-3-24
 Smoke density: IEC 61034-2: light transmittance values > 70%
 Gases evolved during combustion: IEC 60754-1, IEC
 60754-2, DIN EN 50267-2-2:pH > 4.3; conductivity < 100   us/cm
Approvals: Standards:
CEI 20-13 CEI 20-38 pqa IEC 60502-1
CEI UNEL 35322- 35328-35016
EN50575:2014+ EN 50575/A1:2016

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
1 x 10 10.9 14.8
1 x 16 11.4 20.6
1 x 25 13.2 29.5
1 x 35 14.6 38.9
1 x 50 16.4 54.2
1 x 70 18.3 73.9
1 x 95 20.4 96.4
1 x 120 22.4 118.9
1 x 150 24.8 148.4
1 x 185 27 178
1 x 240 30.2 231.9
1 x 300 33 287.7
1 x 400 37.7 382.2
2 x 1.50 12 12.7
2 x 2.50 13 15.8
2 x 4 14.2 20.8
2 x 6 15.4 25.8
2 x 10 17.3 38.5
2 x 16 19.4 56.5
2 x 25 23 79.3
2 x 35 25.7 103.7
2 x 50 29.3 144.7
2 x 70 33.1 222.4
2 x 95 37.4 284.8
2 x 120 41.5 359.9
2 x 150 46.1 393.9
3 x 1.50 12.5 14.3
3 x 2.50 13.6 18.3
3 x 4 14.9 24.4
3 x 6 16.2 31.4
3 x 10 18.2 49.3
3 x 16 20.6 67.8
3 x 25 24.5 97.7
3 x 35 27.3 135.4
3 x 35 + 1x25 29.2 158.9
3 x 50 31.2 191.8
3 x 50 + 1x25 32.4 211.6
3 x 70 35.6 262.4
3 x 70 + 1x35 37 297.5
3 x 95 40 341.8
3 x 95 + 1x50 42 397.1
3 x 120 44.4 432.6
3 x 120 + 1x70 46.9 521.9
3 x 150 49.5 534.8
3 x 150 + 1x95 52.5 651.1
3 x 185 55.2 661.1
3 x 185 + 1x95 57.3 766.9
3 x 240 61.9 861.3
3 x 240 + 1x150 65.5 1027.9
4 x 1.50 13.4 16.7
4 x 2.50 14.6 22.1
4 x 4 16 29.3
4 x 6 17.5 38.7
4 x 10 19.8 59.9
4 x 16 22.4 87.1
4 x 25 26.8 123.9
5 x 1.50 14.4 19.7
5 x 2.50 15.6 26.2
5 x 4 17.3 36.1
5 x 6 18.9 47.6
5 x 10 21.5 75.6
5 x 16 24.4 111.9
5 x 25 29.3 159.7
5 x 35 32.8 217.5
5 x 50 38.2 305.3
5 x 70 44.58 437.4
5 x 95 49.28 569.6
7 x 1.50 15.4 26.1
10 x 1.50 18.7 34.4
10 x 2.50 20.8 46.3
12 x 1.50 19.3 39.3
12 x 2.50 21.3 53.7
1 x 10 10.9 14.8
1 x 16 11.4 20.6
1 x 25 13.2 29.5
1 x 35 14.6 38.9
1 x 50 16.4 54.2
1 x 70 18.3 73.9
1 x 95 20.4 96.4
1 x 120 22.4 118.9
1 x 150 24.8 148.4
1 x 185 27 178
1 x 240 30.2 231.9
1 x 300 33 287.7
1 x 400 37.7 382.2
2 x 1.50 12 12.7
2 x 2.50 13 15.8
2 x 4 14.2 20.8
2 x 6 15.4 25.8
2 x 10 17.3 38.5
2 x 16 19.4 56.5
2 x 25 23 79.3
2 x 35 25.7 103.7
2 x 50 29.3 144.7
2 x 70 33.1 222.4
2 x 95 37.4 284.8
2 x 120 41.5 359.9
2 x 150 46.1 393.9
3 x 1.50 12.5 14.3
3 x 2.50 13.6 18.3
3 x 4 14.9 24.4
3 x 6 16.2 31.4
3 x 10 18.2 49.3
3 x 16 20.6 67.8
3 x 25 24.5 97.7
3 x 35 27.3 135.4
3 x 35 + 1x25 29.2 158.9
3 x 50 31.2 191.8
3 x 50 + 1x25 32.4 211.6
3 x 70 35.6 262.4
3 x 70 + 1x35 37 297.5
3 x 95 40 341.8
3 x 95 + 1x50 42 397.1
3 x 120 44.4 432.6
3 x 120 + 1x70 46.9 521.9
3 x 150 49.5 534.8
3 x 150 + 1x95 52.5 651.1
3 x 185 55.2 661.1
3 x 185 + 1x95 57.3 766.9
3 x 240 61.9 861.3
3 x 240 + 1x150 65.5 1027.9
4 x 1.50 13.4 16.7
4 x 2.50 14.6 22.1
4 x 4 16 29.3
4 x 6 17.5 38.7
4 x 10 19.8 59.9
4 x 16 22.4 87.1
4 x 25 26.8 123.9
5 x 1.50 14.4 19.7
5 x 2.50 15.6 26.2
5 x 4 17.3 36.1
5 x 6 18.9 47.6
5 x 10 21.5 75.6
5 x 16 24.4 111.9
5 x 25 29.3 159.7
5 x 35 32.8 217.5
5 x 50 38.2 305.3
5 x 70 44.58 437.4
5 x 95 49.28 569.6
7 x 1.50 15.4 26.1
10 x 1.50 18.7 34.4
10 x 2.50 20.8 46.3
12 x 1.50 19.3 39.3
12 x 2.50 21.3 53.7
