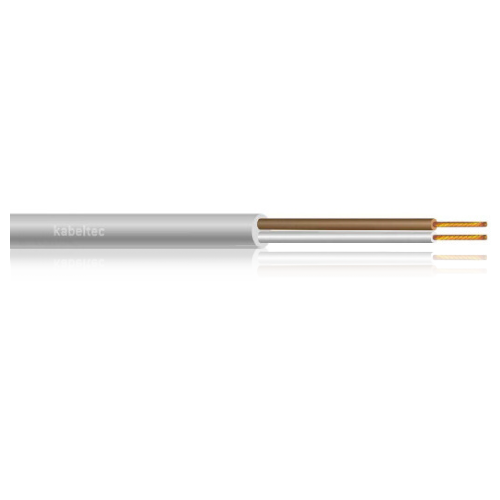

FIREFIT-LIHH---TP-FE180_PH-90-(Class-1) (1)

FIREFIT LIHH- TP FE180PH 90 (Class 1)
TOTAL PRICE

SGD 0.00

In covered places where people are densely found:

  • Instrumentation and control engineering
  • Industrial electronics
  • For signal transmission
  • Intercommunication systems in buildings
  • In safety and fire alarm systems
  • In places where human life and valuable materials and equipment need to be protected

CONSTRUCTION:

  • Flame retardant characteristic
  • Low smoke emission
  • Without poisoned and corrosive gases
  • Fire resistant halogen free cables (VDE 0812)
  • Sheath: EN 50290-2-27 HFFR compound
  • Colour code: DIN 47100
  • Temperature range: -30°C up to +80°C

Technical Data:

Conductor Material IEC 60228, DIN VDE 0295, EN 60228 Class 1 electrolytic bare copper
Conductor class Class 1
Core insulation cross linked ceramic forming polymer compound
Core identification *
Stranding In layers of optimum pitch
Outer sheath *
Sheath colour RAL 9003 white
Rated voltage [V] 300 / 500
Testing voltage [V] 2000
Conductor resistance *
Insulation resistance *
Current carrying capacity *
Min. bending radius fixed [xd] 7.5 x d
Min. bending radius moved [xd] *
Working temp fixed min/max [C] -30°C up to +80°C
Working temp moved min/mac [C] -5°C up to +70°C
Temp at conductor max. *
Burning behaviour *
Approvals – Insulation Integrity for minimum 180 minutes (FE 180)
– Insulation Integrity with mechanical shock (PH 90)
– Flame Retardant Test: IEC 60332-1-2, VDE0482-332-1-2, EN 60332-1-2
– Flame propagation: IEC 60332-3-24, VDE0482-332-3-24, EN 60332-3-24
– Smoke density: IEC 61034-2, VDE 0482-1034-2, EN61034-2
– Corrosive Gas test: IEC 60754-2, VDE 0482-267-2-3, EN50267-2-3
– Halogen free test: IEC 60754-1, VDE 0482-267-2-1, EN50267-2-1
– Circuit Integrity (FE 180): IEC 60331-23
– Circuit Integrity with shock (PH 90): EN 50200, VDE0482-200, BS EN 50200

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
888010100.00 1 x 2 x1 5.3 - 0.5 0.00 5.10
