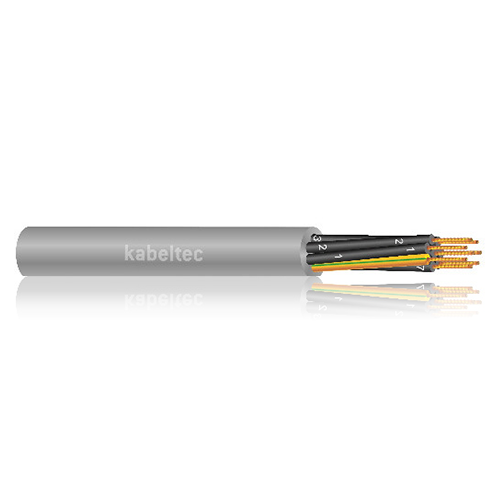

FLEX-H

FLEX-H

Halogen-free control cable
TOTAL PRICE

SGD 0.00

Halogen-free, flame-retardant power control cable with improved properties in case of fire. Suitable for fixed or flexible applications. Suitable for use as energy, power, control, or connecting cable to meet stringent safety requirements. Installation in dry and moist room, also suitable for limited external application.
Pronounced advantages in comparance to a PVC control cable (e.g. Flex-JZ):

  • Low fire load
  • Low smoke emission
  • Reduced fire propagation

CONSTRUCTION:

  • Cores black with continuous white figure imprint
  • Core insulation: halogen-free compound
  • Stranding acc. to VDE 0295 class 5
  • Fine strands of bare copper conductor
  • Earth conductor green/yellow
  • Cores twisted in layers
  • Outer sheath halogen-free compound grey, RAL 7001, largely UV resistant

Tests:

  • Halogen-free according to DIN VDE 0472 part 815
  • Behaviour in fire no flame propagation, test method to DIN VDE 0472 part 804 test method C, IEC 332-3 and HD 405.3 and as well as flame retardant and self extinguishing to IEC 332-1 and DIN VDE 0472 part 804 test method B
  • Corrosiveness of combustion gases (freedom from Halogen) test method to VDE 0472 part 813, IEC 754-2, HD 602 and 606
  • Burning behaviour according to VDE 0472 part 816 test method C, IEC 1034-1/1034-2, HD 606 and BS 7622 part 1 and 2



Technical Data:

Conductor Material Copper, bare
Conductor class Class 5 according VDE 0295 resp IEC 60228
Core insulation Halogen-free compound
Core identification Acc. to DIN VDE 0293: Black cores with consecutive white numerals
Stranding Cores twisted in layers
Outer sheath Halogen-free compound
Sheath colour Grey (RAL 7001)
Rated voltage [V] 300 / 500
Testing voltage [V] 3000
Conductor resistance
Insulation resistance min. 20 MΩ x km
Current carrying capacity DIN VDE (see. technical guidelines)
Min. bending radius fixed [xd] 5 x d
Min. bending radius moved [xd] 10 x d
Working temp fixed min/max [C] -40°C up to +80°C
Working temp moved min/mac [C] -15°C up to +70°C
Temp at conductor max.
Burning behaviour VDE 0482-332-1-1: halogen-free and highly flameretardant; IEC 60332-1-3
Approvals Halogen-free acc. to IEC 60754-1
Corrosivity acc. to IEC 60754-2
EN 60754-2
EN 60332-1-2
EN 61034-2

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
100020050.00 2 x 0.50 OZ 5.30 0.96 3.80
100020075.00 2 x 0.75 OZ 5.40 1.44 4.35
100020100.00 2 x 1 OZ 5.70 1.92 5.04
100020150.00 2 x 1.50 OZ 6.50 2.90 6.70
100020250.00 2 x 2.50 OZ 8.10 4.80 10.60
100020400.00 2 x 4 OZ 9.90 7.68 18.50
100020600.00 2 x 6 10.80 11.52 23.40
100021000.00 2 x 10 12.80 19.20 35.30
100030050.00 3 x 0.50 5.60 1.44 4.70
100030075.00 3 x 0.75 5.90 2.16 5.50
100030100.00 3 x 1 6.20 2.90 6.30
100030150.00 3 x 1.50 6.80 4.30 8.20
100030250.00 3 x 2.50 8.50 7.30 13.20
100030400.00 3 x 4 10.20 11.60 20.20
100033500.00 3 x 35 26.80 100.80 147.30
100035000.00 3 x 50 30.00 144.00 265.00
100037000.00 3 x 70 33.70 201.60 328.00
100039500.00 3 x 95 40.50 273.60 480.00
1000312000.00 3 x 120 44.00 345.60 540.00
100040050.00 4 x 0.50 6.00 1.92 5.70
100040075.00 4 x 0.75 6.40 2.90 6.70
100040100.00 4 x 1 6.90 3.80 8.00
100040150.00 4 x 1.50 7.60 5.80 10.80
100040250.00 4 x 2.50 9.40 9.60 17.00
100040400.00 4 x 4 11.20 15.40 25.80
100040600.00 4 x 6 13.10 23.10 37.50
100041000.00 4 x 10 16.60 38.40 59.80
100041600.00 4 x 16 20.90 61.60 93.00
100043500.00 4 x 35 28.40 132.10 204.20
100045000.00 4 x 50 34.20 193.20 278.40
100047000.00 4 x 70 40.60 268.40 412.30
100049500.00 4 x 95 45.50 364.00 546.60
1000412000.00 4 x 120 49.90 459.40 705.30
100050050.00 5 x 0.50 6.60 2.40 6.60
100050075.00 5 x 0.75 7.10 3.60 8.30
100050100.00 5 x 1 7.60 4.80 9.90
100050150.00 5 x 1.50 8.40 7.20 12.60
100050250.00 5 x 2.50 10.40 12.10 20.50
100050400.00 5 x 4 12.50 19.20 32.30
100050600.00 5 x 6 14.50 28.80 46.80
100051000.00 5 x 10 18.90 0.00 47.60
100051600.00 5 x 16 22.60 76.00 111.80
100052500.00 5 x 25 26.40 120.00 206.00
100053500.00 5 x 35 32.10 168.00 256.00
100055000.00 5 x 50 37.60 241.30 385.20
100057000.00 5 x 70 45.40 337.20 496.30
100059500.00 5 x 95 51.00 454.20 668.10
100070050.00 7 x 0.50 7.20 3.40 8.50
100070075.00 7 x 0.75 7.70 5.04 10.02
100070100.00 7 x 1 8.50 6.72 12.70
100070150.00 7 x 1.50 9.20 10.20 16.20
100070250.00 7 x 2.50 11.60 16.80 26.60
100120050.00 12 x 0.50 9.60 5.80 13.50
100120075.00 12 x 0.75 10.30 8.60 17.60
100120100.00 12 x 1 11.30 11.60 21.50
100120150.00 12 x 1.50 12.40 17.40 28.00
100120250.00 12 x 2.50 15.60 28.80 46.40
100160250.00 16 x 2.50 17.60 38.40 57.90
100180050.00 18 x 0.50 11.50 8.64 21.00
100180075.00 18 x 0.75 12.30 13.00 25.40
100180100.00 18 x 1 13.20 17.40 31.00
100180150.00 18 x 1.50 14.70 25.90 40.20
100180250.00 18 x 2.50 18.40 43.20 67.60
100250050.00 25 x 0.50 13.40 12.20 28.70
100250075.00 25 x 0.75 14.60 18.00 35.50
100250100.00 25 x 1 15.40 24.10 42.70
100250150.00 25 x 1.50 17.30 36.10 58.90
100410100.00 41 x 1 20.20 40.32 70.80
