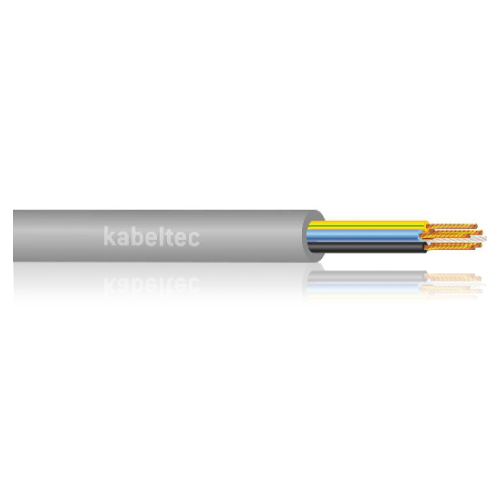

FLEX-JB/OB

Flexible control cable, colour coded
TOTAL PRICE

SGD 0.00

APPLICATION

Used as connecting cable, as measuring, power and control cable in machine tool manufacturing, plant engineering, on assembly lines and production lines to meet stringent safety requirements. Suitable for fixed installation or flexible applications with unrestricted mobility without forced movement control and without exposure to tensile load. Installation in dry and moist rooms; outdoor installation not permitted. Good chemical resistance, largely oil resistant. In energy supply chains for process paths up to 5m and 0.2 … 1 million bending cycles, for the following dimensions: 0.5 to 2.5mm² and 2 to 7 cores

CONSTRUCTION:

  • Fine strands of bare copper conductor
  • Stranding acc. to VDE 0295 class 5
  • PVC core insulation, coloured cores acc. to JB/OB colour code
  • Earth conductor green/yellow in outer layer
  • PVC outher sheath grey, RAL 7001

TECHNICAL DATA:

Conductor Material: Copper, bare
Conductor class: Class 5, DIN VDE 0295 class 5, respectively IEC 60228 cl. 5
Core insulation: PVC
Core identification:
Up to 5 cores according to DIN VDE 0293-308 coloured cores, from 6 cores Kabeltec-colour code
Stranding: Cores stranded in layers
Outer sheath: PVC
Sheath colour: Grey, RAL 7001
Rated voltage [V]: 300 / 500
Testing voltage [V]: 4000
Conductor resistance:
Insulation resistance: 20 MΩ x km
Current carrying capacity: acc. to DIN VDE
Min. bending radius fixed [xd]: 4 x d
Min. bending radius moved [xd]: 15 x d
Working temp fixed min/max [C]: -40°C up to +80°C
Working temp moved min/mac [C]: -15°C up to +70°C
Temp at conductor max.: + 70°C in operation, +150°C in case of short-circuit
Burning behaviour: IEC 60332-1: flame-retardant and self-extinguishing
Approvals: IEC 60227-5 und EN 50525-2-11

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
11020050.00 2 x 0.50 OB 4.80 0.96 3.50
11020075.00 2 x 0.75 OB 5.40 1.44 4.50
11020100.00 2 x 1 OB 5.70 1.92 5.30
11020150.00 2 x 1.50 6.30 2.90 6.80
11020250.00 2 x 2.50 OB 7.50 4.80 10.10
11020400.00 2 x 4 OB 9.50 7.68 18.70
11030050.00 3 x 0.50 5.10 1.44 4.20
98030050.00 3 x 0.50 OB 5.10 1.44 4.20
11030075.00 3 x 0.75 5.70 2.16 5.50
98030075.00 3 x 0.75 OB 5.70 2.16 5.50
11030100.00 3 x 1 6.00 2.90 6.50
98030100.00 3 x 1 OB 6.00 2.90 6.50
11030150.00 3 x 1.50 6.70 4.30 8.40
98030150.00 3 x 1.50 OB 6.70 4.30 8.40
11030250.00 3 x 2.50 8.10 7.20 13.20
98030250.00 3 x 2.50 OB 8.10 7.20 13.20
11030400.00 3 x 4 9.90 11.52 20.10
11030600.00 3 x 6 11.70 17.30 28.90
11031000.00 3 x 10 15.80 28.80 68.20
11031600.00 3 x 16 19.00 46.00 91.20
11032500.00 3 x 25 23.30 72.00 138.80
11033500.00 3 x 35 26.60 100.80 176.60
11035000.00 3 x 50 31.00 144.00 255.60
11037000.00 3 x 70 36.00 201.60 286.00
11039500.00 3 x 95 41.20 273.60 421.00
110312000.00 3 x 120 46.80 345.60 520.00
11040050.00 4 x 0.50 5.70 1.92 5.40
98040050.00 4 x 0.50 OB 5.70 1.92 5.40
11040075.00 4 x 0.75 6.20 2.88 6.60
98040075.00 4 x 0.75 OB 6.20 2.88 6.60
11040100.00 4 x 1 6.50 3.84 7.90
98040100.00 4 x 1 OB 6.50 3.84 7.90
11040150.00 4 x 1.50 7.20 5.80 10.40
98040150.00 4 x 1.50 OB 7.20 5.80 10.40
11040250.00 4 x 2.50 8.90 9.60 16.30
98040250.00 4 x 2.50 OB 8.90 9.60 16.30
11040400.00 4 x 4 10.80 15.40 24.90
11040600.00 4 x 6 13.00 23.00 36.50
11041000.00 4 x 10 16.70 38.40 73.70
11041600.00 4 x 16 21.30 61.40 108.70
11042500.00 4 x 25 26.80 96.00 158.20
11043500.00 4 x 35 30.00 134.40 210.60
11045000.00 4 x 50 36.30 192.00 244.30
11047000.00 4 x 70 41.00 268.80 405.00
11049500.00 4 x 95 46.40 364.80 562.60
110412000.00 4 x 120 53.70 460.80 699.40
11050050.00 5 x 0.50 6.20 2.40 6.30
98050050.00 5 x 0.50 OB 6.20 2.40 6.30
11050075.00 5 x 0.75 6.70 3.60 7.90
98050075.00 5 x 0.75 OB 6.70 3.60 7.90
11050100.00 5 x 1 7.10 4.80 9.40
98050100.00 5 x 1 OB 7.10 4.80 9.40
11050150.00 5 x 1.50 8.10 7.20 12.80
98050150.00 5 x 1.50 OB 8.10 7.20 12.80
11050250.00 5 x 2.50 10.40 12.00 26.30
98050250.00 5 x 2.50 OB 10.40 10.40 26.30
11050400.00 5 x 4 12.10 19.20 29.40
11050600.00 5 x 6 14.50 28.80 28.80
11051000.00 5 x 10 18.80 48.00 91.40
11051600.00 5 x 16 24.00 76.80 137.00
11052500.00 5 x 25 30.00 120.00 199.80
11053500.00 5 x 35 33.50 168.00 248.50
11055000.00 5 x 50 38.60 240.00 393.60
11057000.00 5 x 70 45.10 336.00 482.00
11059500.00 5 x 95 52.50 456.00 580.00
11070050.00 7 x 0.50 7.00 3.36 8.10
98070050.00 7 x 0.50 OB 7.00 3.36 8.10
11070075.00 7 x 0.75 7.80 5.00 10.10
98070075.00 7 x 0.75 OB 7.80 5.00 10.10
11070100.00 7 x 1 8.50 6.70 12.60
98070100.00 7 x 1 OB 8.50 6.70 12.60
11070150.00 7 x 1.50 9.60 10.10 16.60
98070150.00 7 x 1.50 OB 9.60 10.10 16.60
11070250.00 7 x 2.50 11.70 16.80 26.70
98070250.00 7 x 2.50 OB 11.70 16.80 26.70
11070400.00 7 x 4 13.80 26.90 40.70
11070600.00 7 x 6 16.60 40.30 60.00
11071000.00 7 x 10 21.00 67.20 108.20
11071600.00 7 x 16 26.00 107.50 144.20
11080100.00 8 x 1 9.50 7.70 14.90
11080150.00 8 x 1.50 10.60 11.50 21.00
11090075.00 9 x 0.75 9.40 6.50 13.70
11090100.00 9 x 1 10.00 8.60 16.40
11100075.00 10 x 0.75 9.60 7.20 15.00
11100100.00 10 x 1 10.20 9.60 18.00
11110400.00 11 x 4 17.60 42.20 63.40
11120050.00 12 x 0.50 8.90 5.80 13.10
11120075.00 12 x 0.75 9.90 8.60 17.10
11120100.00 12 x 1 10.50 11.50 20.50
11120150.00 12 x 1.50 12.00 17.30 27.90
11140050.00 14 x 0.50 9.50 6.70 15.30
11140100.00 14 x 1 11.20 13.40 23.80
11140150.00 14 x 1.50 12.70 20.20 32.30
11150075.00 15 x 0.75 10.90 10.80 20.90
11160075.00 16 x 0.75 11.10 11.50 22.00
11160100.00 16 x 1 11.80 15.40 26.60
11160150.00 16 x 1.50 13.40 23.00 36.10
11180075.00 18 x 0.75 11.70 13.00 24.40
11180100.00 18 x 1 12.70 17.30 32.00
11180150.00 18 x 1.50 14.40 25.90 40.70
11200100.00 20 x 1 13.40 19.20 33.00
11200150.00 20 x 1.50 17.00 28.80 56.30
11210050.00 21 x 0.50 11.70 10.10 22.10
11210075.00 21 x 0.75 13.00 15.10 28.60
11250075.00 25 x 0.75 13.80 18.00 33.70
11250100.00 25 x 1 14.70 24.00 40.80
11250150.00 25 x 1.50 16.90 36.00 56.00
11250250.00 25 x 2.50 20.80 60.00 89.00
11300050.00 30 x 0.50 13.30 14.40 30.40
11320150.00 32 x 1.50 18.70 46.10 70.40
11340100.00 34 x 1 17.10 32.60 55.10
11340075.00 34 x 0.75 15.90 24.50 44.80
11340150.00 34 x 1.50 19.40 49.00 74.60
11350050.00 35 x 0.50 14.50 16.80 35.60
11400050.00 40 x 0.50 15.40 19.20 40.00
11410100.00 41 x 1 18.80 39.40 66.10
11410075.00 41 x 0.75 17.40 29.60 53.80
11500075.00 50 x 0.75 19.20 36.00 64.80
11500100.00 50 x 1 20.60 48.00 79.70
11500250.00 50 x 2.50 34.00 120.00 204.00
11520050.00 52 x 0.50 17.30 25.00 51.70
11560100.00 56 x 1 21.40 53.80 88.80
11560150.00 56 x 1.50 27.10 80.70 140.00
11610050.00 61 x 0.50 19.80 29.30 61.00
11610075.00 61 x 0.75 21.90 43.90 90.40
11610100.00 61 x 1 26.00 58.60 107.00
11610150.00 61 x 1.50 28.00 87.80 152.00
11610250.00 61 x 2.50 36.20 146.40 242.80
11800050.00 80 x 0.50 22.00 38.40 79.10
11800075.00 80 x 0.75 26.80 57.60 112.00
11800100.00 80 x 1 31.50 78.60 144.60
11800150.00 80 x 1.50 33.50 115.20 193.50
11900150.00 90 x 1.50 35.00 129.60 223.00
111000050.00 100 x 0.50 OB 24.50 48.00 98.60
111000075.00 100 x 0.75 31.00 71.80 139.00
111000100.00 100 x 1 36.00 96.00 183.20
111000150.00 100 x 1.50 37.50 144.00 246.00
