Wire and Cable

Category:

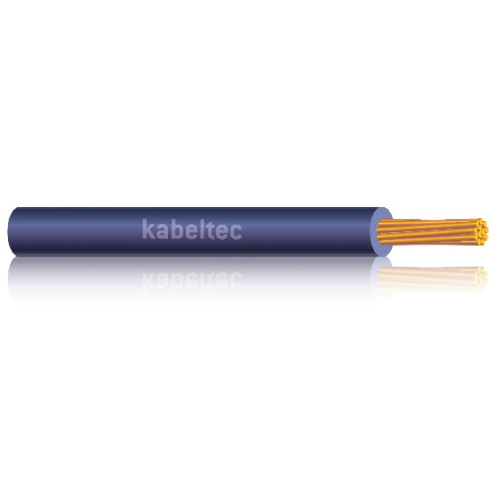

FLRY

FLRY
TOTAL PRICE

SGD 0.00

CONSTRUCTION:

  • Copper bare according to EN 13602
  • PVC according to ISO 6722 Class B
  • Embossing
  • Resistance to oil and fuel: ISO6722
  • Temperature class: B- 105°C acc. to ISO 6722
  • Self-extinguishing
  • Operating voltage: 60V

CONSTRUCTION:

  • Copper bare according to EN 13602
  • PVC according to ISO 6722 Class B
  • Embossing
  • Resistance to oil and fuel: ISO6722
  • Temperature class: B- 105°C acc. to ISO 6722
  • Self-extinguishing
  • Operating voltage: 60V

Technical Data:

Conductor Material:
Conductor class: Class B
Core insulation:
Core identification:
Stranding:
Outer sheath:
Sheath colour:
Rated voltage [V]:
Testing voltage [V]: 1000
Conductor resistance:
Insulation resistance:
Current carrying capacity:
Min. bending radius fixed [xd]:
Min. bending radius moved [xd]:
Working temp fixed min/max [C]: -40°C up to +105°C
Working temp moved min/max [C]:  40°C up to +105°C
Temp at conductor max.:
Burning behaviour:
Approvals:

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
3511...35 A 1 x 0.35 Typ-A 1.25 0.35 0.45
3511...35 B 1 x 0.35 Typ-B 1.30 0.35 0.48
3511...50 B 1 x 0.50 Typ-B 1.50 0.48 0.66
3511...50 A 1 x 0.50 Typ-A 1.50 0.48 0.60
3511...75 A 1 x 0.75 Typ-A 1.80 0.72 0.90
3511...75 B 1 x 0.75 Typ-B 1.80 0.72 0.89
3511...100 A 1 x 1 Typ-A 2.00 0.96 1.10
3511...100 B 1 x 1 Typ-B 2.00 0.96 1.16
3511...150 B 1 x 1.50 Typ-B 2.30 1.44 1.63
3511...150 A 1 x 1.50 Typ-A 2.30 1.44 1.60
3511...250 B 1 x 2.50 Typ-B 2.85 2.40 2.68
3511...250 A 1 x 2.50 Typ-A 2.85 2.40 2.60
3511...400 B 1 x 4 Typ-B 3.55 3.80 4.20
3511...600 B 1 x 6 Typ-B 4.15 5.80 6.10
3511...1000 B 1 x 10 Typ-B 5.70 9.60 10.80
