Suitable for use in areas with high surrounding temperatures as high-voltage resistant connecting cable for automotive ignition systems, oil burner ignition systems, electric motors, air conditioning technology, etc.

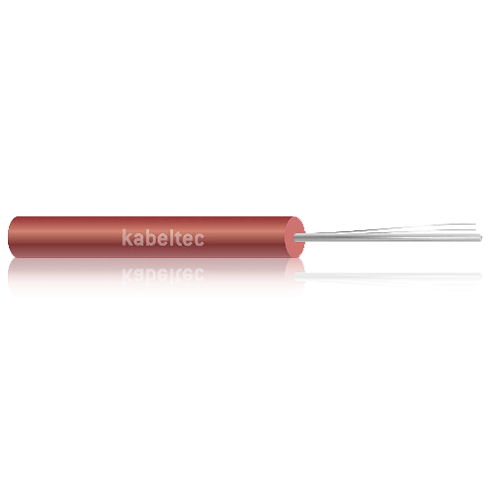

FZLSI
Ignition Cable
CONSTRUCTION:
- Silicon-Kautschuk insulation
- Fine strands of tinned wire: 1,0 mm² = 19 x 0,25 mm; 1,5 mm² = 30 x 0,25 mm
- High tension resistant
- Halogen-free
TECHNICAL DATA:
| Conductor Material | Copper, tinned |
| Conductor class | Class 5 acc. to VDE 0295 or IEC 60228 |
| Core insulation | Silicone Rubber |
| Core identification | * |
| Stranding | * |
| Outer sheath | * |
| Sheath colour | * |
| Rated voltage [V] | 10000 |
| Testing voltage [V] | 20000 |
| Conductor resistance | * |
| Insulation resistance | * |
| Current carrying capacity | * |
| Min. bending radius fixed [xd] | 6 |
| Min. bending radius moved [xd] | * |
| Working temp fixed min/max [C] | -50°C up to +180 |
| Working temp moved min/mac [C] | -25°C up to +180 |
| Temp at conductor max | Momentary +200°C |
| Burning behaviour | IEC 60332-1 |
| Approvals | IEC 60754-1 Halogen-free IEC 60754-2 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 43000100.00 | 1 x 1 | 7.00 | 0.96 | 5.25 |
| 43100100.00 | 1 x 1 blau | 7.50 | 0.96 | 6.50 |
| 43000150.00 | 1 x 1.50 blau | 8.20 | 1.44 | 6.00 |
| 43000150 R/B | 1 x 1.5 rotbraun | 8.50 | 1.44 | 6.00 |
