For internal wiring of devices. Suitable in dry rooms for fixed and flexible laying onwall and in-wall. May be used for exposed conduits or embedded conduits.

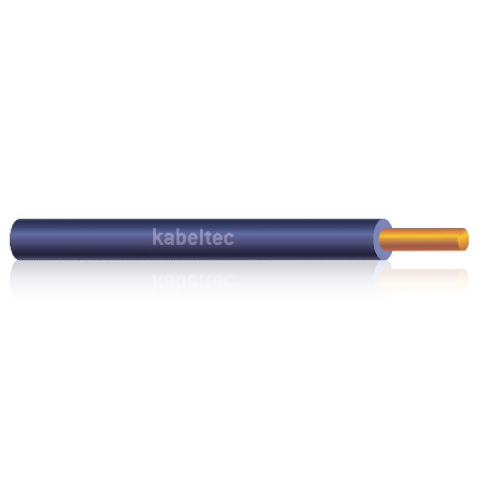

H05V-U/ H07V-U
PVC single core after VDE 0281
CONSTRUCTION:
– single or stranded copper conductor
– PVC core insulation
Technical Data:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 1 |
| Core insulation: | PVC |
| Core identification: | Different colours |
| Stranding: | Single conductor |
| Outer sheath: | |
| Sheath colour: | |
| Rated voltage [V]: | H05V-U: 300/500 V H07V-U: 450/750 |
| Testing voltage [V]: | H05V-U: 2000 V H07V-U: 2500 |
| Conductor resistance: | Acc. to DIN VDE 0295 or IEC 60228 |
| Insulation resistance: | |
| Current carrying capacity: | DIN VDE (see technical guidelines) |
| Min. bending radius fixed [xd]: | 4 x d |
| Min. bending radius moved [xd]: | 15 x d |
| Working temp fixed min/max [C]: | -30°C up to +70°C |
| Working temp moved min/max [C]: | -5°C up to+70°C |
| Temp at conductor max.: | +70°C |
| Burning behaviour: | VDE 0482-332-1-2/IEC 60332-1 |
| Approvals: | VDE 0281-3 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 340..0050 H05V-U | 1 x 0.50 | 2.30 | 0.48 | 0.70 |
| 340..0075 H05V-U | 1 x 0.75 | 2.50 | 0.72 | 1.00 |
| 340..0100 H05V-U | 1 x 1 | 2.70 | 0.96 | 1.40 |
| 350..0150 H07V-U | 1 x 1.50 | 3.20 | 1.44 | 2.00 |
| 350..0250 H07V-U | 1 x 2.50 | 3.90 | 2.40 | 3.10 |
| 350..0400 H07V-U | 1 x 4 | 4.40 | 3.80 | 4.60 |
| 350..0600 H07V-U | 1 x 6 | 5.00 | 5.80 | 6.50 |
| 350..1000 H07V-U | 1 x 10 | 6.40 | 9.60 | 11.00 |
