Suitable in dry rooms for fixed and flexible laying. They may be used for exposed conduits or embedded conduits

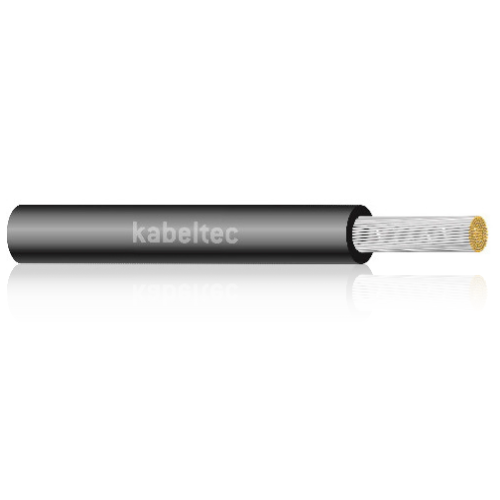

H05V2-K /H07V2-K
PVC Single cores
CONSTRUCTION:
fine stranded tinned copper conductor
core insulation made of special PVC
Technical Data:
| Conductor Material: | Bare Copper |
| Conductor class: | Class 5 |
| Core insulation: | Special PVC |
| Core identification: | |
| Stranding: | |
| Outer sheath: | |
| Sheath colour: | Available in various colours, see colour numbers |
| Rated voltage [V]: | H05V2-K: 300/500V | H07V2-K: 450/750V |
| Testing voltage [V]: | 2000V |
| Conductor resistance: | |
| Insulation resistance: | |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | core Ø smaller 8 mm: 4x core Ø ; core Ø larger 8-1 2 mm: |
| 5x core Ø ; core Ø larger 12 mm: 6x core Ø; | |
| Min. bending radius moved [xd]: | |
| Working temp fixed min/max [C]: | -30°C up to +90°C |
| Working temp moved min/max [C]: | -5°C up to +90°C |
| Temp at conductor max.: | |
| Burning behaviour: | flame retardant: IEC 50332-1; EN 50265, VDE 0482-265; |
| self-extinguishing | |
| Approvals: |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| SO-34. 50 | 1 x 0.5 | 2.70 | 0.48 | 1.00 |
| SO-34. 75 | 1 x 0.75 | 2.90 | 0.72 | 1.30 |
| SO-34...100 | 1 x 1 | 3.10 | 0.96 | 1.60 |
| SO-34...150 | 1 x 1.5 | 3.40 | 1.44 | 2.20 |
| SO-34...250 | 1 x 2.5 | 4.00 | 2.40 | 3.70 |
| SO-34...400 | 1 x 4 | 4.60 | 3.84 | 4.90 |
| SO-34...600 | 1 x 6 | 5.10 | 5.76 | 7.10 |
| SO-34..1000 | 1 x 10 | 6.80 | 9.60 | 12.00 |
| SO-34..1600 | 1 x 16 | 9.00 | 15.36 | 18.50 |
| SO-34..2500 | 1 x 25 | 10.20 | 24.00 | 26.00 |
| SO-35..3500 | 1 x 35 | 11.70 | 33.60 | 36.00 |
| SO-35..5000 | 1 x 50 | 13.90 | 48.00 | 53.50 |
| SO-35..7000 | 1 x 70 | 16.00 | 67.20 | 73.50 |
| SO-35..9500 | 1 x 95 | 18.20 | 91.20 | 93.00 |
