These cables are intended for semi-flush conduits exposed conduits and embedded conduits as well as in closed installation ducts.

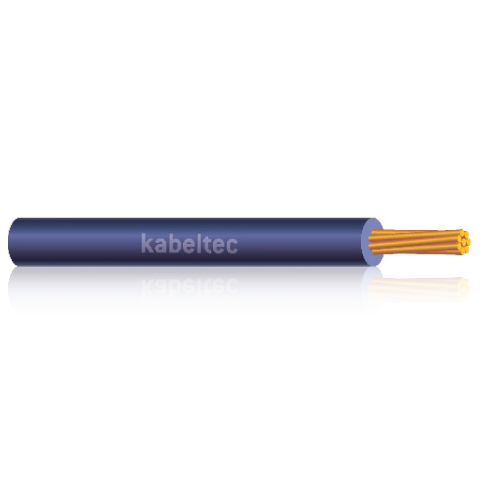

H07V-R
PVC-single stranded in accordance VDE 0281
CONSTRUCTION:
-blank copper conductor, stranded
– according to VDE 0281-3
Technical Data:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 2 |
| Core insulation: | PVC |
| Core identification: | VDE 0293 |
| Stranding: | Multi wired |
| Outer sheath: | |
| Sheath colour: | |
| Rated voltage [V]: | 450 / 750 |
| Testing voltage [V]: | 2500 |
| Conductor resistance: | |
| Insulation resistance: | ≥ 10 MΩ x km |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | 6 x d |
| Min. bending radius moved [xd]: | 15 x d |
| Working temp fixed min/max [C]: | -5°C up to +70°C |
| Working temp moved min/max [C]: | +5°C up to +70°C |
| Temp at conductor max.: | +70°C |
| Burning behaviour: | IEC 60332-1 and VDE 0482-332-1-2 |
| Approvals: | VDE 0218-3 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 342..1600 | 1 x 16 | 7.10 | 15.40 | 17.50 |
| 342..2500 | 1 x 25 | 8.80 | 24.00 | 27.50 |
| 342..3500 | 1 x 35 | 10.00 | 33.60 | 37.00 |
| 342..5000 | 1 x 50 | 11.70 | 48.00 | 50.00 |
| 342..7000 | 1 x 70 | 13.50 | 67.20 | 71.00 |
| 342..9500 | 1 x 95 | 15.80 | 91.20 | 97.00 |
| 342..12000 | 1 x 120 | 18.50 | 115.20 | 120.00 |
| 342..15000 | 1 x 150 | 20.50 | 144.00 | 147.00 |
