Suitable for application as connecting cable between encoder/resolver and servo controller in machine tools and drag chains with medium mechanical stress. Cables are corresponding to Servomotors of Indramat.
INDRAMAT Feedback

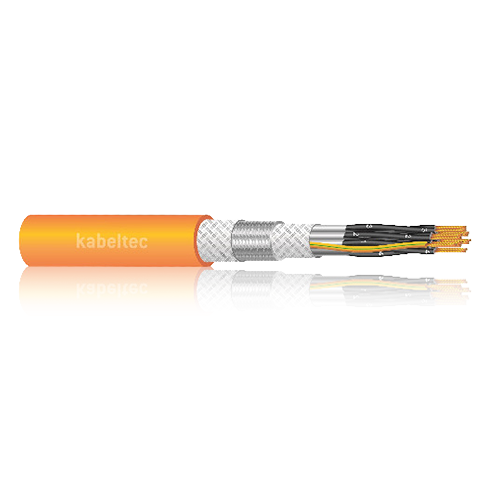

Drag chain cable, UL/CSA approved
CONSTRICTION:
- Stranded bare copper conductor extra flexible according to VDE 0295
- Tinned copper screen
- PVC/TPE insulation acc. to VDE 0250 part 1 tab.4
- Core marking: supplying and signalling cables black with white imprint an
- Green/yellow conductor
- PUR outer sheath, flame-retardant, orange
Technical Data:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 6 acc. to VDE 0295 or IEC 60228 |
| Core insulation: | TPE |
| Core identification: | Indramat colour code |
| Stranding: | |
| Outer sheath: | PUR |
| Sheath colour: | Orange (RAL 2003) |
| Rated voltage [V]: | 300 |
| Testing voltage [V]: | 1500 |
| Conductor resistance: | |
| Insulation resistance: | |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | 5 x d |
| Min. bending radius moved [xd]: | 7,5 x d |
| Working temp fixed min/max [C]: | -50°C up to +80°C |
| Working temp moved min/mac [C]: | -40°C up to +80°C |
| Temp at conductor max.: | |
| Burning behaviour: | VDE 0482-332-1-2/IEC 60332-1: flame -retardant and self extinguishing |
| Approvals: | Halogen-free IEC 60754 Oil-resistant EN 60811-2-1 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| INK-0750 | 2x2x0.25 + 2 x 0.5 | 7.60 | 5.10 | 8.40 |
| INK-0280 | 3x0.25 + 3x(2x0.25)D + 2 x 1 | 10.00 | 9.30 | 14.30 |
| INK-0532 | 4x1 + 4x2x0.14 + 4 x 0.14 | 7.90 | 8.50 | 14.20 |
| INK-0448 | 4x2x0.25 + 2 x 0.5 | 9.00 | 7.00 | 9.50 |
| INK-0209 | 4x2x0.25 + 2 x 1 | 9.10 | 9.30 | 11.80 |
| INK-0208 | 9 x 0.5 | 9.10 | 8.10 | 11.90 |
