Suitable for application as connecting cable between servo controler and motor in machine tools and drag chains with medium mechanical stress. Cables are corresponding to Servomotors of Indramat.
INDRAMAT Power

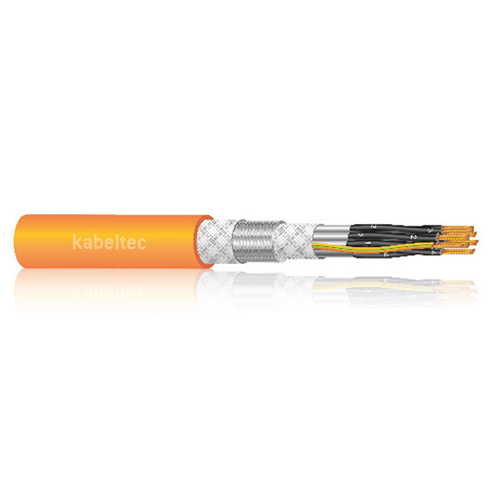

Servo Cable, UL/CSA approved
- CONSTRUCTION:
- Stranded bare copper conductor extra flexible according to VDE 0295
- Tinned copper screening
- PVC/TPE core insulation acc. to VDE 0250 part 1 tab.4
- Core marking: supplying and signalling cables black with white imprint and green/yellow conductor
- PUR outer sheath, flame-retardant, orange
Technical Data:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 6 according VDE 0295 resp IEC 60228 |
| Core insulation: | |
| Core identification: | Black with conescutive numbering + green-yellow earth conductor |
| Stranding: | |
| Outer sheath: | PUR |
| Sheath colour: | Orange (RAL 2003) |
| Rated voltage [V]: | 600 / 1000 |
| Testing voltage [V]: | 4000 |
| Conductor resistance: | |
| Insulation resistance: | |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | 5 x d |
| Min. bending radius moved [xd]: | 7.5 x d |
| Working temp fixed min/max [C]: | -50°C up to +80°C |
| Working temp moved min/mac [C]: | -40°C up to +80°C |
| Temp at conductor max.: | |
| Burning behaviour: | flame-retardant: VDE 0482-332-1-2/IEC 60332-1 |
| Approvals: | Halogen free IEC 600754 |
| Oil resistant EN 60811-2-1 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| INK-0670 | 4G0.75 + ( 2 x 0.5 )StD | 10.00 | 8.80 | 14.50 |
| INK-0653 | 4G1 + 2x( 2 x 0.75 )StC | 12.30 | 17.00 | 22.60 |
| INK-0650 | 4G1.5 + 2x( 2 x 0.75 )StC | 12.30 | 20.80 | 26.00 |
| INK-0602 | 4G2.5 + 2x( 2 x 1 )StC | 14.80 | 22.90 | 32.60 |
| INK-0603 | 4G4 + (2x1.5)StC + ( 2 x 1 )StC | 17.00 | 31.80 | 45.80 |
| INK-0604 | 4G6 + (2x1.5)StC + ( 2 x 1 )StC | 18.50 | 44.50 | 58.40 |
| INK-0605 | 4G10 + (2x1.5)StC + ( 2 x 1 )StC | 21.90 | 61.00 | 84.60 |
| INK-0668 | 4G50 + 2x( 2 x 1.50 )StC | 37.40 | 260.00 | 298.00 |
| INK-0606 | 4G16 + 2x( 2 x 1.5 )StC | 25.50 | 90.40 | 115.40 |
| INK-0607 | 4G25 + 2x( 2 x 1.5 )StC | 29.50 | 132.30 | 158.80 |
| INK-0667 | 4G35 + 2x( 2 x 1.50 )StC | 31.00 | 164.50 | 209.70 |
