Balanced junction cable for peripheral equipment of data processing systems, for ISDN electronic data transmission systems and communication systems up to 10 Mbits. Preferably to be employed as connecting and junction cable for cash registers, monitors and printers. Suitable for fixed laying in dry and moist rooms.

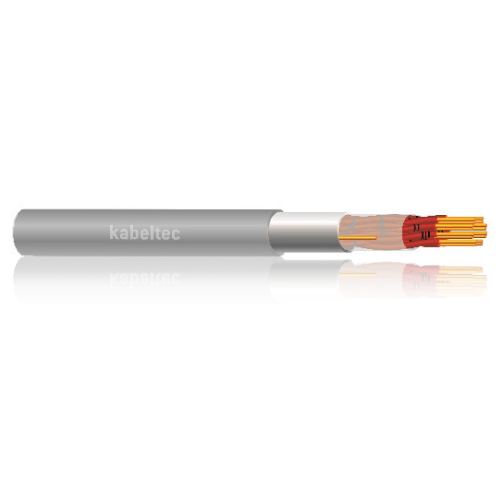

J-2Y(ST)Y…St III Bd
CONSTRUCTION:
- Solid copper conductor, bare
- Bunches twisted in layers
- Individual cores insulated with PE
- Cores twisted to form star quads, 5 star quads twisted forming a bunch
- PVC outher sheath grey RAL 7032
- Static screen made of plastics laminated metal foil with CU tracer wire
- Core marking: The cores of the five star quads of a bunch are coloured as follows (primary colours): star quads: 1 red -2 green 3 – grey 4 – yellow 5 – white. The single cores of a quad are marked with black rings. If the cable consists of several bunches, the counting bunch is provided with a red identification spiral made of plastic tape. All other bunches are provided with white or nature coloured spirals.
- Counting order: The quads of any bunch are counted in the order of the primary colours. When using cables > 5 quads the bunches are counted starting with the counting bunch and then proceeding consecutively in the same direction for all individual quads.
- According to VDE 0815 / 0816
Technical Data:
| Conductor Material | Copper, bare |
| Conductor class | Class 1 |
| Core insulation | PE |
| Core identification | DIN VDE 0815: Different colours |
| Stranding |
Cores twisted to form star quads 5 star quads twisted forming a bunch; bunches twisted in layers
|
| Outer sheath | PVC |
| Sheath colour | Grey (RAL 7032) |
| Rated voltage [V] | 300 |
| Testing voltage [V] | Core/core: 800 V | core/screen: 2000 |
| Conductor resistance | Loop: max. 130 Ω / km |
| Insulation resistance | 5 GΩ x km |
| Current carrying capacity | DIN VDE (see technical guidelines) |
| Min. bending radius fixed [xd] | 7.5 x d |
| Min. bending radius moved [xd] | 10 x d |
| Working temp fixed min/max [C] | -30°C up to +70 |
| Working temp moved min/mac [C] | -5°C up to +50 |
| Temp at conductor max. | * |
| Burning behaviour | IEC 60332-1: flame-retardant and self-extinguishing |
| Approvals | * |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 811020060.00 | 2 x 2 x 0.60 | 5.50 | 1.30 | 4.20 |
| 811040060.00 | 4 x 2 x 0.60 | 7.50 | 2.40 | 6.60 |
| 811060060.00 | 6 x 2 x 0.60 | 8.50 | 3.50 | 8.00 |
| 811080060.00 | 8 x 2 x 0.60 | 8.50 | 4.60 | 9.00 |
| 811100060.00 | 10 x 2 x 0.60 | 9.50 | 5.80 | 11.50 |
| 811200060.00 | 20 x 2 x 0.60 | 13.50 | 11.60 | 21.70 |
| 811300060.00 | 30 x 2 x 0.60 | 14.50 | 17.20 | 28.30 |
| 811400060.00 | 40 x 2 x 0.60 | 16.00 | 22.90 | 37.00 |
| 811500060.00 | 50 x 2 x 0.60 | 18.00 | 28.80 | 43.40 |
| 811600060.00 | 60 x 2 x 0.60 | 20.00 | 34.20 | 52.60 |
| 811800060.00 | 80 x 2 x 0.60 | 22.50 | 45.50 | 64.00 |
| 8111000060.00 | 100 x 2 x 0.60 | 25.80 | 58.80 | 86.10 |
