For digital information transmission in telecommunication installations in dry and wet rooms. Also for fixed installation on outer walls when protected against solar irradiation. These cables are not approved for power applications.

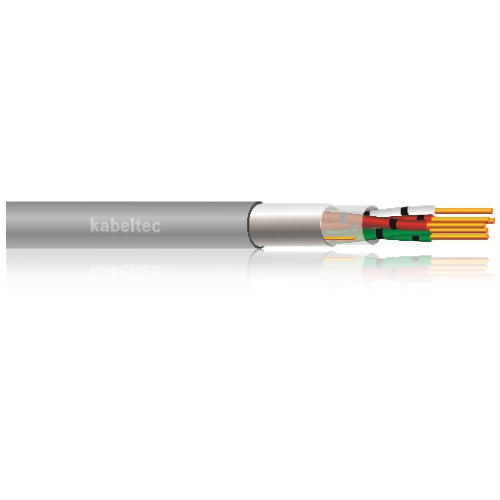

J-YY…Bd
According to VDE 0815
CONSTRUCTION:
- Strands of bare copper wire, Ø 0,60mm
- Cores twisted to form star quads and star quads twisted forming a bunch
- Individual cores insulated with PVC
- Wrapped with a plastic foil
- PVC outher sheath: grey, RAL 7032
- Bending radius 10 x Ø
Technical Data:
| Conductor Material | Copper, bare |
| Conductor class | Class 1 |
| Core insulation | PVC |
| Core identification | * |
| Stranding | Cores twisted to form star quads and star quads twisted forming a bunch |
| Outer sheath | PVC |
| Sheath colour | Grey (RAL 7032) |
| Rated voltage [V] | 300 |
| Testing voltage [V] | 800 |
| Conductor resistance | * |
| Insulation resistance | > 100 MΩ x km |
| Current carrying capacity | * |
| Min. bending radius fixed [xd] | 7.5 x d |
| Min. bending radius moved [xd] | * |
| Working temp fixed min/max [C] | -30°C up to +70 |
| Working temp moved min/mac [C] | -5°C up to +50 |
| Temp at conductor max. | * |
| Burning behaviour | flame-retardant: VDE 0482-332-1-2/IEC 60332-1 |
| Approvals | * |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 810020060.00 | 2 x 2 x 0.60 | 5.00 | 1.10 | 3.00 |
| 810040060.00 | 4 x 2 x 0.60 | 6.60 | 2.30 | 6.00 |
| 810060060.00 | 6 x 2 x 0.60 | 7.00 | 3.40 | 7.00 |
| 810100060.00 | 10 x 2 x 0.60 | 8.50 | 5.70 | 11.00 |
| 810200060.00 | 20 x 2 x 0.60 | 11.00 | 11.30 | 20.00 |
| 810300060.00 | 30 x 2 x 0.60 | 13.50 | 17.00 | 28.00 |
| 810500060.00 | 50 x 2 x 0.60 | 16.50 | 28.30 | 45.00 |
| 8101000060.00 | 100 x 2 x 0.60 | 22.60 | 56.50 | 85.50 |
