This halogen-free installation cable is used for telephone data and signal transmissions in dry and moist rooms as well as on and under plaster. Typical location for their use are buildings open to the public such as hotels, hospitals etc. These cables grant the functioning of vital equipment and systems necessary to protect life in the event of fire by a duration for at least 30 minutes.

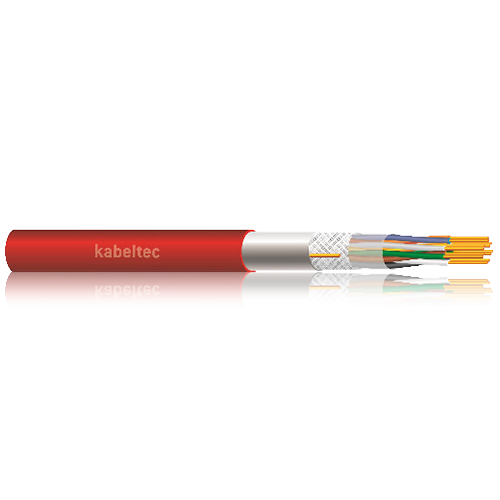

JE-HSTH…BD E30 red
E30 fire alarm cable, halogen free
CONSTRUCTION:
- Plain copper wires, single wire
- Core insulation of halogen-free elastomer compound
- Flame retardant
- Cores twisted in pairs
- Four pairs laid up in units
- Units twisted in layers
- Unit marking by numbers
- Static screen made of plastics laminated metal foil and CU tracer wire
- Outer sheath of halogen-free polymer, orange
- Flame retardant
- According to VDE 0815
FUNCTIONING:
At least 30 minutes according to VDE 107 and 108 (E30)
TECHNICAL DATA:
| Conductor Material | Copper, bare |
| Conductor class | * |
| Core insulation | Halogen-free elastomer compound |
| Core identification | Colour+Rings |
| Stranding | 2 cores twisted in pairs 4 pairs laid up in units Multiple units twisted in layers |
| Outer sheath | Halogen-free polymer |
| Sheath colour | Orange |
| Rated voltage [V] | 225 |
| Testing voltage [V] | core/core: 500 V core/screen: 2000 |
| Conductor resistance | Loop: max. 73,2 Ω / km |
| Insulation resistance | > 100 MΩ x km |
| Current carrying capacity | DIN VDE (see technical guidelines) |
| Min. bending radius fixed [xd] | 15 x d |
| Min. bending radius moved [xd] | 7.5 x d |
| Working temp fixed min/max [C] | -30°C up to +70 |
| Working temp moved min/mac [C] | * |
| Temp at conductor max. | * |
| Burning behaviour | flame-retardant: VDE 0482-266-2-4/IEC 60332-3-24 |
| Approvals | VDE 0815 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 815020080 | 2 x 2 x 0.80 | 6 | 2.5 | 7.6 |
| 815040080 | 4 x 2 x 0.80 | 8.5 | 4.5 | 13 |
| 815080080 | 8 x 2 x 0.80 | 11 | 8.5 | 23.2 |
| 815120080 | 12 x 2 x 0.80 | 13 | 12.6 | 31.8 |
| 815160080 | 16 x 2 x 0.80 | 14.5 | 16.6 | 43 |
| 815200080 | 20 x 2 x 0.80 | 16 | 20.6 | 51.4 |
| 815320080 | 32x2 x 0.80 | 20.5 | 32.6 | 73 |
| 815400080 | 40 x 2 x 0.80 | 22.5 | 40.7 | 96.2 |
| 815520080 | 52x2 x 0.80 | 25.1 | 52.9 | 120 |
