This halogen-free installation cable is used for telephone data and signal transmissions in dry and moist rooms as well as on and under plaster. Typical location for their use are buildings open to public such as hotels, hospitals, etc. This cable grants the functioning of vital equipment and systems necessary to protect life in the event of fire by a duration for at least 90 minutes.

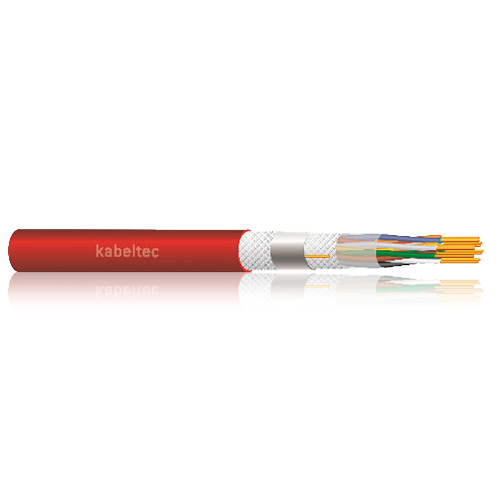

JE-HSTH…Bd E90
Halogen-free according to VDE 0815
CONSTRUCTION:
– static screen made of plastics laminated metal foil and CU tracer wire
– unit marking by numbers
– plain copper wires, single wire
– core insulation of halogen-free elastomer compound
– cores twisted in pairs
– flame-retardant
– four pairs laid up in units
– units twisted in layers
– Functionality: E30-E90
Technical Data:
Conductor Material: Copper, bare
Conductor class: *
Core insulation: Halogen-free elastomer compound
Core identification: Colour+Rings
Stranding: Cores twisted in pairs 4 pairs laid up in units Units twisted
in layers
Outer sheath: Halogen-free polymer
Sheath colour: Orange
Rated voltage [V]: 225
Testing voltage [V]: core/core: 500 V core/screen: 2000
Conductor resistance: *
Insulation resistance: > 100 MΩ x km
Current carrying capacity:*
Min. bending radius fixed [xd]: 6 x d
Min. bending radius moved [xd]: 15 x d
Working temp fixed min/max [C]: -5°C up to +50
Working temp moved min/mac [C]: -5°C up to +50
Temp at conductor max.: *
Burning behaviour: VDE 0482-266-2-4/IEC 60332-3-24
Approvals: *
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 820020080.00 | 2 x 2 x 0.80 | 7.40 | 2.50 | 7.60 |
| 820040080.00 | 4 x 2 x 0.80 | 11.10 | 4.50 | 13.00 |
| 820080080.00 | 8 x 2 x 0.80 | 15.60 | 8.50 | 23.20 |
| 820120080.00 | 12 x 2 x 0.80 | 18.10 | 12.60 | 31.80 |
| 820160080.00 | 16 x 2 x 0.80 | 19.80 | 16.60 | 43.00 |
| 820200080.00 | 20 x 2 x 0.80 | 22.50 | 20.60 | 51.40 |
| 820320080.00 | 32 x 2 x 0.80 | 27.70 | 32.60 | 73.00 |
| 820400080.00 | 40 x 2 x 0.80 | 30.80 | 40.70 | 96.20 |
| 820520080.00 | 52 x 2 x 0.80 | 34.70 | 52.90 | 120.00 |
