Power supply cable for Electric Vehicle Conductive Charging System. Flexible down to very low temperatures High resistance to abrasion, tearing, oil, grease and chemical substances

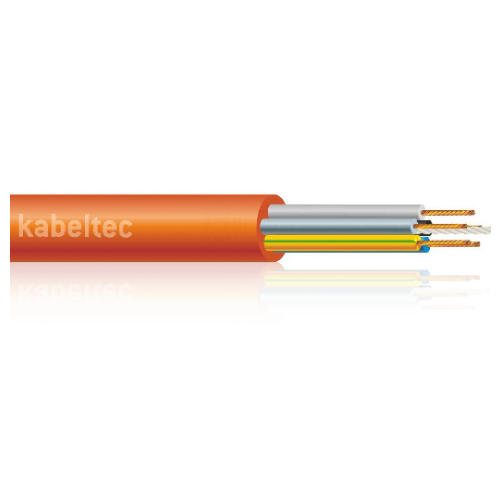

Kabeltec-Battery BQ-F
Construction:
- Flexibile conductors, made of bare copper, Class 5
- Rubber compound insulation
- Power conductores + single control core
- PP fillers
- Nonwoven tape
- PUR sheath
Technical Data:
| Conductor Material | bare copper |
| Conductor class | Class 5 acc. to DIN VDE 0295 |
| Core insulation | Rubber compound EPR Type E16 |
| Core identification |
colored cores acc. to VDE 0293-308+ black/white or red single control core
|
| Stranding | Cores twisted with PP fillers |
| Outer sheath | PUR |
| Sheath colour | Orange (RAL 2003) or black (RAL 9005) |
| Rated voltage [V] | 450/750V |
| Testing voltage [V] | 4000 V |
| Conductor resistance | |
| Insulation resistance | |
| Current carrying capacity | |
| Min. bending radius fixed [xd] | 4 x d |
| Min. bending radius moved [xd] | 12.5 x d |
| Working temp fixed min/max [C] | -50°C up to +90°C |
| Working temp moved min/mac [C] | -40°C up to +90°C |
| Temp at conductor max | |
| Burning behaviour | |
| Approvals | VDE-AR-E 2283-5 Oil Resistant acc. EN 60811-2-1 Halogen free acc. to IEC 607541, IEC 60754-2 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 450030250 | 3 x 2,5 +1x0,5 | 9.2 | 7.68 | 13.2 |
| 45030250OR | 3 x 2,5 +1x0,5 | 9.2 | 7.68 | 13.2 |
| 450030600 | 3 x 6 +1x0,5 | 11.7 | 17.76 | 25.1 |
| 450030600OR | 3 x 6 +1x0,5 | 11.7 | 17.76 | 25.1 |
| 450050250 | 5 x 2,5 +1x0,5 | 11.4 | 12.48 | 20.5 |
| 450050250OR | 5 x 2,5 +1x0,5 | 11.4 | 12.48 | 20.5 |
| 450050600 | 5 x 6 +1x0,5 | 14.7 | 29.28 | 40.3 |
| 450050600OR | 5 x 6 +1x0,5 | 14.7 | 29.28 | 40.3 |
