The cable is intended for connecting L2-Bus components (standard 486) and transmission of analogue and digital signals. Paired construction ensures good symmetry with respect to earth, while the double screen protects against interferences from external electromagnetic fields, what guarantees very good transmission quality. Cables may be used in dry and damp rooms and are suitable for fixed installations. Special construction allows to strip the cable with the special striping tool (FastConnect)

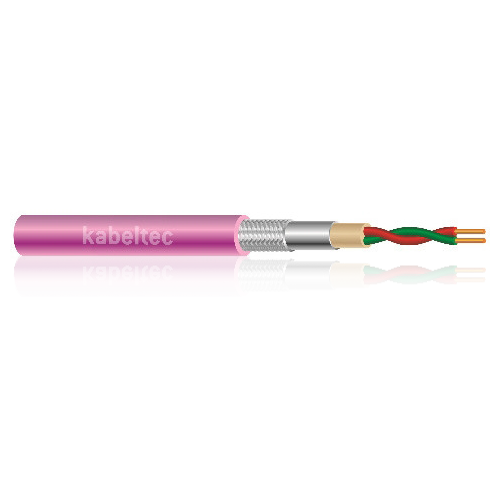

L2 BUS FC LSOH
O2YS(St)CH
Construction:
Cores: solid copper conductors 1x2x0,64
Insulation: made of foamed PE with a thin external layer of solid PE
Filling sheath: LSOH compound
Screens: aluminium backed polyester tape and tinned copper wire braid
Sheath: LSOH compound, UV resistant
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 1 x 2x0,64 | 8 | 2.7 | 7.5 |
