Halogen-free data transmission, connecting and control cablefor safety-related facilities, in measurement and control technology for lossless transmission of signals. Use in computer systems, office technology and scales – everywhere, where screened, halogen-free conductors with little cross sections are needed. Convenient for areas with high conceantrations of people, e.g. public buildings or means of transportation as well as high material assets which have to be protected in case of fire.

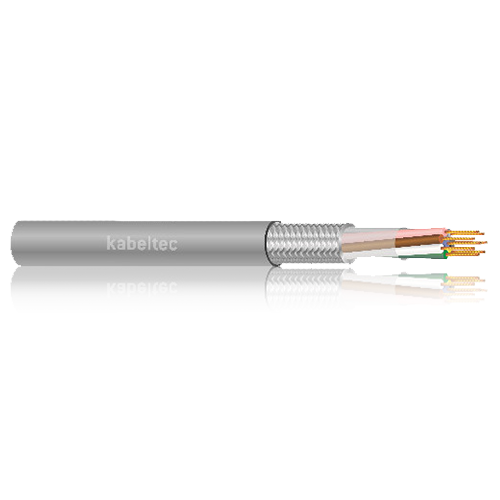

LiHCH
Screened and halogen-free conductor
CONSTRUCTION:
- Fine stranded bare copper conductor
Core insulation made of halogen-free sepcial compound (HI1)
Tinned copper screening
Outer sheath: halogen-free special compound
Technical Data:
Conductor Material: Copper, bare
Conductor class: Class 5 according VDE 0295 resp IEC 60228
Core insulation: Hl1
Core identification: DIN 47100: Different colours
Stranding: *
Outer sheath: Special halogen-free compound
Sheath colour: Grey
Rated voltage [V]: 250
Testing voltage [V]: 1200
Conductor resistance: *
Insulation resistance: 20 MOhm x km
Current carrying capacity: *
Min. bending radius fixed [xd]: *
Min. bending radius moved [xd]: *
Working temp fixed min/max [C]: -40°C up to +70
Working temp moved min/mac [C]: -15°C up to +70
Temp at conductor max.: *
Burning behaviour: Flame-retardant: IEC 60332-1
Approvals: Halogen-free: IEC 60754-1 and IEC 60754-2
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 2140020014.00 | 2 x 0.14 | 4.10 | 1.30 | 2.20 |
| 2140020025.00 | 2 x 0.25 | 4.70 | 1.60 | 3.20 |
| 2140020034.00 | 2 x 0.34 | 5.10 | 2.10 | 3.70 |
| 2140020050.00 | 2 x 0.50 | 5.80 | 2.90 | 5.40 |
| 2140020075.00 | 2 x 0.75 | 6.20 | 3.80 | 6.40 |
| 2140020100.00 | 2 x 1 | 6.40 | 4.30 | 7.20 |
| 2140020150.00 | 2 x 1.50 | 7.60 | 5.80 | 9.00 |
| 2140030014.00 | 3 x 0.14 | 4.30 | 1.40 | 2.80 |
| 2140030025.00 | 3 x 0.25 | 4.90 | 2.10 | 3.60 |
| 2140030034.00 | 3 x 0.34 | 5.30 | 2.70 | 4.90 |
| 2140030050.00 | 3 x 0.50 | 6.10 | 3.80 | 6.70 |
| 2140030075.00 | 3 x 0.75 | 6.50 | 4.80 | 7.60 |
| 2140030100.00 | 3 x 1 | 7.00 | 5.60 | 9.00 |
| 2140030150.00 | 3 x 1.50 | 8.00 | 7.40 | 11.50 |
| 2140040014.00 | 4 x 0.14 | 4.40 | 1.50 | 3.20 |
| 2140040025.00 | 4 x 0.25 | 5.10 | 2.40 | 4.10 |
| 2140040034.00 | 4 x 0.34 | 5.90 | 2.80 | 5.90 |
| 2140040050.00 | 4 x 0.50 | 6.50 | 4.50 | 7.70 |
| 2140040075.00 | 4 x 0.75 | 7.10 | 5.80 | 9.20 |
| 2140040100.00 | 4 x 1 | 7.40 | 6.80 | 10.90 |
| 2140040150.00 | 4 x 1.50 | 8.70 | 10.80 | 15.30 |
| 2140050014.00 | 5 x 0.14 | 4.80 | 1.80 | 3.80 |
| 2140050025.00 | 5 x 0.25 | 5.80 | 2.90 | 5.10 |
| 2140050034.00 | 5 x 0.34 | 6.40 | 3.00 | 6.60 |
| 2140050050.00 | 5 x 0.50 | 7.10 | 5.40 | 9.00 |
| 2140050075.00 | 5 x 0.75 | 7.70 | 7.00 | 11.00 |
| 2140050100.00 | 5 x 1 | 8.10 | 7.90 | 12.60 |
| 2140050150.00 | 5 x 1.50 | 9.40 | 12.90 | 17.60 |
| 2140060014.00 | 6 x 0.14 | 5.00 | 1.80 | 4.30 |
| 2140060025.00 | 6 x 0.25 | 6.10 | 3.00 | 5.80 |
| 2140060034.00 | 6 x 0.34 | 6.90 | 4.40 | 7.90 |
| 2140060050.00 | 6 x 0.50 | 7.80 | 5.90 | 10.50 |
| 2140070014.00 | 7 x 0.14 | 5.00 | 2.00 | 4.90 |
| 2140070025.00 | 7 x 0.25 | 6.20 | 3.60 | 6.50 |
| 2140070034.00 | 7 x 0.34 | 7.00 | 4.80 | 8.30 |
| 2140070050.00 | 7 x 0.50 | 7.90 | 6.80 | 11.00 |
| 2140070075.00 | 7 x 0.75 | 8.30 | 9.80 | 15.60 |
| 2140070100.00 | 7 x 1 | 8.80 | 11.80 | 17.10 |
| 2140070150.00 | 7 x 1.50 | 10.60 | 16.40 | 22.00 |
| 2140080014.00 | 8 x 0.14 | 6.00 | 2.20 | 5.50 |
| 2140080025.00 | 8 x 0.25 | 7.30 | 4.20 | 7.30 |
| 2140080034.00 | 8 x 0.34 | 8.00 | 5.20 | 9.40 |
| 2140080050.00 | 8 x 0.50 | 8.90 | 7.30 | 13.50 |
| 2140100014.00 | 10 x 0.14 | 6.20 | 2.90 | 6.60 |
| 2140100025.00 | 10 x 0.25 | 7.70 | 4.60 | 8.10 |
| 2140100034.00 | 10 x 0.34 | 8.50 | 7.40 | 12.90 |
| 2140100100.00 | 10 x 1 | 11.20 | 14.00 | 22.80 |
| 2140100050.00 | 10 x 0.50 | 9.50 | 9.00 | 16.00 |
| 2140100075.00 | 10 x 0.75 | 10.70 | 13.10 | 18.50 |
| 2140120014.00 | 12 x 0.14 | 6.50 | 3.20 | 7.80 |
| 2140120025.00 | 12 x 0.25 | 7.80 | 5.90 | 10.00 |
| 2140120034.00 | 12 x 0.34 | 8.60 | 8.00 | 14.00 |
| 2140120050.00 | 12 x 0.50 | 9.80 | 10.10 | 18.00 |
| 2140120075.00 | 12 x 0.75 | 11.00 | 15.40 | 22.00 |
| 2140120100.00 | 12 x 1 | 11.60 | 17.00 | 26.00 |
| 2140120150.00 | 12 x 1.50 | 13.80 | 25.40 | 37.60 |
| 2140140025.00 | 14 x 0.25 | 7.90 | 5.80 | 10.00 |
| 2140140014.00 | 14 x 0.14 | 7.20 | 3.70 | 6.10 |
| 2140160014.00 | 16 x 0.14 | 7.10 | 4.30 | 9.00 |
| 2140160025.00 | 16 x 0.25 | 8.60 | 6.40 | 12.40 |
| 2140160034.00 | 16 x 0.34 | 9.50 | 9.40 | 16.00 |
| 2140180014.00 | 18 x 0.14 | 8.00 | 5.20 | 8.40 |
| 2140180100.00 | 18 x 1 | 13.50 | 25.20 | 38.90 |
| 2140180050.00 | 18 x 0.50 | 11.90 | 13.50 | 24.00 |
| 2140180075.00 | 18 x 0.75 | 13.10 | 19.50 | 32.70 |
| 2140180150.00 | 18 x 1.50 | 16.50 | 35.00 | 52.00 |
| 2140210025.00 | 21 x 0.25 | 9.50 | 9.50 | 13.50 |
| 2140210014.00 | 21 x 0.14 | 8.30 | 6.20 | 9.40 |
| 2140250014.00 | 25 x 0.14 | 8.50 | 6.50 | 15.00 |
| 2140250025.00 | 25 x 0.25 | 10.90 | 11.80 | 17.00 |
| 2140250034.00 | 25 x 0.34 | 12.00 | 13.60 | 26.00 |
| 2140250050.00 | 25 x 0.50 | 13.90 | 21.10 | 35.20 |
| 2140250075.00 | 25 x 0.75 | 15.50 | 28.00 | 45.40 |
| 2140250100.00 | 25 x 1 | 16.50 | 34.00 | 52.20 |
| 2140250150.00 | 25 x 1.50 | 20.00 | 55.00 | 90.50 |
| 2140300025.00 | 30 x 0.25 | 11.00 | 13.00 | 16.80 |
| 2140300014.00 | 30 x 0.14 | 10.00 | 9.30 | 12.50 |
| 2140340014.00 | 34 x 0.14 | 10.50 | 12.10 | 15.00 |
| 2140400014.00 | 40 x 0.14 | 11.00 | 12.60 | 15.50 |
