Halogen-free and environmentally data transmission cable, control and connecting cable predominantly for transmission of analog and digital signals in process controlled facilities in measurement and control technology for lossless transmission of datas and signals.
For fixed laying and flexible applications with undefined cable routing and without tensile stress. Suitable for use in dry and humid rooms. Outdoor use only with UVprotection, no laying underground.

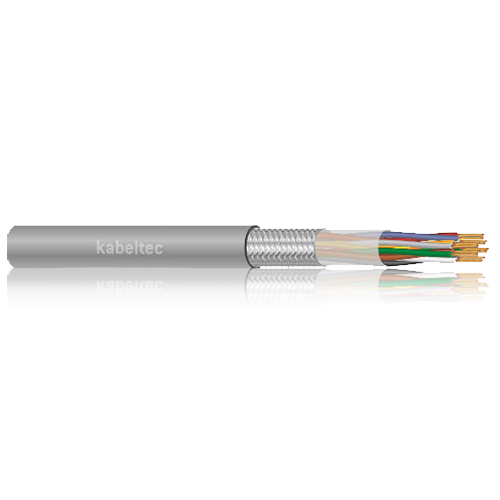

LiHCH (TP)
Screened and halogen-free data cable
CONSTRUCTION:
- Fine stranded bare copper conductors
- Acc. to DIN VDE 0295, class 5 or IEC 60228 cl. 5 Exception: 0,34 mm², mulit-wired (7 x 0,25 mm)
- Core colours acc. to DIN 47100
- Cores twisted in pairs
- Pairs twisted in layers
- Screening made of tinned copper wires
- Outer sheath: polymer compound, halogen-free, flame-retardant
TECHNICAL DATA:
| Conductor Material | Copper, bare |
| Conductor class | Class 5 or IEC 60228 cl. 5 |
| Core insulation | Halogen-free polymer compound |
| Core identification | DIN 47100: Different colours |
| Stranding | Cores twisted in pairs, pairs twisted in layers |
| Outer sheath | Polymer compound |
| Sheath colour | Grey (RAL 7032) |
| Rated voltage [V] | 300 |
| Testing voltage [V] | Core/screen 2000 V, Core/core: on 0.14mm² 1200 V and >0.14mm² 1500 |
| Conductor resistance | * |
| Insulation resistance | > 20 MΩ x km |
| Current carrying capacity | DIN VDE (s. technical guidelines) |
| Min. bending radius fixed [xd] | up to 12mm Ø: 5 x d, up to 20mm Ø: 7,5 x d, > 20mm Ø: 10 |
| Min. bending radius moved [xd] | up to 12mm Ø: 10 x d, up to 20mm Ø: 15 x d, > 20mm Ø: 20 |
| Working temp fixed min/max [C] | -40°C up to +70 |
| Working temp moved min/mac [C] | -15°C up to +70 |
| Temp at conductor max. | * |
| Burning behaviour | VDE 0482-332-2-1 (IEC 60332-1-2) |
| Approvals | DIN VDE 0812, 0814 und DIN 47414 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 2144020014.00 | 2 x 2 x 0.14 | 5.80 | 1.90 | 3.90 |
| 2144020025.00 | 2 x 2 x 0.25 | 7.10 | 3.00 | 5.40 |
| 2144020034.00 | 2 x 2 x 0.34 | 7.20 | 4.33 | 6.80 |
| 2144020050.00 | 2 x 2 x 0.5 | 8.70 | 4.80 | 9.30 |
| 2144020075.00 | 2 x 2 x 0.75 | 9.40 | 5.80 | 10.60 |
| 2144020100.00 | 2 x 2 x 1 | 10.40 | 8.40 | 14.20 |
| 2144020150.00 | 2 x 2 x 1.5 | 11.10 | 11.20 | 16.50 |
| 2144030014.00 | 3 x 2 x 0.14 | 6.00 | 2.30 | 4.80 |
| 2144030025.00 | 3 x 2 x 0.25 | 7.30 | 4.00 | 6.60 |
| 2144030034.00 | 3 x 2 x 0.34 | 8.50 | 5.50 | 9.20 |
| 2144030050.00 | 3 x 2 x 0.5 | 8.90 | 7.40 | 13.00 |
| 2144030075.00 | 3 x 2 x 0.75 | 9.60 | 8.40 | 14.00 |
| 2144030100.00 | 3 x 2 x 1 | 10.60 | 9.60 | 17.30 |
| 2144030150.00 | 3 x 2 x 1.5 | 12.20 | 14.00 | 22.00 |
| 2144040014.00 | 4 x 2 x 0.14 | 6.30 | 2.70 | 5.40 |
| 2144040025.00 | 4 x 2 x 0.25 | 7.70 | 4.50 | 8.10 |
| 2144040034.00 | 4 x 2 x 0.34 | 9.50 | 6.40 | 11.00 |
| 2144040050.00 | 4 x 2 x 0.5 | 9.50 | 8.20 | 14.60 |
| 2144040075.00 | 4 x 2 x 0.75 | 10.80 | 11.00 | 18.00 |
| 2144040100.00 | 4 x 2 x 1 | 11.50 | 12.10 | 21.20 |
| 2144040150.00 | 4 x 2 x 1.5 | 13.40 | 17.60 | 26.50 |
| 2144050014.00 | 5 x 2 x 0.14 | 8.00 | 4.53 | 7.60 |
| 2144050025.00 | 5 x 2 x 0.25 | 8.60 | 5.98 | 9.80 |
| 2144050034.00 | 5 x 2 x 0.34 | 10.00 | 7.45 | 12.80 |
| 2144050100.00 | 5 x 2 x 1 | 11.90 | 16.10 | 26.60 |
| 2144050075.00 | 5 x 2 x 0.75 | 11.20 | 12.60 | 20.00 |
| 2144050050.00 | 5 x 2 x 0.50 | 10.70 | 9.80 | 15.00 |
| 2144050150.00 | 5 x 2 x 1.5 | 14.60 | 21.20 | 31.00 |
| 2144060014.00 | 6 x 2 x 0.14 | 7.20 | 4.90 | 8.70 |
| 2144060025.00 | 6 x 2 x 0.25 | 8.60 | 7.00 | 11.60 |
| 2144060034.00 | 6 x 2 x 0.34 | 10.60 | 8.50 | 14.70 |
| 2144060050.00 | 6 x 2 x 0.5 | 11.20 | 11.00 | 20.00 |
| 2144060075.00 | 6 x 2 x 0.75 | 12.20 | 14.60 | 24.60 |
| 2144070014.00 | 7 x 2 x 0.14 | 8.70 | 6.50 | 9.40 |
| 2144070025.00 | 7 x 2 x 0.25 | 9.50 | 7.13 | 12.00 |
| 2144070034.00 | 7 x 2 x 0.34 | 11.10 | 9.10 | 15.40 |
| 2144070050.00 | 7 x 2 x 0.50 | 11.90 | 12.10 | 18.50 |
| 2144070075.00 | 7 x 2 x 0.75 | 13.70 | 17.00 | 25.50 |
| 2144080014.00 | 8 x 2 x 0.14 | 8.30 | 5.40 | 11.00 |
| 2144080025.00 | 8 x 2 x 0.25 | 10.40 | 7.70 | 13.00 |
| 2144080050.00 | 8 x 2 x 0.5 | 13.30 | 14.00 | 26.00 |
| 2144080075.00 | 8 x 2 x 0.75 | 14.90 | 18.00 | 30.50 |
| 2144080100.00 | 8 x 2 x 1 | 16.60 | 24.00 | 40.00 |
| 2144080150.00 | 8 x 2 x 1.5 | 18.10 | 32.20 | 64.20 |
| 2144100014.00 | 10 x 2 x 0.14 | 8.90 | 6.00 | 11.00 |
| 2144100025.00 | 10 x 2 x 0.25 | 10.70 | 11.00 | 15.30 |
| 2144100034.00 | 10 x 2 x 0.34 | 13.20 | 12.58 | 20.90 |
| 2144100100.00 | 10 x 2 x 1 | 17.10 | 28.20 | 51.00 |
| 2144100075.00 | 10 x 2 x 0.75 | 15.70 | 22.20 | 36.30 |
| 2144100050.00 | 10 x 2 x 0.50 | 14.30 | 16.00 | 27.50 |
| 2144100150.00 | 10 x 2 x 1.5 | 20.10 | 38.00 | 87.00 |
| 2144120014.00 | 12 x 2 x 0.14 | 9.00 | 6.60 | 14.20 |
| 2144120025.00 | 12 x 2 x 0.25 | 11.40 | 12.00 | 19.00 |
| 2144120034.00 | 12 x 2 x 0.34 | 14.30 | 13.94 | 24.50 |
| 2144120050.00 | 12 x 2 x 0.5 | 15.00 | 20.00 | 35.40 |
| 2144120075.00 | 12 x 2 x 0.75 | 16.30 | 26.30 | 45.60 |
| 2144120100.00 | 12 x 2 x 1 | 19.60 | 32.40 | 59.00 |
| 2144120150.00 | 12 x 2 x 1.5 | 21.60 | 44.20 | 93.90 |
| 2144150014.00 | 15 x 2 x 0.14 | 11.40 | 9.24 | 15.70 |
| 2144150025.00 | 15 x 2 x 0.25 | 12.90 | 13.60 | 21.30 |
| 2144150034.00 | 15 x 2 x 0.34 | 15.10 | 17.20 | 27.90 |
| 2144150075.00 | 15 x 2 x 0.75 | 19.20 | 33.00 | 50.00 |
| 2144150050.00 | 15 x 2 x 0.50 | 16.90 | 23.80 | 38.00 |
| 2144160014.00 | 16 x 2 x 0.14 | 10.30 | 7.90 | 15.40 |
| 2144160025.00 | 16 x 2 x 0.25 | 12.70 | 14.70 | 23.80 |
| 2144160050.00 | 16 x 2 x 0.5 | 16.60 | 24.00 | 46.00 |
| 2144160075.00 | 16 x 2 x 0.75 | 0.75 | 33.60 | 50.00 |
| 2144180014.00 | 18 x 2 x 0.14 | 12.60 | 11.00 | 19.00 |
| 2144180025.00 | 18 x 2 x 0.25 | 13.60 | 15.50 | 24.80 |
| 2144180034.00 | 18 x 2 x 0.34 | 16.80 | 20.70 | 36.30 |
| 2144180075.00 | 18 x 2 x 0.75 | 20.70 | 39.00 | 58.00 |
| 2144180050.00 | 18 x 2 x 0.50 | 18.20 | 26.60 | 45.00 |
| 2144200014.00 | 20 x 2 x 0.14 | 11.40 | 10.00 | 18.40 |
| 2144240025.00 | 24 x 2 x 0.25 | 16.20 | 22.60 | 30.00 |
| 2144240050.00 | 24 x 2 x 0.5 | 21.40 | 39.40 | 57.00 |
| 2144250014.00 | 25 x 2 x 0.14 | 12.60 | 11.30 | 24.00 |
