Flexible halogen-free data transmission, control and interconnecting cable for measuring, control and regulation technology, intercom systems, machine, tool and equipment manufacturing and electronics, especially where small dimensions are required. Suitable for use in buildings where the release of halogens in the event of fire must be avoided in dry and damp rooms, or concealed, but not outdoors or in the ground.

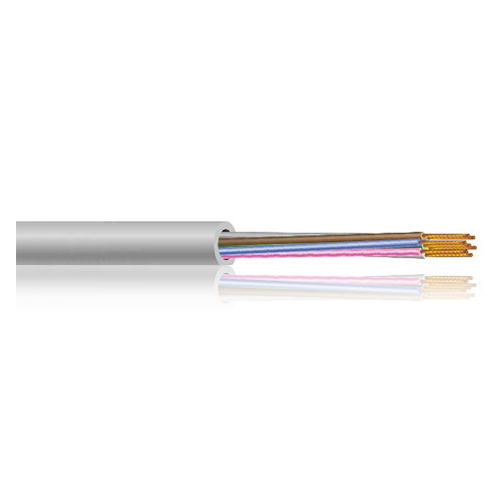

LiHH
halogen free unscreened data cable
CONSTRUCTION:
- Core insulation: halogen-free polyethylene
- Core identification acc. to DIN 47100
- Outer sheath: halogen-free polymer, grey (RAL 7032)
- Cores twisted in layers
- Flame-retardant
Technical Data:
| Conductor Material | Copper, bare |
| Conductor class | Class 5 acc. to DIN VDE 0295 or IEC 60228 |
| Core insulation | Halogen-free polyethylene |
| Core identification | DIN 47100 |
| Stranding | Cores twisted in layers |
| Outer sheath | Halogen-free polymer |
| Sheath colour | Grey (RAL 7032) |
| Rated voltage [V] | 350 |
| Testing voltage [V] | 0,14 mm²: 1200 V, >0.14 mm²: 1500 |
| Conductor resistance | |
| Insulation resistance | min. 20 MΩ x km |
| Current carrying capacity | DIN VDE (s. technical guidelines) |
| Min. bending radius fixed [xd] | 6 x d |
| Min. bending radius moved [xd] | 10 x d |
| Working temp fixed min/max [C] | -40°C up to +80 |
| Working temp moved min/mac [C] | -15°C up to +80 |
| Temp at conductor max. | |
| Burning behaviour | VDE 0482-332-2-1 (IEC 60332-1-2) |
| Approvals | DIN VDE 0295 VDE 0472, Teil 804 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 220020014.00 | 2 x 0.14 | 3.40 | 0.27 | 1.20 |
| 220020025.00 | 2 x 0.25 | 4.00 | 0.48 | 2.20 |
| 220020034.00 | 2 x 0.34 | 4.40 | 0.65 | 2.80 |
| 220020050.00 | 2 x 0.50 | 4.90 | 0.96 | 3.10 |
| 220020100.00 | 2 x 1.00 | 5.70 | 1.92 | 5.50 |
| 220020075.00 | 2 x 0.75 | 5.30 | 1.44 | 4.10 |
| 220020150.00 | 2 x 1.50 | 6.90 | 2.90 | 7.40 |
| 220030014.00 | 3 x 0.14 | 3.60 | 0.40 | 1.50 |
| 220030025.00 | 3 x 0.25 | 4.20 | 0.72 | 2.50 |
| 220030034.00 | 3 x 0.34 | 4.60 | 0.98 | 3.00 |
| 220030050.00 | 3 x 0.50 | 5.20 | 1.44 | 3.70 |
| 220030075.00 | 3 x 0.75 | 5.70 | 2.20 | 5.60 |
| 220030100.00 | 3 x 1.00 | 6.10 | 2.88 | 5.70 |
| 220030150.00 | 3 x 1.50 | 7.40 | 4.32 | 7.20 |
| 220040014.00 | 4 x 0.14 | 3.80 | 0.54 | 1.70 |
| 220040025.00 | 4 x 0.25 | 4.50 | 0.96 | 2.80 |
| 220040034.00 | 4 x 0.34 | 5.00 | 1.31 | 4.00 |
| 220040050.00 | 4 x 0.50 | 5.80 | 1.92 | 4.50 |
| 220040075.00 | 4 x 0.75 | 6.30 | 2.88 | 6.00 |
| 220040100.00 | 4 x 1.00 | 6.60 | 3.84 | 6.70 |
| 220040150.00 | 4 x 1.50 | 8.00 | 5.76 | 8.70 |
| 220050014.00 | 5 x 0.14 | 4.10 | 0.67 | 2.20 |
| 220050025.00 | 5 x 0.25 | 4.90 | 1.20 | 3.40 |
| 220050034.00 | 5 x 0.34 | 5.70 | 1.63 | 4.40 |
| 220050050.00 | 5 x 0.50 | 6.30 | 2.40 | 5.80 |
| 220050075.00 | 5 x 0.75 | 7.10 | 3.60 | 7.00 |
| 220060014.00 | 6 x 0.14 | 4.40 | 0.81 | 2.50 |
| 220060025.00 | 6 x 0.25 | 5.30 | 1.44 | 3.90 |
| 220070014.00 | 7 x 0.14 | 4.40 | 0.94 | 2.60 |
| 220070025.00 | 7 x 0.25 | 5.30 | 1.68 | 4.20 |
| 220070034.00 | 7 x 0.34 | 6.10 | 2.28 | 6.00 |
| 220070050.00 | 7 x 0.50 | 7.00 | 3.36 | 7.20 |
| 220070075.00 | 7 x 0.75 | 7.70 | 5.04 | 8.50 |
| 220080014.00 | 8 x 0.14 | 5.10 | 1.08 | 2.90 |
| 220080025.00 | 8 x 0.25 | 6.40 | 1.92 | 5.00 |
| 220080034.00 | 8 x 0.34 | 7.20 | 2.62 | 7.30 |
| 220100014.00 | 10 x 0.14 | 5.40 | 1.34 | 3.50 |
| 220100025.00 | 10 x 0.25 | 7.00 | 2.40 | 6.00 |
| 220100034.00 | 10 x 0.34 | 7.80 | 3.26 | 8.00 |
| 220100050.00 | 10 x 0.50 | 8.70 | 4.80 | 11.50 |
| 220100075.00 | 10 x 0.75 | 9.50 | 7.20 | 14.90 |
| 220120014.00 | 12 x 0.14 | 5.80 | 1.61 | 4.30 |
| 220120025.00 | 12 x 0.25 | 7.20 | 2.88 | 6.70 |
| 220120034.00 | 12 x 0.34 | 8.00 | 3.92 | 9.70 |
| 220120050.00 | 12 x 0.50 | 9.10 | 5.76 | 11.70 |
| 220120075.00 | 12 x 0.75 | 10.40 | 8.64 | 16.50 |
| 220150014.00 | 15 x 0.14 | 6.10 | 2.02 | 5.60 |
| 220150025.00 | 15 x 0.25 | 7.60 | 3.60 | 8.00 |
| 220150034.00 | 15 x 0.34 | 8.50 | 4.91 | 11.50 |
| 220150050.00 | 15 x 0.50 | 10.10 | 7.20 | 16.30 |
| 220160025.00 | 16 x 0.25 | 7.90 | 3.84 | 8.50 |
| 220180014.00 | 18 x 0.14 | 6.60 | 2.42 | 7.00 |
| 220180025.00 | 18 x 0.25 | 8.20 | 4.32 | 9.30 |
| 220180034.00 | 18 x 0.34 | 9.20 | 5.91 | 14.20 |
| 220200014.00 | 20 x 0.14 | 7.20 | 2.68 | 7.30 |
| 220210014.00 | 21 x 0.14 | 7.40 | 2.90 | 7.60 |
| 220210025.00 | 21 x 0.25 | 9.10 | 5.04 | 10.50 |
| 220210034.00 | 21 x 0.34 | 10.40 | 6.90 | 16.60 |
| 220210050.00 | 21 x 0.50 | 11.70 | 10.10 | 21.90 |
| 220250014.00 | 25 x 0.14 | 8.00 | 3.46 | 9.10 |
| 220250025.00 | 25 x 0.25 | 9.70 | 6.00 | 12.70 |
| 220250034.00 | 25 x 0.34 | 11.40 | 8.20 | 19.20 |
| 220250050.00 | 25 x 0.50 | 12.60 | 12.00 | 27.00 |
| 220300014.00 | 30 x 0.14 | 8.80 | 4.04 | 9.80 |
| 220340014.00 | 34 x 0.14 | 9.20 | 4.60 | 11.10 |
| 220340025.00 | 34 x 0.25 | 10.80 | 8.20 | 16.80 |
| 220340034.00 | 34 x 0.34 | 12.80 | 11.11 | 24.00 |
| 220400014.00 | 40 x 0.14 | 10.40 | 5.40 | 13.90 |
| 220400025.00 | 40 x 0.25 | 11.40 | 9.60 | 19.60 |
| 220400034.00 | 40 x 0.34 | 13.70 | 13.10 | 28.56 |
| 220500014.00 | 50 x 0.14 | 12.50 | 6.72 | 76.40 |
