Flexible connecting cable for electronics control pulse transmission in data transmission applications. Is used in areas where a perfect data transmission is required.

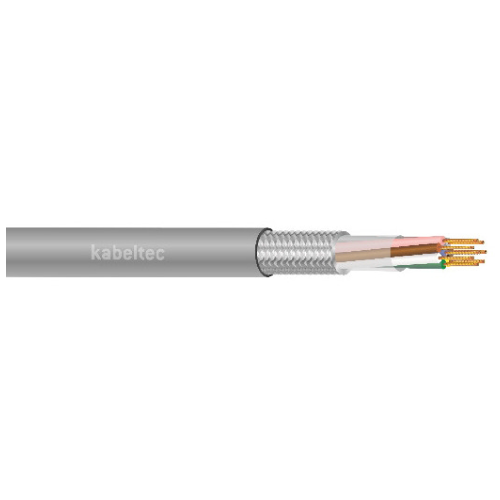

LIYCY-CY
Flexbile data cable with single and overall screen
CONSTRUCTION:
- Fine strands of bare copper wire
- Stranding acc. to VDE 0295 class 5
- PVC core insulation marked as per DIN 47100
- Cores twisted in layers
- Cores individual screened
- Film wrapping
- PVC protection against accidental contact
- Overall screen braiding of tinned copper wire
TECHNICAL DATA:
| Conductor Material | Copper, bare |
| Conductor class | Class 5 |
| Core insulation | PVC |
| Core identification | DIN 47100 |
| Stranding | Cores twisted in layers |
| Outer sheath | PVC |
| Sheath colour | Grey (RAL 7032) |
| Rated voltage [V] | 350 / 500 |
| Testing voltage [V] | 1200 |
| Conductor resistance | – |
| Insulation resistance | ≥ 20 MΩ x km |
| Current carrying capacity | – |
| Min. bending radius fixed [xd] | 7.5 x d |
| Min. bending radius moved [xd] | 15 x d |
| Working temp fixed min/max [C] | -40°C up to +80°C |
| Working temp moved min/mac [C] | -5°C bis +70°C Temp at conductor max. |
| Burning behaviour | IEC 60332-1: flame-retardant and self-extinguishing |
| Approvals | VDE 0812 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 250020014.00 | 2 x 0.14 | 6.80 | 3.65 | 6.30 |
| 250020025.00 | 2 x 0.25 | 7.20 | 4.15 | 6.90 |
| 250030014.00 | 3 x 0.14 | 7.20 | 4.21 | 7.20 |
| 250030025.00 | 3 x 0.25 | 7.70 | 5.30 | 10.60 |
| 250040014.00 | 4 x 0.14 | 7.90 | 5.13 | 8.60 |
| 250040025.00 | 4 x 0.25 | 8.40 | 6.50 | 13.00 |
| 250050014.00 | 5 x 0.14 | 8.50 | 6.14 | 10.30 |
| 250050025.00 | 5 x 0.25 | 9.20 | 7.80 | 16.10 |
| 250070014.00 | 7 x 0.14 | 9.30 | 7.80 | 13.10 |
| 250070025.00 | 7 x 0.25 | 10.20 | 9.40 | 19.60 |
