Used as junction or connecting cables in control, measuring and signalling technology as well as in data processing and office technology. Suitable for fixed installation or flexible applications with unrestricted mobility without forced movement control and without exposure to tensile load. Installation in dry and moist rooms; outdoor installation not permitted. The tight copper screening provides optimum protection against external electrical interference. Good chemical resistance, largely oil resistant.

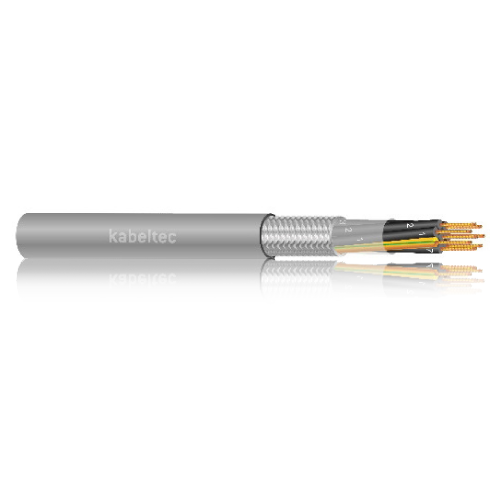

LIYCY-JZ
Flexible data cable, number coded and earth conductor
CONSTRUCTION:
- Fine strands of bare copper wire
- Stranding acc. to VDE 0295 class 5
- Green-yellow protective conductor
- Cores twisted into layers
- Foil wrapping
- PVC core insulation
- PVC outer sheath grey, RAL 7001
Technical Data:
| Conductor Material | Copper, bare |
| Conductor class | Class 5 acc. to DIN VDE 0295 or IEC 60228 |
| Core insulation | PVC |
| Core identification | Acc. to DIN VDE 0293 black cores with white numerals |
| Stranding | Cores twisted into layers |
| Outer sheath | PVC |
| Sheath colour | Grey (RAL 7001) |
| Rated voltage [V] | 300 / 500 |
| Testing voltage [V] | core/core 4000 V; core/shield 2000 |
| Conductor resistance | – |
| Insulation resistance | ≥ 20 MΩ x km |
| Current carrying capacity | DIN VDE 0295 (see technical guidelines) |
| Min. bending radius fixed [xd] | 6 x d |
| Min. bending radius moved [xd] | 0 x d |
| Working temp fixed min/max [C] | -40°C up to +80°C |
| Working temp moved min/mac [C] | 15°C up to +70°C |
| Temp at conductor max. | +70°C in operation +150°C in case of short-circuit |
| Burning behaviour | IEC 60332-1: flame-retardant and self-extinguishing |
| Approvals | EN 50525-2-51 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 19020100 | 2 x 1 | 6.3 | 5.5 | 7.2 |
| 192020075 | 2 x 0.75 | 5.9 | 3.5 | 5.6 |
| 192020050 | 2 x 0.50 | 5.4 | 2.3 | 4.5 |
| 19020150 | 2 x 1.50 | 7 | 6.5 | 9 |
| 192030250 | 2 x 2.50 | 8.1 | 9.8 | 14 |
| 192030050 | 3 x 0.50 | 5.7 | 3.5 | 5.9 |
| 192030075 | 3 x 0.75 | 6.2 | 4.6 | 7.1 |
| 192030100 | 3 x 1 | 6.5 | 7 | 9 |
| 192030150 | 3 x 1.50 | 7.6 | 9 | 11.6 |
| 192030250 | 3 x 2.50 | 8.9 | 12.4 | 16.7 |
| 192040050 | 4 x 0.50 | 6.3 | 4.5 | 7.7 |
| 192040075 | 4 x 0.75 | 6.8 | 5.6 | 9.5 |
| 192040100 | 4 x 1 | 7.1 | 8 | 10.8 |
| 192040150 | 4 x 1.50 | 8.3 | 11 | 15.1 |
| 192040250 | 4 x 2.50 | 9.9 | 15 | 21.6 |
| 192040400 | 4 x 4 | 12.2 | 22 | 30.5 |
| 192040600 | 4 x 6 | 14.2 | 34.3 | 44 |
| 192041000 | 4 x 10 | 17.2 | 48.5 | 68 |
| 192041600 | 4 x 16 | 20.2 | 80 | 105 |
| 192042500 | 4 x 25 | 25.1 | 107.7 | 149.2 |
| 192043500 | 4 x 35 | 30.4 | 157.4 | 207 |
| 192050050 | 5 x 0.50 | 6.7 | 5.7 | 9 |
| 192050075 | 5 x 0.75 | 7.5 | 7 | 10.9 |
| 192050100 | 5 x 1 | 7.9 | 9.5 | 12.7 |
| 192050150 | 5 x 1.50 | 9 | 12.5 | 17.6 |
| 192050250 | 5 x 2.50 | 10.7 | 18 | 27 |
| 192050400 | 5 x 4 | 13.5 | 32.8 | 38.5 |
| 192050600 | 5 x 6 | 15.9 | 44.1 | 50.9 |
| 19205100 | 5 x 10.00 | 19.5 | 59.2 | 82.4 |
| 192051600 | 5 x 16.00 | 22.6 | 89.5 | 128.5 |
| 192052500 | 5 x 25.00 | 28 | 140 | 197.6 |
| 192060050 | 6 x 0.50 | 7.2 | 6.6 | 8.9 |
| 192060075 | 6 x 0.75 | 8 | 7.8 | 11.9 |
| 192060100 | 6 x 1 8.20 | 8.2 | 10.5 | 14.4 |
| 192070050 | 7 x 0.50 | 7.5 | 6.9 | 11.2 |
| 192070075 | 7 x 0.75 | 8.6 | 9.8 | 13 |
| 192070100 | 7 x 1 | 8.5 | 12 | 17.1 |
| 192070150 | 7 x 1.50 | 9.7 | 15.9 | 21.9 |
| 192070250 | 7 x 2.50 | 12 | 25.4 | 34.4 |
| 192070400 | 7 x 4 | 14.4 | 35.5 | 45.9 |
| 192070600 | 7 x 6 | 17.3 | 50.5 | 67.2 |
| 192071000 | 7 x 10 | 21.5 | 81.2 | 113.4 |
| 192071600 | 7 x 16 | 24.8 | 145.8 | 172 |
| 192080050 | 8 x 0.50 | 8.3 | 8 | 11.7 |
| 192080075 | 8 x 0.75 | 9.2 | 10.6 | 14.5 |
| 192080100 | 8 x 1 | 10.3 | 13 | 19.7 |
| 192080150 | 8 x 1.50 | 11.4 | 19.2 | 24.4 |
| 192100050 | 10 x 0.50 | 9 | 8.1 | 13.5 |
| 192100075 | 10 x 0.75 | 10.3 | 14 | 18 |
| 192100100 | 10 x 1 | 10.9 | 13.8 | 23.2 |
| 192100150 | 10 x 1.50 | 12.4 | 22.3 | 31.5 |
| 192120050 | 12 x 0.50 | 9.6 | 11.2 | 20 |
| 192120075 | 12 x 0.75 | 11.4 | 14.8 | 26.3 |
| 192120100 | 12 x 1 | 11.4 | 18.5 | 28.5 |
| 192120150 | 12 x 1.50 | 13 | 24.5 | 36.5 |
| 192120250 | 12 x 2.50 | 15.8 | 40.2 | 55 |
| 192140050 | 14 x 0.50 | 10.4 | 12.2 | 19 |
| 192140075 | 14 x 0.75 | 11.6 | 14.4 | 22.5 |
| 192140100 | 14 x 1 | 12 | 19.8 | 30.2 |
| 192140150 | 14 x 1.50 | 14.4 | 29.2 | 38.3 |
| 192160050 | 16 x 0.50 | 11.2 | 12.3 | 21 |
| 192160075 | 16 x 0.75 | 12 | 17.2 | 27.5 |
| 192160100 | 16 x 1 | 13 | 20.3 | 34.6 |
| 192160150 | 16 x 1.50 | 14.9 | 31.5 | 42.4 |
| 192180050 | 18 x 0.50 | 11.5 | 15.2 | 27.5 |
| 192180075 | 18 x 0.75 | 12.7 | 20.5 | 31.5 |
| 192180100 | 18 x 1 | 13.9 | 24.5 | 39.5 |
| 192180150 | 18 x 1.50 | 15.6 | 34.5 | 52 |
| 192180250 | 18 x 2.50 | 19 | 57 | 78.2 |
| 192200050 | 20 x 0.50 | 11.8 | 17.3 | 24 |
| 192200075 | 20 x 0.75 | 13.4 | 22 | 32 |
| 192200100 | 20 x 1 | 14.7 | 28.6 | 44 |
| 192200150 | 20 x 1.50 | 15.9 | 40.2 | 54.5 |
| 192210050 | 21 x 0.50 | 12.3 | 18.9 | 25 |
| 192240050 | 24 x 0.50 | 13 | 23.6 | 30 |
| 192240075 | 24 x 0.75 | 15.5 | 25 | 38.5 |
| 192240100 | 24 x 1 | 15.9 | 32 | 49.3 |
| 192240150 | 24 x 1.50 | 17.1 | 47.8 | 69 |
| 192250050 | 25 x 0.50 | 13.6 | 25 | 35 |
| 192250075 | 25 x 0.75 | 15.1 | 28 | 43.5 |
| 192250100 | 25 x 1 | 16.2 | 34.2 | 53.4 |
| 192250150 | 25 x 1.50 | 17.9 | 52.7 | 73.4 |
| 192250250 | 25 x 2.50 | 22.2 | 81.6 | 135.8 |
| 192300050 | 30 x 0.50 | 14 | 29.7 | 36 |
| 192300075 | 30 x 0.75 | 16.1 | 29.7 | 45 |
| 192300100 | 30 x 1 | 18.6 | 39.5 | 61.6 |
| 192300150 | 30 x 1.50 | 19.7 | 59.5 | 83 |
| 192320050 | 32 x 0.50 | 15.2 | 30.1 | 42.5 |
| 192320075 | 32 x 0.75 | 16.6 | 33 | 48.4 |
| 192340100 | 34 x 1 | 20.6 | 44 | 74.1 |
| 192340150 | 34 x 1.50 | 20.8 | 68.5 | 95.3 |
| 192360050 | 36 x 0.50 | 15.7 | 32 | 44.6 |
| 192360075 | 36 x 0.75 | 17.2 | 37 | 53.5 |
| 192400050 | 40 x 0.50 | 16.5 | 34.3 | 47.5 |
| 192400075 | 40 x 0.75 | 18.8 | 39.5 | 61 |
| 192400100 | 40 x 1 22.00 | 22 | 51 | 83.5 |
| 192420100 | 42 x 1 | 23.2 | 53.3 | 90.3 |
| 192420150 | 42 x 1.50 | 25.5 | 78.2 | 114 |
| 192500050 | 50 x 0.50 | 18.4 | 35.7 | 57.3 |
| 192500075 | 50 x 0.75 | 20.8 | 48 | 77.7 |
| 192500100 | 50 x 1 | 24.2 | 62.6 | 102.5 |
| 192500150 | 50 x 1.50 | 26.7 | 97.7 | 129 |
| 192610050 | 61 x 0.50 | 19.8 | 41.5 | 65.3 |
| 192610075 | 61 x 0.75 | 23.7 | 55.5 | 90 |
| 192610100 | 61 x 1 | 27.3 | 71 | 120.5 |
| 192610150 | 61 x 1.50 | 29.1 | 112 | 170.5 |
