This cable will be used as signal, connecting and control cable, predominantly for transmission of data in measurement and control technology. Suitable for use in dry and humid rooms. For fixed laying and flexible applications with undefined cable routing and without tensile stress.

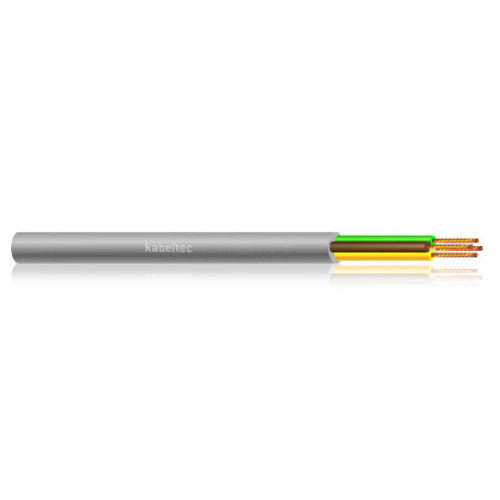

LIYY
Flexible data transmission cable
CONSTRUCTION:
- Fine strands of bare copper wire
- PVC core insulation marked as per DIN 47100
- Cores twisted into layers
- Available with or without foil
- PVC outer sheath grey, RAL 7001
- Stranding acc. to VDE 0295 class 5 (exception 0,34mm2 multi-wire)
Technical Data:
| Conductor Material | Copper, bare |
| Conductor class | Class 5 acc. to DIN VDE 0295 or IEC 60228 |
| Core insulation | PVC |
| Core identification | DIN 47100 |
| Stranding | Cores twisted in layers |
| Outer sheath | PVC |
| Sheath colour | Grey (RAL 7001) |
| Rated voltage [V] | 300 / 500 |
| Testing voltage [V] | 0,14 mm² = 1200 V > 0,14 mm² = 1500 |
| Conductor resistance | – |
| Insulation resistance | 20 MΩ x km |
| Current carrying capacity | DIN VDE (see technical guidelines) |
| Min. bending radius fixed [xd] | bis 12mm ∅: 5 x d bis 20mm ∅: 7.5 x d > 20mm ∅: 10 |
| Min. bending radius moved [xd] | bis 12mm ∅: 10 x d bis 20mm ∅: 15 x d > 20mm ∅: 20 |
| Working temp fixed min/max [C] | -30°C up to +80°C |
| Working temp moved min/mac [C] | -15°C up to +70°C Temp at conductor max. |
| Burning behaviour | IEC 60332-1: self-extinguishing and flame-retardant |
| Approvals | VDE 0812, 0814 and DIN 47414 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 22020014.00 | 2 x 0.14 | 3.20 | 0.27 | 1.20 |
| 22020025.00 | 2 x 0.25 | 3.70 | 0.50 | 1.70 |
| 22020034.00 | 2 x 0.34 | 4.40 | 0.70 | 2.40 |
| 22020050.00 | 2 x 0.50 | 4.80 | 0.96 | 2.60 |
| 22020075.00 | 2 x 0.75 | 5.20 | 1.44 | 4.80 |
| 22020100.00 | 2 x 1.00 | 5.60 | 1.90 | 6.10 |
| 22020150.00 | 2 x 1.50 | 6.80 | 2.90 | 6.00 |
| 22030014.00 | 3 x 0.14 | 3.50 | 0.40 | 1.70 |
| 22030025.00 | 3 x 0.25 | 4.00 | 0.72 | 2.10 |
| 22030034.00 | 3 x 0.34 | 4.50 | 1.00 | 2.80 |
| 22030050.00 | 3 x 0.50 | 5.10 | 1.44 | 3.10 |
| 22030075.00 | 3 x 0.75 | 5.50 | 2.20 | 5.70 |
| 22040014.00 | 4 x 0.14 | 3.60 | 0.54 | 1.90 |
| 22040025.00 | 4 x 0.25 | 4.40 | 0.96 | 2.70 |
| 22040034.00 | 4 x 0.34 | 5.00 | 1.30 | 3.90 |
| 22040050.00 | 4 x 0.50 | 5.40 | 1.90 | 4.20 |
| 22040075.00 | 4 x 0.75 | 6.10 | 2.90 | 6.90 |
| 22040100.00 | 4 x 1.00 | 6.50 | 3.84 | 8.50 |
| 22050014.00 | 5 x 0.14 | 3.90 | 0.67 | 2.20 |
| 22050025.00 | 5 x 0.25 | 4.80 | 1.20 | 3.20 |
| 22050034.00 | 5 x 0.34 | 5.80 | 1.60 | 4.40 |
| 22050050.00 | 5 x 0.50 | 6.10 | 2.40 | 4.70 |
| 22050075.00 | 5 x 0.75 | 7.00 | 3.60 | 7.70 |
| 22060014.00 | 6 x 0.14 | 4.20 | 0.81 | 2.50 |
| 22060025.00 | 6 x 0.25 | 5.10 | 1.44 | 4.00 |
| 22060034.00 | 6 x 0.34 | 6.00 | 2.00 | 5.50 |
| 22060050.00 | 6 x 0.50 | 6.60 | 2.90 | 6.20 |
| 22060075.00 | 6 x 0.75 | 7.30 | 4.32 | 10.30 |
| 22070014.00 | 7 x 0.14 | 4.20 | 1.00 | 2.70 |
| 22070025.00 | 7 x 0.25 | 5.30 | 1.70 | 4.20 |
| 22070034.00 | 7 x 0.34 | 6.30 | 2.28 | 6.00 |
| 22070050.00 | 7 x 0.50 | 6.80 | 3.40 | 6.50 |
| 22070075.00 | 7 x 0.75 | 7.50 | 5.00 | 12.50 |
| 22080014.00 | 8 x 0.14 | 4.70 | 1.10 | 3.00 |
| 22080025.00 | 8 x 0.25 | 5.80 | 1.90 | 5.10 |
| 22080034.00 | 8 x 0.34 | 6.70 | 2.61 | 6.30 |
| 22080050.00 | 8 x 0.50 | 7.50 | 3.90 | 7.80 |
| 22080075.00 | 8 x 0.75 | 8.30 | 5.90 | 12.30 |
| 22090014.00 | 9 x 0.14 | 5.20 | 1.20 | 3.30 |
| 22090025.00 | 9 x 0.25 | 6.20 | 2.16 | 5.30 |
| 22090034.00 | 9 x 0.34 | 7.60 | 2.94 | 7.64 |
| 22100014.00 | 10 x 0.14 | 5.30 | 1.34 | 4.10 |
| 22100025.00 | 10 x 0.25 | 6.40 | 2.40 | 6.10 |
| 22100034.00 | 10 x 0.34 | 7.50 | 3.30 | 7.65 |
| 22100050.00 | 10 x 0.50 | 8.20 | 4.80 | 9.20 |
| 22120014.00 | 12 x 0.14 | 5.60 | 1.60 | 4.80 |
| 22120025.00 | 12 x 0.25 | 6.80 | 2.90 | 7.10 |
| 22120034.00 | 12 x 0.34 | 7.80 | 8.80 | 8.50 |
| 22120050.00 | 12 x 0.50 | 8.70 | 5.80 | 12.10 |
| 22120075.00 | 12 x 0.75 | 10.10 | 8.70 | 17.90 |
| 22140014.00 | 14 x 0.14 | 5.80 | 1.90 | 5.40 |
| 22140025.00 | 14 x 0.25 | 7.40 | 3.40 | 7.50 |
| 22140034.00 | 14 x 0.34 | 8.20 | 4.60 | 10.00 |
| 22140050.00 | 14 x 0.50 | 10.80 | 6.72 | 13.00 |
| 22160014.00 | 16 x 0.14 | 6.10 | 2.15 | 6.00 |
| 22160025.00 | 16 x 0.25 | 7.60 | 3.84 | 8.10 |
| 22160034.00 | 16 x 0.34 | 8.70 | 5.20 | 11.70 |
| 22160075.00 | 16 x 0.75 | 11.40 | 11.60 | 23.00 |
| 22160050.00 | 16 x 0.50 | 10.20 | 7.70 | 14.60 |
| 22180014.00 | 18 x 0.14 | 7.00 | 2.42 | 7.20 |
| 22180025.00 | 18 x 0.25 | 8.60 | 4.30 | 10.40 |
| 22180034.00 | 18 x 0.34 | 9.80 | 5.90 | 13.52 |
| 22180050.00 | 18 x 0.50 | 12.00 | 8.64 | 16.60 |
| 22200014.00 | 20 x 0.14 | 6.90 | 2.70 | 7.30 |
| 22200025.00 | 20 x 0.25 | 8.50 | 4.80 | 10.50 |
| 22200034.00 | 20 x 0.34 | 10.00 | 6.50 | 14.60 |
| 22200075.00 | 20 x 0.75 | 12.60 | 14.40 | 27.40 |
| 22200050.00 | 20 x 0.50 | 11.70 | 9.70 | 17.60 |
| 22210014.00 | 21 x 0.14 | 7.20 | 2.80 | 7.70 |
| 22210025.00 | 21 x 0.25 | 9.10 | 5.30 | 12.00 |
| 22210034.00 | 21 x 0.34 | 10.10 | 6.90 | 16.10 |
| 22210050.00 | 21 x 0.50 | 13.00 | 10.08 | 18.40 |
| 22240014.00 | 24 x 0.14 | 7.50 | 3.23 | 9.40 |
| 22240025.00 | 24 x 0.25 | 9.70 | 5.90 | 12.50 |
| 22240034.00 | 24 x 0.34 | 11.20 | 7.90 | 17.10 |
| 22240050.00 | 24 x 0.50 | 12.70 | 11.60 | 22.10 |
| 22240075.00 | 24 x 0.75 | 14.30 | 17.60 | 29.70 |
| 22270014.00 | 27 x 0.14 | 7.80 | 3.60 | 8.50 |
| 22270025.00 | 27 x 0.25 | 10.20 | 6.48 | 15.30 |
| 22270034.00 | 27 x 0.34 | 11.60 | 8.80 | 18.82 |
| 22270050.00 | 27 x 0.50 | 14.70 | 12.96 | 24.40 |
| 22300014.00 | 30 x 0.14 | 8.20 | 4.10 | 9.60 |
| 22300025.00 | 30 x 0.25 | 10.50 | 7.20 | 16.80 |
| 22300034.00 | 30 x 0.34 | 11.80 | 9.80 | 20.62 |
| 22300050.00 | 30 x 0.50 | 13.80 | 14.40 | 27.20 |
| 22300075.00 | 30 x 0.75 | 15.30 | 21.70 | 39.40 |
| 22320014.00 | 32 x 0.14 | 8.40 | 4.30 | 10.50 |
| 22320025.00 | 32 x 0.25 | 10.70 | 7.70 | 18.20 |
| 22320034.00 | 32 x 0.34 | 12.20 | 10.60 | 22.30 |
| 22320050.00 | 32 x 0.50 | 14.00 | 15.36 | 29.10 |
| 22360014.00 | 36 x 0.14 | 8.80 | 4.90 | 11.40 |
| 22360025.00 | 36 x 0.25 | 11.20 | 8.70 | 20.00 |
| 22360034.00 | 36 x 0.34 | 12.60 | 11.80 | 24.42 |
| 22360050.00 | 36 x 0.50 | 14.80 | 17.28 | 31.40 |
| 22400014.00 | 40 x 0.14 | 9.40 | 5.40 | 12.70 |
| 22400025.00 | 40 x 0.25 | 12.00 | 9.60 | 21.00 |
| 22400034.00 | 40 x 0.34 | 13.30 | 13.00 | 29.90 |
| 22400050.00 | 40 x 0.50 | 15.60 | 19.20 | 34.50 |
| 22440014.00 | 44 x 0.14 | 9.80 | 5.90 | 14.53 |
| 22440025.00 | 44 x 0.25 | 13.40 | 10.56 | 24.90 |
| 22440034.00 | 44 x 0.34 | 14.40 | 14.40 | 29.20 |
| 22440050.00 | 44 x 0.50 | 17.50 | 21.12 | 39.20 |
| 22500014.00 | 50 x 0.14 | 10.50 | 6.80 | 15.40 |
| 22500025.00 | 50 x 0.25 | 13.40 | 12.20 | 27.80 |
| 22500034.00 | 50 x 0.34 | 15.00 | 16.32 | 33.70 |
| 22500050.00 | 50 x 0.50 | 19.40 | 24.00 | 44.00 |
| 22520014.00 | 52 x 0.14 | 10.70 | 7.00 | 16.34 |
| 22520025.00 | 52 x 0.25 | 13.90 | 12.48 | 28.70 |
| 22520034.00 | 52 x 0.34 | 15.10 | 17.00 | 33.80 |
| 22520050.00 | 52 x 0.50 | 19.80 | 24.96 | 45.40 |
| 22610014.00 | 61 x 0.14 | 11.50 | 8.20 | 19.05 |
| 22610025.00 | 61 x 0.25 | 14.50 | 14.70 | 33.80 |
| 22610034.00 | 61 x 0.34 | 16.00 | 19.90 | 39.00 |
| 22610050.00 | 61 x 0.50 | 20.80 | 29.28 | 53.60 |
| 22800014.00 | 80 x 0.14 | 16.10 | 10.80 | 23.50 |
| 22800025.00 | 80 x 0.25 | 19.60 | 19.20 | 53.40 |
| 22800034.00 | 80 x 0.34 | 22.00 | 26.40 | 51.10 |
| 22800050.00 | 80 x 0.50 | 24.30 | 38.40 | 70.40 |
| 221000014.00 | 100 x 0.14 | 19.00 | 13.50 | 25.00 |
| 221000025.00 | 100 x 0.25 | 23.10 | 24.00 | 66.70 |
| 221000034.00 | 100 x 0.34 | 25.40 | 32.70 | 63.90 |
| 221000050.00 | 100 x 0.50 | 29.60 | 48.00 | 88.00 |
