Used as junction or connecting cables in control, measuring and signalling technology as well as in data processing and office technology for lossless transmission of datas and signals. The tight copper screening provides optimum protection against external electrical interference.Suitable for use in dry and humid rooms. For fixed laying and flexible applications with undefined cable routing and without tensile stress. Due to high flexibility and reduced outer diameter, LIYY is ideally suited for use in connection of mobile equipment.

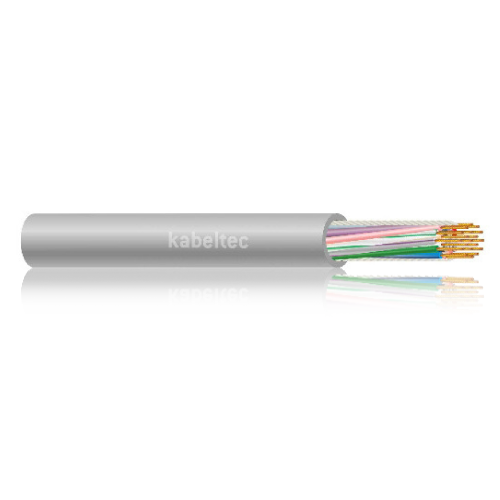

LIYY Paired
Flexible data transmission cable
CONSTRUCTION:
- Fine strands of bare copper wire
- Stranding acc. to VDE 0295 class 5 (exception 0,34mm2 multi-wire)
- Cores twisted into pairs
- Pairs twisted into layers
- PVC core insulation marked as per DIN 47100
- PVC outer sheath grey, RAL 7001 or 7032
TECHNICAL DATA:
| Conductor Material | Copper, bare |
| Conductor class | Class 5 acc. to DIN VDE 0295 or IEC 60228 |
| Core insulation | PVC |
| Core identification | DIN 47100 |
| Stranding | Cores twisted into pairs; Pairs stranded in layers |
| Outer sheath | PVC |
| Sheath colour | Grey (RAL 7032) |
| Rated voltage [V] | 350 |
| Testing voltage [V] | 0,14 mm² = 1200 V > 0,14 mm² = 1500 |
| Conductor resistance | – |
| Insulation resistance | 20 MΩ x km |
| Current carrying capacity | DIN VDE (see technical guidelines) |
| Min. bending radius fixed [xd] | up to 12mm Ø: 5 x d up to 20mm Ø: 7,5 x d > 20mm Ø: 10 |
| Min. bending radius moved [xd] | up to 12mm Ø: 10 x d up to 20mm Ø: 15 x d >20mm Ø: 20 |
| Working temp fixed min/max [C] | -30 °C up to +80°C |
| Working temp moved min/mac [C] | -15 °C up to +70°C Temp at conductor max. |
| Burning behaviour | IEC 60332-1-2: flame-retardant and self-extinguishing |
| Approvals | VDE 0812, 0814 and DIN 47414 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 24020014.00 | 2 x 2 x 0.14 | 5.00 | 0.60 | 2.55 |
| 24020025.00 | 2 x 2 x 0.25 | 6.20 | 1.00 | 3.80 |
| 24020034.00 | 2 x 2 x 0.34 | 7.60 | 1.31 | 4.40 |
| 24020050.00 | 2 x 2 x 0.5 | 8.00 | 2.00 | 7.20 |
| 24030014.00 | 3 x 2 x 0.14 | 5.10 | 0.81 | 3.20 |
| 24030025.00 | 3 x 2 x 0.25 | 6.40 | 1.44 | 4.80 |
| 24030034.00 | 3 x 2 x 0.34 | 8.10 | 1.96 | 5.60 |
| 24030050.00 | 3 x 2 x 0.5 | 8.10 | 2.90 | 8.30 |
| 24040014.00 | 4 x 2 x 0.14 | 5.60 | 1.10 | 3.85 |
| 24040025.00 | 4 x 2 x 0.25 | 7.00 | 1.90 | 5.90 |
| 24040034.00 | 4 x 2 x 0.34 | 8.50 | 2.61 | 6.90 |
| 24040050.00 | 4 x 2 x 0.5 | 8.70 | 38.40 | 11.50 |
| 24050014.00 | 5 x 2 x 0.14 | 6.00 | 1.40 | 4.55 |
| 24050034.00 | 5 x 2 x 0.34 | 9.70 | 3.26 | 9.00 |
| 24060014.00 | 6 x 2 x 0.14 | 6.30 | 1.61 | 5.20 |
| 24060025.00 | 6 x 2 x 0.25 | 8.00 | 2.90 | 8.00 |
| 24060034.00 | 6 x 2 x 0.34 | 10.50 | 3.92 | 11.50 |
| 24070034.00 | 7 x 2 x 0.34 | 10.50 | 4.57 | 11.50 |
| 24080025.00 | 8 x 2 x 0.25 | 9.40 | 3.84 | 9.80 |
| 24080034.00 | 8 x 2 x 0.34 | 11.40 | 5.22 | 12.90 |
| 24080050.00 | 8 x 2 x 0.5 | 12.40 | 7.70 | 20.80 |
| 24100014.00 | 10 x 2 x 0.14 | 8.20 | 2.70 | 7.75 |
| 24100025.00 | 10 x 2 x 0.25 | 10.70 | 4.80 | 11.50 |
| 24100034.00 | 10 x 2 x 0.34 | 13.00 | 6.53 | 16.60 |
| 24100050.00 | 10 x 2 x 0.5 | 13.20 | 9.70 | 25.00 |
| 24120014.00 | 12 x 2 x 0.14 | 8.50 | 3.30 | 9.45 |
| 24120025.00 | 12 x 2 x 0.25 | 11.00 | 5.76 | 13.00 |
| 24120034.00 | 12 x 2 x 0.34 | 13.50 | 7.83 | 19.00 |
| 24160014.00 | 16 x 2 x 0.14 | 9.30 | 4.30 | 10.05 |
| 24160025.00 | 16 x 2 x 0.25 | 12.60 | 7.68 | 17.40 |
| 24160034.00 | 16 x 2 x 0.34 | 14.90 | 10.44 | 24.00 |
| 24200025.00 | 20 x 2 x 0.25 | 13.80 | 9.60 | 20.90 |
| 24200034.00 | 20 x 2 x 0.34 | 16.40 | 13.06 | 29.00 |
| 24240025.00 | 24 x 2 x 0.25 | 15.30 | 11.52 | 24.70 |
| 24240034.00 | 24 x 2 x 0.34 | 18.30 | 15.68 | 34.30 |
| 24250014.00 | 25 x 2 x 0.14 | 12.00 | 6.70 | 16.90 |
| 24250025.00 | 25 x 2 x 0.25 | 15.70 | 12.00 | 25.60 |
| 24250034.00 | 25 x 2 x 0.34 | 19.10 | 16.32 | 37.20 |
| 24300014.00 | 30 x 2 x 0.14 | 12.40 | 8.20 | 19.30 |
| 24300025.00 | 30 x 2 x 0.25 | 16.30 | 14.40 | 29.50 |
| 24300034.00 | 30 x 2 x 0.34 | 19.80 | 19.58 | 42.90 |
| 24320014.00 | 32 x 2 x 0.14 | 13.90 | 8.60 | 20.40 |
| 24320025.00 | 32 x 2 x 0.25 | 16.90 | 15.36 | 31.30 |
| 24320034.00 | 32 x 2 x 0.34 | 10.60 | 20.89 | 45.60 |
| 24400014.00 | 40 x 2 x 0.14 | 15.00 | 10.75 | 24.50 |
| 24400025.00 | 40 x 2 x 0.25 | 18.20 | 19.20 | 37.90 |
| 24400034.00 | 40 x 2 x 0.34 | 22.30 | 26.11 | 55.10 |
| 24500014.00 | 50 x 2 x 0.14 | 16.00 | 13.50 | 35.30 |
| 24500025.00 | 50 x 2 x 0.25 | 20.90 | 24.00 | 48.10 |
| 24500034.00 | 50 x 2 x 0.34 | 25.60 | 32.64 | 69.80 |
| 24610014.00 | 61 x 2 x 0.14 | 17.80 | 16.40 | 39.10 |
| 24610025.00 | 61 x 2 x 0.25 | 22.20 | 29.28 | 56.90 |
| 24610034.00 | 61 x 2 x 0.34 | 27.50 | 39.82 | 85.00 |
