High flexible servo cables suitable for drag chains and in sectors where movements exist e.g. robotics. Cables are corresponding to Servomotors of well-known manufacturers as Siemens, Fanuc or Indramat.

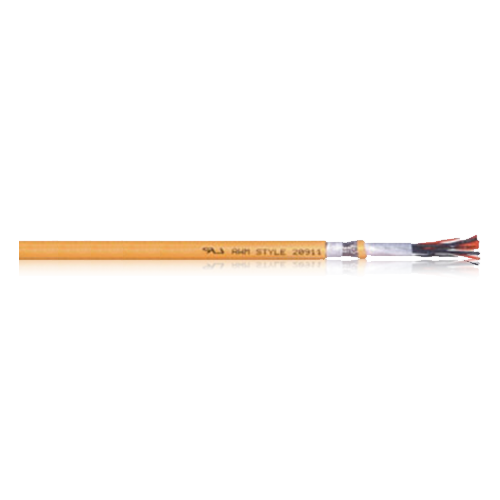

Motor cable for Fanuc-Systems
- CONSTRUCTION:
- Superfine copper conductor acc. to VDE 0295
- PUR outer sheath, petrol, flame-retardant, non-adhesive
- Tinned copper wire braiding
- UL approved
- TPE or PVC core insulation
- Core marking according to the latest standard
- Abrasion resistance, dimensions resistance
Technical Data:
| Conductor Material: | Copper |
| Conductor class: | Class 6 |
| Core insulation: | TPE or PVC |
| Core identification: | |
| Stranding: | |
| Outer sheath: | PUR |
| Sheath colour: | Yellow, black or green |
| Rated voltage [V]: | |
| Testing voltage [V]: | 4000 |
| Conductor resistance: | |
| Insulation resistance: | |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | |
| Min. bending radius moved [xd]: | 10 x d |
| Working temp fixed min/max [C]: | -30°C up to +90°C |
| Temp at conductor max.: | |
| Burning behaviour: | IEC 60332-1-2: flame-retardant and self-extinguishing |
| Approvals: | UL File Nr. 63634 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 96060050.00 | (3x2x0,5+3x2x0,18) x 0.00 | 8.20 | 8.10 | 21.50 |
| 96060100.00 | (3x2x1,0+3x2x0,18) x 0.00 | 9.80 | 26.90 | 47.30 |
| 96070350.00 | (7x3,5) x 0.00 | 16.50 | 26.90 | 47.30 |
| 2x0.50+4x2 x 0.22 gn | 2x0.50+4x2 x 0.22 gn | 7.60 | 7.20 | 12.00 |
| 3x2x0.18+6 x 0.50 gn | 3x2x0.18+6 x 0.50 gn | 8.70 | 10.50 | 18.90 |
| 3x2x0.18+6 x 1 gn | 3x2x0.18+6 x 1 gn | 8.70 | 14.00 | 25.20 |
| 5x0.50+2x2 x 0.18 gn | 5x0.50+2x2 x 0.18 gn | 7.60 | 9.40 | 16.90 |
| 5x2x0.18+6 x 0.50 gn | 5x2x0.18+6 x 0.50 gn | 8.70 | 11.40 | 20.50 |
| 10x2 x AWG 24 gn | 10x2 x AWG 24 gn | 9.00 | 6.00 | 12.10 |
