MULTINORM-H05V2-K-H07V2-K

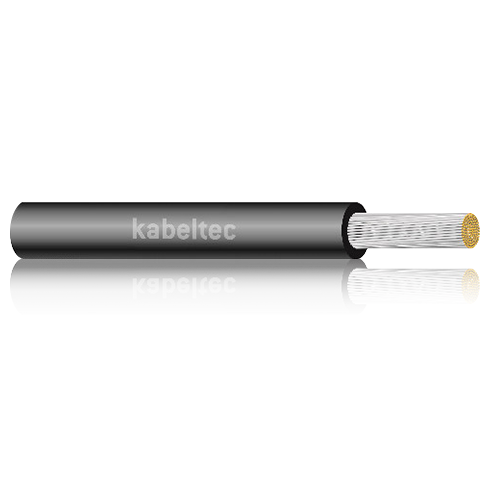

Multinorm H05V2-K/H07V2-K

PVC Single cores UL/CSA
TOTAL PRICE

SGD 0.00

Suitable in dry rooms for fixed and flexible laying. They may be used for exposed conduits or embedded conduits.

  • Fine stranded tinned copper conductor
  • Core insulation made of special PVC

TECHNICAL DATA:

Conductor Material:  bare copper
Conductor class:  Class 5
Core insulation:  special PVC
Core identification:
Stranding:
Outer sheath:
Sheath colour:  Available in various colours, see colour numbers
Rated voltage [V]:  H05V2-K: 300/500V | H07V2-K: 450/750V
Testing voltage [V]:  3000V
Conductor resistance:  max. 26,70 Ohm/km at 20°C
Insulation resistance:
Current carrying capacity:
Min. bending radius fixed [xd]:  5x d
Min. bending radius moved [xd]:  10x d
Working temp fixed min/max [C]:  -30°C bis +105°C
Working temp moved min/max [C]:  -5°C bis +105°C
Temp at conductor max.:
Burning behaviour:  flame retardant: IEC/EN 60332-1-2; VDE 0482-332-1-2;
 self-extinguishing, flame retardant UL1581
 VW-1/UL2556 FV-2; CSA FT1
Approvals:  UL-AWM758, CSA22.2 EN50525,UL 1063

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
1 x 0.5 2.5 0.48 1.03
1 x 0.75 2.7 0.72 1.1
1 x 1.00 2.8 0.96 1.57
1 x 1.50 3.1 1.44 2.1
1 x 2.50 3.65 2.4 2.99
1 x 4.00 4.3 3.84 4.61
1 x 6.00 4.82 5.8 6.61
1 x 10.0 6.5 9.6 11.42
1 x 16.0 8.8 15.4 19.23
1 x 25.0 9.8 24 26.97
1 x 35.00 11.3 34 36.73
1 x 50.0 13.5 48 55
1 x 95.00 18 95 112.6
1 x 0.5 2.5 0.48 1.03
1 x 0.75 2.7 0.72 1.1
1 x 1.00 2.8 0.96 1.57
1 x 1.50 3.1 1.44 2.1
1 x 2.50 3.65 2.4 2.99
1 x 4.00 4.3 3.84 4.61
1 x 6.00 4.82 5.8 6.61
1 x 10.0 6.5 9.6 11.42
1 x 16.0 8.8 15.4 19.23
1 x 25.0 9.8 24 26.97
1 x 35.00 11.3 34 36.73
1 x 50.0 13.5 48 55
1 x 95.00 18 95 112.6
