For use in sectors where a high temperature range is claim. Due to the materials of outer sheath and conductors the cable is suitable for use in modern automated manufacturing systems without restriction, for indoor and outdoor use.
MULTIPLUS-CP

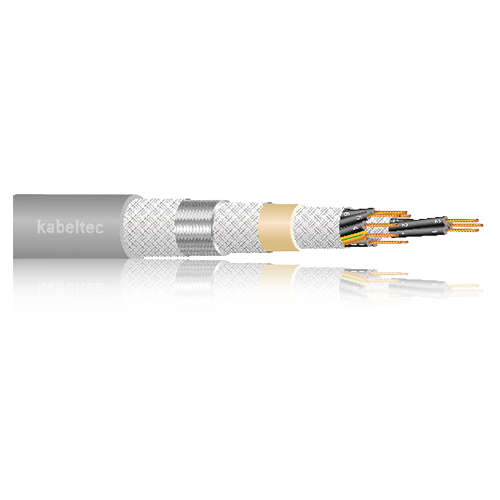

Super flexible control cable screened with core (TPE) and outer sheath (PUR) insulation
- CONSTRUCTION:
- Superfine strands of bare copper conductors
- Stranding acc. to VDE 0295 class 6
- Textile wrapped
- TPE inner sheath
- Earth conductor green/yellow in outer layer
- Cores twisted in layers
- TPE core insulation black with continuous white figure imprint
- Screen made of tinned copper wire
- PUR outer sheath grey, RAL 7001
- Microbe and hydrolysis-resistant, adhesion-free
- UV resistant
- Halogen free
Technical Data:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 6 acc. to VDE 0295 or IEC 60228 |
| Core insulation: | TPE |
| Core identification: | VDE 0293 |
| Stranding: | Cores twisted in layers |
| Outer sheath: | PUR |
| Sheath colour: | Grey (RAL 7032) |
| Rated voltage [V]: | 300 / 500 |
| Testing voltage [V]: | 3000 |
| Conductor resistance: | |
| Insulation resistance: | |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | 4 x d |
| Min. bending radius moved [xd]: | 7,5 x d |
| Working temp fixed min/max [C]: | -50°C up to +80°C |
| Working temp moved min/mac [C]: | -40°C up to +80°C |
| Temp at conductor max.: | |
| Burning behaviour: | IEC 60332-1-2: flame-retardant and self-extinguishing |
| Approvals: | VDE 0250/0285 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 288020050 | 2 x 0.50 OZ | 7.1 | 3.2 | 6.7 |
| 288020075 | 2 x 0.75 OZ | 7.7 | 4 | 7.9 |
| 288020100 | 2 x 1 OZ | 8 | 4.5 | 9.3 |
| 288020150 | 2 x 1.50 OZ | 8.6 | 5.8 | 11.5 |
| 288030050 | 3 x 0.50 | 7.4 | 4 | 7.9 |
| 288030075 | 3 x 0.75 | 8 | 4.7 | 9.6 |
| 288030100 | 3 x 1 | 8.5 | 5.5 | 10.9 |
| 288030150 | 3 x 1.50 | 9.3 | 7.6 | 13.9 |
| 288030250 | 3 x 2.50 | 11.1 | 11 | 19.4 |
| 288040075 | 4 x 0.75 | 8.6 | 5.8 | 11.2 |
| 288040100 | 4 x 1 | 9.1 | 8.8 | 12.6 |
| 288040150 | 4 x 1.50 | 10.2 | 9.1 | 15.6 |
| 288040250 | 4 x 2.50 | 12.1 | 13.6 | 23.4 |
| 288040400 | 4 x 4 | 18.2 | 24.6 | 43 |
| 288040600 | 4 x 6 | 16.7 | 34.9 | 58.8 |
| 288041000 | 4 x 10 | 22.5 | 51.8 | 91.5 |
| 288041600 | 4 x 16 | 25.8 | 78.9 | 125 |
| 288050050 | 5 x 0.50 | 8.6 | 5.3 | 10.7 |
| 288050075 | 5 x 0.75 | 9.4 | 6.5 | 12.6 |
| 288050100 | 5 x 1 | 10 | 8.1 | 14.7 |
| 288050150 | 5 x 1.50 | 11.3 | 11.1 | 19.8 |
| 288050250 | 5 x 2.50 | 13.2 | 18 | 29.3 |
| 288050400 | 5 x 4 | 20 | 29.4 | 50.5 |
| 288050600 | 5 x 6 | 18.5 | 43 | 71 |
| 288051000 | 5 x 10 | 24.8 | 63.9 | 102 |
| 288051600 | 5 x 16 | 28 | 103.2 | 160 |
| 288060050 | 6 x 0.50 | 9.1 | 5.9 | 12.1 |
| 288070050 | 7 x 0.50 | 9.8 | 6.7 | 13.2 |
| 288070075 | 7 x 0.75 | 11.1 | 8.5 | 16.5 |
| 288070100 | 7 x 1 | 11.8 | 10.6 | 19.6 |
| 288070150 | 7 x 1.50 | 12.9 | 14.5 | 25.4 |
| 288070250 | 7 x 2.50 | 16.1 | 24.6 | 41.8 |
| 288070400 | 7 x 4 | 18.6 | 36 | 67.8 |
| 288120050 | 12 x 0.50 | 11.5 | 9.7 | 19 |
| 288120075 | 12 x 0.75 | 12.7 | 12.7 | 23.1 |
| 288120100 | 12 x 1 | 13.6 | 17.5 | 29.2 |
| 288120150 | 12 x 1.50 | 15.4 | 34.2 | 41.6 |
| 288120250 | 12 x 2.50 | 18.5 | 37.7 | 62.9 |
| 288180050 | 18 x 0.50 | 13.3 | 13.1 | 24.5 |
| 288180075 | 18 x 0.75 | 15 | 19.8 | 33 |
| 288180100 | 18 x 1 | 16.6 | 24.2 | 41.8 |
| 288180150 | 18 x 1.50 | 18.1 | 34.6 | 56.4 |
| 288180250 | 18 x 2.50 | 22.1 | 56.9 | 91.2 |
| 288200050 | 20 x 0.50 | 13.9 | 15.6 | 28.1 |
| 288200075 | 20 x 0.75 | 16.2 | 21.3 | 38.1 |
| 288200100 | 20 x 1 | 17.3 | 26.9 | 45.8 |
| 288200150 | 20 x 1.50 | 19 | 37.7 | 63.3 |
| 288250050 | 25 x 0.50 | 16.2 | 19 | 36.7 |
| 288250075 | 25 x 0.75 | 18.2 | 25.9 | 45.9 |
| 288250100 | 25 x 1 | 19.9 | 57.5 | 57.5 |
| 288250150 | 25 x 1.50 | 22 | 48.6 | 81.1 |
| 288250250 | 25 x 2.50 | 26.3 | 76.5 | 126.3 |
| 288270250 | 27 x 0.50 | 15.6 | 19.9 | 38.2 |
| 288270100 | 27 x 1 | 19.3 | 34.8 | 60.3 |
| 288270150 | 27 x 1.50 | 21.4 | 51.5 | 85.1 |
| 288300050 | 30 x 0.50 | 16.4 | 22.2 | 40.8 |
| 288300075 | 30 x 0.75 | 18.3 | 29.6 | 50.8 |
| 288300100 | 30 x 1 | 20.2 | 37.7 | 63.5 |
| 288300150 | 30 x 1.50 | 22 | 56.8 | 91.1 |
| 288360050 | 36 x 0.50 | 17.4 | 25.1 | 45.9 |
| 288360075 | 36 x 0.75 | 20 | 34.8 | 60.5 |
| 288360100 | 36 x 1 | 21.8 | 46.7 | 75.8 |
| 288360150 | 36 x 1.50 | 24.3 | 65.5 | 106.6 |
