For use in sectors where a high temperature range is claim. Due to the materials of outer sheath and conductors the cable is suitable for use in modern automated manufacturing systems without restriction, for indoor and outdoor use.
MULTIPLUS-P

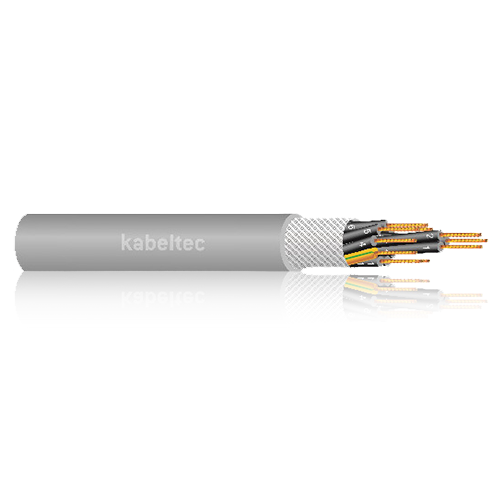

Super flexible control cable with core (TPE) and outer sheath (PUR) insulation
- CONSTRUCTION:
- Superfine strands of bare copper conductors
- Stranding acc. to VDE 0295 class 6
- TPE core insulation black with continuous white figure imprint
- Cores twisted in layers
- Earth conductor green/yellow in outer layer
- Textile wrapped
- PUR outer sheath grey, RAL 7001
- Microbe and hydrolysis-resistant, adhesion-free
- UV resistant
- Halogen-free and flame retardant (IEC 60332-1)
- Oil-resistant acc. DIN EN resp. IEC 60811-2-1
- Designed for up to 5 million bending/unbending cycles in the power chain
Technical Data:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 6 |
| Core insulation: | TPE |
| Core identification: | VDE 0293 |
| Stranding: | Cores twisted in layers |
| Outer sheath: | PUR- Oil-resistant acc. DIN EN resp. IEC 60811-2-1 |
| Sheath colour: | Grey (RAL 7001) |
| Rated voltage [V]: | 300 / 500 |
| Testing voltage [V]: | 3000 |
| Conductor resistance: | |
| Insulation resistance: | > 20 MΩ x km |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | 3 x d |
| Min. bending radius moved [xd]: | 5 x d |
| Working temp fixed min/max [C]: | -50°C up to +80°C |
| Working temp moved min/mac [C]: | -40°C up to +80°C |
| Temp at conductor max.: | |
| Burning behaviour: | halogen-free and flame-retardant (IEC 60332-1-2) |
| Approvals: | VDE 0250/0285 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 287020050.00 | 2 x 0.50 OZ | 5.40 | 1.00 | 3.40 |
| 287020075.00 | 2 x 0.75 OZ | 5.90 | 1.40 | 4.20 |
| 287020100.00 | 2 x 1 OZ | 6.30 | 1.90 | 5.00 |
| 287020150.00 | 2 x 1.50 OZ | 7.00 | 2.90 | 6.80 |
| 287030050.00 | 3 x 0.50 | 5.90 | 1.40 | 4.00 |
| 287030075.00 | 3 x 0.75 | 6.40 | 2.20 | 25.00 |
| 287030100.00 | 3 x 1 | 6.90 | 2.90 | 6.10 |
| 287030150.00 | 3 x 1.50 | 7.60 | 4.30 | 8.30 |
| 287030250.00 | 3 x 2.50 | 9.20 | 7.20 | 12.10 |
| 287040075.00 | 4 x 0.75 | 7.00 | 2.90 | 6.00 |
| 287040100.00 | 4 x 1 | 7.50 | 3.80 | 7.00 |
| 287040150.00 | 4 x 1.50 | 8.30 | 5.80 | 10.00 |
| 287040250.00 | 4 x 2.50 | 10.20 | 9.60 | 16.30 |
| 287040400.00 | 4 x 4 | 13.40 | 15.40 | 26.80 |
| 287040600.00 | 4 x 6 | 15.30 | 23.00 | 39.20 |
| 287041000.00 | 4 x 10 | 19.50 | 38.40 | 64.40 |
| 287041600.00 | 4 x 16 | 23.30 | 61.40 | 97.00 |
| 287050050.00 | 5 x 0.50 | 6.90 | 2.40 | 5.50 |
| 287050075.00 | 5 x 0.75 | 7.60 | 3.60 | 7.10 |
| 287050100.00 | 5 x 1 | 8.10 | 4.80 | 9.30 |
| 287050150.00 | 5 x 1.50 | 9.30 | 7.20 | 12.80 |
| 287050250.00 | 5 x 2.50 | 11.40 | 12.00 | 19.60 |
| 287050400.00 | 5 x 4 | 14.70 | 19.30 | 33.30 |
| 287050600.00 | 5 x 6 | 15.20 | 28.80 | 48.80 |
| 287051000.00 | 5 x 10 | 21.10 | 48.00 | 78.40 |
| 287051600.00 | 5 x 16 | 25.50 | 76.80 | 122.00 |
| 287060050.00 | 6 x 0.50 | 7.40 | 2.90 | 6.30 |
| 287070050.00 | 7 x 0.50 | 8.00 | 3.40 | 7.60 |
| 287070075.00 | 7 x 0.75 | 9.10 | 5.00 | 9.90 |
| 287070100.00 | 7 x 1 | 9.80 | 6.70 | 12.20 |
| 287070150.00 | 7 x 1.50 | 11.10 | 10.10 | 17.70 |
| 287070250.00 | 7 x 2.50 | 13.80 | 16.80 | 26.60 |
| 287070400.00 | 7 x 4 | 17.30 | 26.90 | 45.90 |
| 287070600.00 | 7 x 6 | 16.80 | 40.30 | 70.50 |
| 287071000.00 | 7 x 10 | 25.20 | 67.20 | 108.50 |
| 287080050.00 | 8 x 0.5 | 8.80 | 3.84 | 9.80 |
| 287120050.00 | 12 x 0.50 | 9.50 | 5.80 | 11.40 |
| 287120075.00 | 12 x 0.75 | 10.70 | 8.60 | 15.80 |
| 287120100.00 | 12 x 1 | 11.60 | 11.50 | 19.60 |
| 287120150.00 | 12 x 1.50 | 13.10 | 17.30 | 27.50 |
| 287120250.00 | 12 x 2.50 | 16.30 | 28.80 | 44.60 |
| 297180050.00 | 18 x 0.50 | 11.30 | 8.60 | 16.50 |
| 287180075.00 | 18 x 0.75 | 12.80 | 13.00 | 21.90 |
| 287180100.00 | 18 x 1 | 14.10 | 17.30 | 27.40 |
| 287180150.00 | 18 x 1.50 | 15.70 | 25.90 | 40.50 |
| 287180250.00 | 18 x 2.50 | 19.40 | 43.20 | 66.50 |
| 287200050.00 | 20 x 0.50 | 11.90 | 9.60 | 18.00 |
| 287200075.00 | 20 x 0.75 | 13.70 | 14.40 | 24.00 |
| 287200100.00 | 20 x 1 | 14.80 | 19.20 | 30.00 |
| 287200150.00 | 20 x 1.50 | 16.40 | 28.80 | 45.30 |
| 287250050.00 | 25 x 0.50 | 13.80 | 12.00 | 21.90 |
| 287250075.00 | 25 x 0.75 | 16.00 | 18.00 | 30.90 |
| 287250100.00 | 25 x 1 | 17.30 | 24.00 | 38.50 |
| 287250150.00 | 25 x 1.50 | 19.30 | 36.00 | 56.50 |
| 287250250.00 | 25 x 2.50 | 24.10 | 60.00 | 92.90 |
| 287300050.00 | 30 x 0.50 | 14.00 | 14.40 | 25.10 |
| 287300100.00 | 30 x 1 | 17.50 | 28.80 | 44.40 |
| 287300150.00 | 30 x 1.50 | 19.30 | 43.20 | 65.20 |
| 287360050.00 | 36 x 0.50 | 15.10 | 17.30 | 29.00 |
| 287360075.00 | 36 x 0.75 | 17.40 | 25.90 | 41.10 |
| 287360100.00 | 36 x 1 | 19.10 | 34.60 | 51.60 |
| 287360150.00 | 36 x 1.50 | 21.20 | 51.80 | 75.90 |
| 287410150.00 | 41 x 1.50 | 23.00 | 61.40 | 97.80 |
