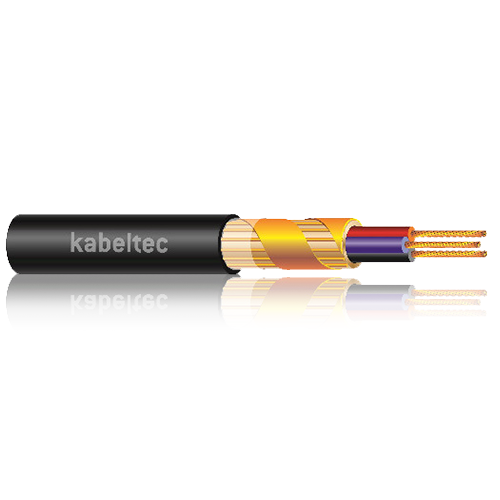

N2XCH

N2XCH

halogen power cables without functional integrity VDE 0266
TOTAL PRICE

SGD 0.00

Suitable as control and power cable in outdoor, indoor and in static installations but not in the underground and in water.

CONSTRUCTION:

  • Cores twisted concentrically
  • Core insulation made of XLPE
  • Strand structure according to VDE 0295, class 1, class 2 (for 25mm² and higher) (single or multi-wire conductors)
  • Plain copper conductors
  • Core marking in according to VDE 0293
  • Common halogen-free core sheathing
  • Concentric conductors of plain copper wire
  • Halogen free

RE: round conductor, single wire
RM: round conductor, multi wire
SM: sectorial conductor

TECHNICAL DATA:

Conductor Material Copper, bare
Conductor class Class 1, from 25mm² on Class 2
Core insulation XLPE
Core identification VDE 0293
Stranding Cores twisted concentrically
Outer sheath halogen free compound
Sheath colour Black
Rated voltage [V] 600 / 1000
Testing voltage [V] 4000
Conductor resistance *
Insulation resistance ≥ 20 MΩ x km
Current carrying capacity *
Min. bending radius fixed [xd] multi wire 12xØ / single wire: 15xØ
Min. bending radius moved [xd] multi wire 12xØ / single wire: 15xØ
Working temp fixed min/max [C] -40°C up to +90°C
Working temp moved min/mac [C] -5°C up to +90°C during installation
Temp at conductor max. 90°C
Burning behaviour IEC 60332-3, IEC 60332-1
Approvals VDE 0276-604

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
7090130000 1 x 300/16 RMv 306.2 339.8
709020150 2 x 1.5/1.5 RE 12.1 5.2 25
709020250 2 x 2.5/2.5 RE 13.3 8 28
709020400 2 x 4/4 RE 14 12.3 32
709020600 2 x 6/6 RE 15 18.2 41
709021000 2 x 10/10 RE 17 31.2 55
709021600 2 x 16/16 RE 19 48.9 78
709030150 3 x 1.5/1.5 RE 13.1 6.6 25
709030250 3 x 2.5/2.5 RE 14.5 10.4 32
709030400 3 x 4/4 RE 15.5 16.1 40
709030600 3 x 6/6 RE 16.1 24 50
709031000 3 x 10/10 RE 18.2 40.8 75
709031600 3 x 16/16 RE 19.7 64.3 100
709032500/16 3 x 25/16 RM 24.3 100.3 160
709033500/16 3 x 35/16 SM 28.2 140.2 190
709035000/25 3 x 50/25 SMv 31.3 200 240
709037000 3 x 70/35 SMv 34 241 261.5
709039500 3 x 95/50 SMv 38.1 329.6 363.6
7090312000 3 x 120/70 SMv 42.5 423.6 460.6
7090315000 3 x 150/70 SMv 47 510 555.2
7090318500 3 x 185/95 SMv 50 638.3 668
709032400 3 x 240/120 SMv 57.1 824.2 896.4
709040150 4 x 1.5/1.5 RE 14.1 8.1 23.5
709040250 4 x 2.5/2.5 RE 15.5 12.8 30.2
709040400 4 x 4/4 RE 15.9 20 41.1
709040600 4 x 6/6 RE 17.3 29.7 52.7
709041000 4 x 10/10 RE 19.2 50.4 76.2
709041600 4 x 16/16 RE 22.2 79.6 113.9
709042500/16 4 x 25/16 RM 28.6 114.2 163.4
709043500/16 4 x 35/16 SM 31.3 152.6 208
709045000/25 4 x 50/25 SMv 35.1 220.3 279
709047000/35 4 x 70/35 SMv 40.1 308.2 355
709049500/50 4 x 95/50 SMv 45.4 420.8 480
709041200/70 4 x 120/70 SMv 47 538.8 655.6
709041500/70 4 x 150/70 SMv 55 654 790.4
709041850/95 4 x 185/95 SMv 62 815.9 995
709042400/120 4 x 240/120 SMv 68 1054.6 1291.2
709050150 5 x 1.5/1.5 RE 14 9.5 28.3
709070150/2,5 7 x 1.5/2,5 RE 15.3 13.3 38
709070250/2,5 7 x 2.5/2,5 RE 15.1 20 48
709070400/4 7 x 4/4 RE 18.1 31.5 65
709070600/6 7 x 6/6 RE 21.1 47 85
709100250 10 x 2.5/4 RE 18 28.6 55
709120150/2.5 12 x 1.5/2.5 RE 19.3 20.5 55
709120250/4 12 x 2.5/4 RE 21.5 33.4 75
709140150 14 x 1.5/2.5 RE 17.6 23.4 55
709140150 14 x 1.5/2.5 RE 17.6 23.4 48.6
709210250 21 x 2.5/10 RE 23 62.4 105
709240150/6 24 x 1.5/6 RE 24.2 41.3 95
709240250 24 x 2.5/10 RE 26 69.6 110.6
709300150/6 30 x 1.5/6 RE 25.2 49.9 110
709300250 30 x 2.5/6 RE 28.3 84 150
709300250 30 x 2.5/10 RE 30 84 150
