Low-smoke, zero halogen, flame-retardant cable, for indoor and outdoor
installation as well as in concrete, but not for direct burial in earth or application in
water.

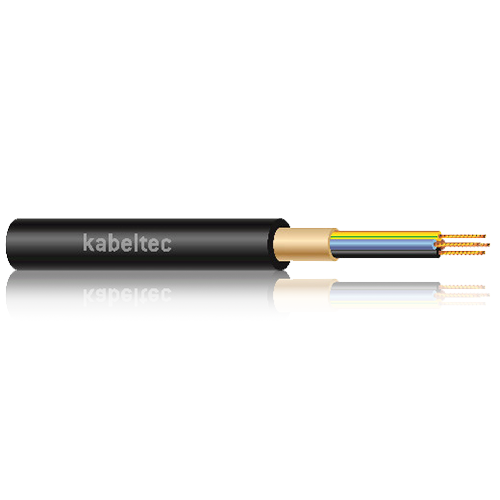

N2XH-O/-J
According to VDE 0276
CONSTRUCTION:
– core insulation made of XLPE
– structure according to VDE 0295, class 1, from 25MM² on class 2
– plain copper conductor
– cores twisted concentrically
– core coloured in according to VDE 0293
– common halogen-free core sheathing
– outer sheath halogen-free, black
– Bending radius: multi wire: 12xØ / single wire: 15xØ
RE: round conductor,
RM: round conductor, stranded
SM: sectorial conductor, stranded
Technical Data:
Conductor Material: Copper, bare
Conductor class: 1,5-16MM² class 1, < 25MM² class 2 EN 60228
Core insulation: XLPE
Core identification: VDE 0293 < 5 cores: number imprint
Stranding: Cores twisted concentrically
Outer sheath: Halogen-free polymer
Sheath colour: Black
Rated voltage [V]: 600 / 1000
Testing voltage [V]: 4000
Conductor resistance:
Insulation resistance: ≥ 20 MΩ x km
Current carrying capacity:
Min. bending radius fixed [xd]: 12 x d
Min. bending radius moved [xd]: 15 x d
Working temp fixed min/max [C]: -40°C up to +90°C
Working temp moved min/mac [C]: -5°C up to +90°C during installation
Temp at conductor max.: +90°C
Burning behaviour: flame-retardant: VDE 0482-266-2-4/IEC 60332-3-24 Cat C
Approvals: VDE 0276-604
HD 604 S1
BS EN 60228
BS 5099
BS EN 62230
IEC 60364
In accordance with the installation standard IEC 60364
and as applicable to the equivalent National Codes for the
rules for design, erection and verification of electrical
installations, DIN VDE 0100, CEI 20-60, NEN 1010 and NF
C15-100.
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| x | ||||
| 708010150 | 1 x 1.50 RE | 1.44 | 5.3 | |
| 708010250 | 1 x 2.50 RE | 2.4 | 9 | |
| 708010400 | 1 x 4 RE | 9.1 | 3.9 | 14 |
| 708010600 | 1 x 6 RE | 10.2 | 5.8 | 16 |
| 708011000 | 1 x 10 RE | 10.2 | 9.6 | 21 |
| 708011600 | 1 x 16 RE | 12.2 | 15.4 | 27 |
| 708012500 | 1 x 25 RM | 14.3 | 24 | 38 |
| 708013500 | 1 x 35 RM | 15.4 | 33.6 | 49 |
| 708015000 | 1 x 50 RMv | 15.8 | 48 | 62 |
| 708017000 | 1 x 70 RMv | 17.7 | 67.2 | 83 |
| 708019500 | 1 x 95 RMv | 20.2 | 91.2 | 120 |
| 7080112000 | 1 x 120 RMv | 22.4 | 115.2 | 150 |
| 7080115000 | 1 x 150 RMv | 24.4 | 144 | 170 |
| 7080118500 | 1 x 185 RMv | 25.8 | 177.6 | 220 |
| 7080124000 | 1 x 240 RMv | 28.6 | 230.4 | 275 |
| 7080130000 | 1 x 300 RMv | 32.8 | 288 | 330 |
| 7080140000 | 1 x 400 RMv | 32 | 384 | 442 |
| 7080150000 | 1 x 500 RMv | 37 | 480 | 486.6 |
| 7080163000 | 1 x 630 RMv | 604.8 | 665 | |
| 708020150 | 2 x 1.50 RE | 12.1 | 2.9 | 18 |
| 708020250 | 2 x 2.50 RE | 12.2 | 4.8 | 21 |
| 708020400 | 2 x 4 RE | 13.3 | 7.7 | 27 |
| 708020600 | 2 x 6 RE | 13.7 | 11.5 | 34 |
| 708021000 | 2 x 10 RE | 16.5 | 19.2 | 45 |
| 708021600 | 2 x 16 RE | 17.6 | 30.7 | 60 |
| 708022500 | 2 x 25 RM | 23.2 | 48 | 98 |
| 708030150 | 3 x 1.50 RE | 12.2 | 4.3 | 17.9 |
| 708030250 | 3 x 2.50 RE | 13.2 | 7.2 | 22.5 |
| 708030400 | 3 x 4 RE | 14.4 | 11.5 | 29.1 |
| 708030600 | 3 x 6 RE | 15.3 | 17.3 | 37.1 |
| 708031000 | 3 x 10 RE | 16.6 | 28.8 | 52.3 |
| 708031600 | 3 x 16 RE | 20.2 | 46.1 | 77.3 |
| 708032500 | 3 x 25 RE | 22 | 72 | 120 |
| 708032500/16 | 3 x 25/16 RM | 24 | 87.4 | 120 |
| 708033500 | 3 x 35 SM | 25 | 100.8 | 160 |
| 708033500/16 | 3 x 35/16 SM | 26 | 116.2 | 164 |
| 708035000/25 | 3 x 50/25 RM | 32.1 | 168 | 220 |
| 708035000 | 3 x 50 SMv | 26 | 144 | 180 |
| 703037000/35 | 3 x 70/35 RM | 37.5 | 235.2 | 295 |
| 708039500/50 | 3 x 95/50 RM | 41.5 | 321.6 | 390 |
| 7080312000/70 | 3 x 120/70 RM | 42.2 | 412.8 | 480 |
| 7080315000/70 | 3 x 150/70 RM | 48.3 | 499.2 | 575 |
| 7080318500/95 | 3 x 185/95 RM | 53.2 | 624 | 720 |
| 7080324000/120 | 3 x 240/120 RM | 57 | 806.4 | 915 |
| 7080330000/150 | 3 x 300/150 RM | 64 | 1008 | 1120 |
| 708040150 | 4 x 1.50 RE | 13.1 | 5.8 | 20.8 |
| 708040250 | 4 x 2.50 RE | 14.3 | 9.6 | 26.5 |
| 708040400 | 4 x 4 RE | 15.2 | 15.4 | 35.2 |
| 708040600 | 4 x 6 RE | 16.6 | 23 | 45.4 |
| 708041000 | 4 x 10 RE | 17.6 | 38.4 | 64.7 |
| 708041600 | 4 x 16 RE | 19.4 | 61.4 | 96.4 |
| 708042500 | 4 x 25 RM | 26.1 | 96 | 144.6 |
| 708043500 | 4 x 35 SM | 29.3 | 134.4 | 190.6 |
| 708045000 | 4 x 50 SMv | 32.3 | 192 | 253 |
| 708047000 | 4 x 70 SMv | 37.3 | 268.8 | 341.8 |
| 708049500 | 4 x 95 SMv | 40.4 | 364.8 | 457.4 |
| 7080412000 | 4 x 120 SMv | 48 | 460.8 | 530 |
| 7080415000 | 4 x 150 SMv | 50 | 576 | 635 |
| 7080418500 | 4 x 185 SMv | 53 | 710.4 | 780 |
| 7080424000 | 4 x 240 SMv | 58 | 921.6 | 1030 |
| 708050150 | 5 x 1.50 RE | 14.3 | 7.2 | 24.3 |
| 708050250 | 5 x 2.50 RE | 15.3 | 12 | 31 |
| 708050400 | 5 x 4 RE | 15.7 | 19.2 | 41.3 |
| 708050600 | 5 x 6 RE | 17.6 | 28.8 | 53.6 |
| 708051000 | 5 x 10 RE | 19.2 | 48 | 77.6 |
| 708051600 | 5 x 16 RE | 22.4 | 76.8 | 116.5 |
| 708052500 | 5 x 25 RM | 25 | 120 | 176.6 |
| 708053500 | 5 x 35 RM | 28.8 | 168 | 215.5 |
| 708055000 | 5 x 50 RM | 33 | 240 | 257 |
| 708057000 | 5 x 70 RM | 42.4 | 336 | 445 |
| 708059500 | 5 x 95 RM | 50 | 456 | 613 |
| 7080512000 | 5 x 120 RM | 51.3 | 576 | 748 |
| 7080515000 | 5 x 150 RM | 54 | 720 | 855 |
| 70805185000 | 5 x 185 RM | 56 | 888 | 988 |
| 70805240000 | 5 x 240 RM | 67 | 1152 | 1375 |
| 70805300000 | 5 x 300 RM | 75 | 1440 | 1620 |
| 708070150 | 7 x 1.50 RM | 14.2 | 10.1 | 20.6 |
| 708070250 | 7 x 2.50 RE | 15.1 | 16.8 | 28.7 |
| 708070400 | 7 x 4 RE | 15 | 26.9 | 53 |
| 708100150 | 10 x 1.50 RE | 17.1 | 14.4 | 28.7 |
| 708120150 | 10 x 2.50 RE | 18.3 | 24 | 47.2 |
| 708120150 | 12 x 1.50 RE | 17 | 17.3 | 32.8 |
| 708120250 | 12 x 2.50 RE | 18 | 28.8 | 47.2 |
| 708140150 | 14 x 1.50 RE | 19.4 | 20.2 | 38.3 |
| 708140250 | 14 x 2.50 RE | 19 | 33.6 | 67 |
| 708190150 | 19 x 1.50 RE | 21.4 | 27.4 | 48.4 |
| 708190250 | 19 x 2.50 RE | 21 | 45.6 | 84 |
| 708240150 | 24 x 1.50 RE | 22.5 | 34.6 | 60.3 |
| 708240250 | 24 x 2.50 RE | 25 | 57.6 | 105 |
| 708300150 | 30 x 1.5 RE | 23 | 43.2 | 73 |
| 708300250 | 30 x 2.50 RE | 26 | 72 | 123 |
| 708400150 | 40 x 1.50 RE | 26 | 57.6 | 120 |
