For installation in earth, indoors, outdoors and cable ducts for power stations, industry and distribution networks. For installation DIN/VDE 0298 part 1 is to be observed.

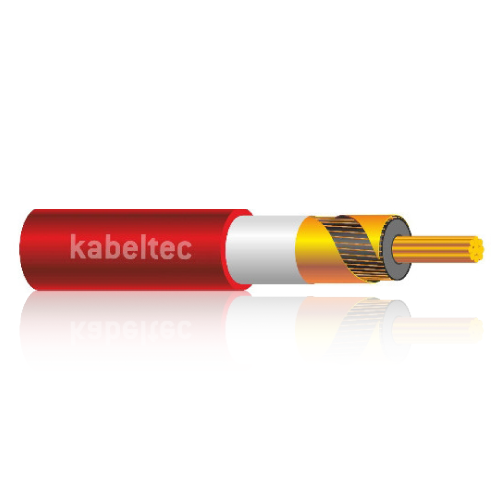

N2XSY
Single core VPE- insulated power cable according to VDE 0276
CONSTRUCTION:
- Stranded copper conductor
- Core insulation made of cross-linked polyethylene (XPLE)
- Conductor screen of semi-conducting compound
- Screen of semi-conduction compound plus copper wires and copper tape
- Separation tape
- Outer sheath made of PVC red VDE 0482-332-1-2
TECHNICAL DATA:
| Conductor Material | Copper, bare |
| Conductor class | Class 2, EN 60228 |
| Core insulation | Cross-linked polyethylene |
| Core identification | * |
| Stranding | * |
| Outer sheath | PVC |
| Sheath colour | Red |
| Rated voltage [V] | 6/10 (12) kV 12/20 (24) kV 18/30 (36) k |
| Testing voltage [V] | 6/10 kV: 21 kV |
| 12/20 kV | 42 kV |
| 18/30 kV | 63 k |
| Conductor resistance | * |
| Insulation resistance | * |
| Current carrying capacity | * |
| Min. bending radius fixed [xd] | 15 x d |
| Min. bending radius moved [xd] | * |
| Working temp fixed min/max [C] | 0°C up to +70 |
| Working temp moved min/mac [C] | -5°C up to +70 |
| Temp at conductor max | +90°C |
| Burning behaviour | flame-retardant: VDE 0482-332-1-2/IEC 60332-1 |
| Approvals | VDE 0276-620 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 830013500/16 | 1 x 35 / 16 6/10 kV | 24 | 51.8 | 92 |
| 832013500/16 | 1 x 35 / 16 18/30 kV | 33 | 51.8 | 135 |
| 831013500/16 | 1 x 35 /16 12/20kV | 28 | 51.8 | 110 |
| 830015000/16 | 1 x 50 / 16 6/10 KV | 25 | 66.2 | 110 |
| 831015000/16 | 1 x 50 / 16 12/20 kV | 29 | 66.2 | 125 |
| 832015000/16 | 1 x 50 / 16 18/30 kV | 34 | 66.2 | 155 |
| 830017000/16 | 1 x 70 / 16 6/10 kV | 27 | 85.4 | 130 |
| 831017000/16 | 1 x 70 / 16 12/20 kV | 31 | 85.4 | 150 |
| 832017000/16 | 1 x 70 / 16 18/30 kV | 36 | 85.4 | 175 |
| 830019500/16 | 1 x 95 / 16 6/10 kV | 28 | 109.4 | 160 |
| 831019500/16 | 1 x 95 / 16 12/20 kV | 32 | 109.4 | 180 |
| 832019500/16 | 1 x 95 / 16 18/30 kV | 37 | 109.4 | 205 |
| 8300112000/16 | 1 x 120 / 16 6/10 kV | 30 | 133.4 | 185 |
| 8310112000/16 | 1 x 120 / 16 12/20 kV | 34 | 133.4 | 205 |
| 8320112000/16 | 1 x 120 / 16 18/30 kV | 39 | 133.4 | 235 |
| 8300115000/25 | 1 x 150 / 25 6/10 kV | 31 | 172.3 | 220 |
| 8300115000/16 | 1 x 150 / 16 6/10 kV | 31 | 162.2 | 205 |
| 8310115000/25 | 1 x 150 / 25 12/20 kV | 35 | 172.3 | 240 |
| 8320115000/25 | 1 x 150 / 25 18/30 kV | 40 | 172.3 | 270 |
| 8300118500/25 | 1 x 185 / 25 6/10 kV | 33 | 205.9 | 255 |
| 8300118500/16 | 1 x 185 / 16 6/10 kV | 33 | 195.8 | 245 |
| 8310118500/25 | 1 x 185 / 25 12/20 kV | 37 | 205.9 | 280 |
| 8320118500/25 | 1 x 185 / 25 18/30 kV | 42 | 205.9 | 310 |
| 8300118500/16 | 1 x 185 /16 12/20 kv | 37 | 195.8 | 265 |
| 8300124000/25 | 1 x 240 / 25 6/10 kV | 35 | 258.7 | 315 |
| 8300124000/16 | 1 x 240 / 16 6/10 kV | 35 | 248.6 | 300 |
| 8310124000/25 | 1 x 240 / 25 12/20 kV | 40 | 258.7 | 340 |
| 8320124000/25 | 1 x 240 / 25 18/30 kV | 44 | 258.7 | 370 |
| 8300124000/16 | 1 x 240 /16 12/20 kv | 40 | 248.6 | 325 |
| 8300130000/25 | 1 x 300 / 25 6/10 kV | 37 | 316.3 | 375 |
| 8310130000/25 | 1 x 300 / 25 12/20 kV | 42 | 316.3 | 400 |
| 8320130000/25 | 1 x 300 / 25 18/30 kV | 47 | 316.3 | 435 |
| 8300140000/35 | 1 x 400 / 35 6/10 kV | 41 | 423.4 | 465 |
| 8310140000/35 | 1 x 400 / 35 12/20 kV | 45 | 423.4 | 495 |
| 8320140000/35 | 1 x 400 / 35 18/30 kV | 50 | 423.4 | 535 |
| 8300150000/35 | 1 x 500 / 35 6/10 kV | 44 | 519.4 | 570 |
| 8310150000/35 | 1 x 500 / 35 12/20 kV | 49 | 519.4 | 605 |
| 8320150000/35 | 1 x 500 / 35 18/30 kV | 53 | 519.4 | 645 |
| 8300163000/35 | 1 x 630 /35 12/20 kv | 53 | 644.2 | 709 |
| 8300163000/35 | 1 x 630 /35 18/30 kv | 644.2 | 783.3 | |
| 8300180000/35 | 1 x 800 /35 12/20 kv | 60 | 809.4 | 903.2 |
