For installation in ground, in water, outdoors, indoors and in cable ducts for power stations, industry, and distribution networks. The good installation properties of this cable make installation easy, even on difficult routes. Cables must be protected against direct sun irradiation.

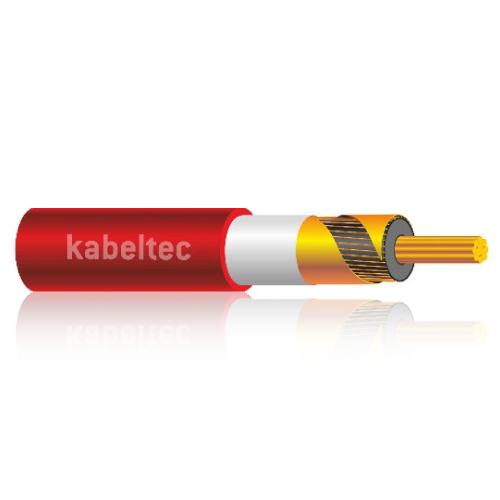

NA2XSY
Medium voltage cable
TECHNICAL DATA:
Conductor Material: Aluminium
Conductor class: Class 2
Core insulation: VPE
Core identification: *
Stranding: *
Outer sheath: PVC
Sheath colour: Red
Rated voltage [V]: 6/10 (12) kV
12/20 (24) kV
18/30 (36) k
Testing voltage [V]: 6/10 kV: 21 kV 12/20 kV: 42 kV 18/30 kV: 63 k
Conductor resistance: *
Insulation resistance: *
Current carrying capacity: *
Min. bending radius fixed [xd]: 15 x d
Min. bending radius moved [xd]: *
Working temp fixed min/max [C]: +70°C
Working temp moved min/mac [C]: -5 °C up to +70
Temp at conductor max: +90°C
Burning behaviour: flame-retardant: VDE 0482-332-1-2/IEC 60332-1
Approvals: VDE 0276-620
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 843015000/16 | 1 x 50 / 16 6/10 kV | 25 | 18.2 | 78 |
| 843015000/16 | 1 x 50 / 16 12/20 kV | 29 | 18.2 | 97 |
| 843015000/16 | 1 x 50 / 16 18/30 kV | 34 | 18.2 | 125 |
| 843017000/16 | 1 x 70 / 16 6/10 kV | 27 | 18.2 | 87 |
| 843017000/35 | 1 x 70 / 35 6/10 kV | 27 | 28.3 | 139.5 |
| 843017000/16 | 1 x 70 / 16 12/20 kV | 31 | 18.2 | 110 |
| 843017000/16 | 1 x 70 / 16 18/30 kV | 36 | 18.2 | 135 |
| 843017000/25 | 1 x 70 / 25 18/30 kV | 37 | 28.3 | 125 |
| 843019500/16 | 1 x 95 / 16 6/10 kV | 28 | 18.2 | 99 |
| 843019500/16 | 1 x 95 / 16 12/20 kV | 32 | 18.2 | 120 |
| 843019500/16 | 1 x 95 / 16 18/30 kV | 37 | 18.2 | 150 |
| 8430112000/16 | 1 x 120 / 16 6/10 kV | 30 | 18.2 | 110 |
| 8430112000/50 | 1 x 120 / 50 6/10 kV | 30 | 56 | 165.9 |
| 8430112000/16 | 1 x 120 / 16 12/20 kV | 34 | 18.2 | 135 |
| 8430112000/25 | 1 x 120 / 25 12/20 kV | 34.4 | 28.3 | 132 |
| 8430112000/16 | 1 x 120 / 16 18/30 kV | 39 | 18.2 | 160 |
| 8430115000/16 | 1 x 150 / 16 6/10 kV | 31 | 18.2 | 125 |
| 8430115000/25 | 1 x 150 / 25 6/10 kV | 31 | 28.3 | 130 |
| 8430115000/16 | 1 x 150 / 16 12/20 kV | 35 | 18.2 | 145 |
| 8430115000/25 | 1 x 150 / 25 12/20 kV | 35 | 28.3 | 150 |
| 8430115000/16 | 1 x 150 / 16 18/30 kV | 40 | 18.2 | 175 |
| 8430115000/25 | 1 x 150 / 25 18/30 kV | 40 | 28.3 | 185 |
| 8430118500/16 | 1 x 185 / 16 6/10 kV | 33 | 18.2 | 140 |
| 8430118500/25 | 1 x 185 / 25 6/10 kV | 33 | 28.3 | 145 |
| 8430118500/16 | 1 x 185 / 16 12/20 kV | 37 | 18.2 | 165 |
| 8430118500/25 | 1 x 185 / 25 12/20 kV | 37 | 28.3 | 170 |
| 8430118500/16 | 1 x 185 / 16 18/30 kV | 42 | 18.2 | 195 |
| 8430118500/25 | 1 x 185 / 25 18/30 kV | 42 | 28.3 | 200 |
| 8430124000/16 | 1 x 240 / 16 6/10 kV | 35 | 18.2 | 160 |
| 8430124000/25 | 1 x 240 / 25 6/10 kV | 35 | 28.3 | 165 |
| 8430124000/16 | 1 x 240 / 16 12/20 kV | 40 | 18.2 | 185 |
| 8430124000/25 | 1 x 240 / 25 12/20 kV | 40 | 28.3 | 190 |
| 8430124000/16 | 1 x 240 / 16 18/30 kV | 44 | 18.2 | 220 |
| 8430124000/25 | 1 x 240 / 25 18/30 kV | 44 | 28.3 | 225 |
| 8430130000/25 | 1 x 300 / 25 6/10 kV | 37 | 28.3 | 195 |
| 8430130000/25 | 1 x 300 / 25 12/20 kV | 42 | 28.3 | 220 |
| 8430130000/50 | 1 x 300 / 50 12/20 kV | 42 | 56 | 220 |
| 8430130000/25 | 1 x 300 / 25 18/30 kV | 47 | 28.3 | 255 |
| 8430140000/35 | 1 x 400 / 35 6/10 kV | 41 | 39.4 | 235 |
| 8430140000/35 | 1 x 400 / 35 12/20 kV | 45 | 39.4 | 260 |
| 8430140000/50 | 1 x 400 / 50 12/20 kV | 45 | 56 | 220 |
| 8430140000/35 | 1 x 400 / 35 18/30 kV | 50 | 39.4 | 300 |
| 8430150000/35 | 1 x 500 / 35 6/10 kV | 44 | 39.4 | 270 |
| 8430150000/35 | 1 x 500 / 35 12/20 kV | 48 | 39.4 | 300 |
| 8430150000/35 | 1 x 500 / 35 18/30 kV | 53 | 39.4 | 345 |
| 8430163000 | 1 x 630 /35 18/30 kv | 57.3 | 39.4 | 360.7 |
| 8430180000 | 1 x 800 / 35 6/10kv | 39.4 | 397.3 |
