For fixed installation in buildings, in free air, in ground and in water.

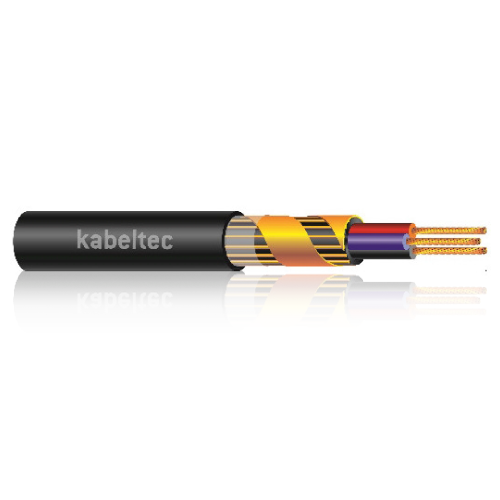

NAYCWY
Power cable
CONSTRUCTION:
– Conductor material: aluminium
– Insulation: PVC DIV 4
– Concentric conductor: Cu
– Sheating material: PVC DMV 5
– Colour of outer sheath: black
– Meter mark: yes
– Flame redardant: VDE 0482-332-1-2/IEC 60332-1
– UV-resistant: yes
– Max. temperature at conductor: 70°C
– Max. operating temp. (fixed): 70°C
– Temp. moved/during installation: -5 up to + 70°C
TECHNICAL DATA:
Conductor Material: Copper ,bare
Conductor class: Class 1 or 2
Core insulation: PVC
Core identification: colored acc. to HD 308; more than 5 cores: numbers
Stranding: cores twisted concentrically
Outer sheath: PVC
Sheath colour: Black
Rated voltage [V]: 600 / 1000
Testing voltage [V]: 4000
Conductor resistance: DIN VDE 0295 class 1 or 2 resp. IEC 60228 cl. 1 or 2
Insulation resistance: *
Current carrying capacity: DIN VDE
Min. bending radius fixed [xd]: 12 x d
Min. bending radius moved [xd]: *
Working temp fixed min/max [C]: -40°C up to +70
Working temp moved min/mac [C]: -5°C up to +70
Temp at conductor max: +70°C
Burning behaviour: VDE 0472-804-B and IEC 60332-1
Approvals: RE: solid round conductor RM: stranded round conductor
SM: sector-shaped conductor, VDE 0276-603
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 8202041600.00 | 4 x 16 / 16 RE | 22.00 | 18.20 | 95.00 |
| 8202042500.00 | 4 x 25 / 16 RM | 26.00 | 18.20 | 115.00 |
| 8202043500.00 | 4 x 35 / 16 SM | 27.00 | 18.20 | 120.00 |
| 8202045000.00 | 4 x 50 / 25 SMv | 31.00 | 28.30 | 160.00 |
| 8202047000.00 | 4 x 70 / 35 SMv | 35.00 | 39.40 | 225.00 |
| 8202049500.00 | 4 x 95 / 50 SMv | 42.00 | 56.00 | 290.00 |
| 820204120000.00 | 4 x 120 / 70 SMv | 45.00 | 78.00 | 350.00 |
| 820204150000.00 | 4 x 150 / 70 SMv | 48.00 | 78.00 | 420.00 |
| 82020418500 | 4 x 185 / 95 SMv | 53.00 | 105.50 | 495.00 |
| 82020424000 | 4 x 240 / 120 SMv | 60.00 | 133.00 | 560.00 |
