Suitable as control and power cable for installation indoor, outdoor, in earth and water.

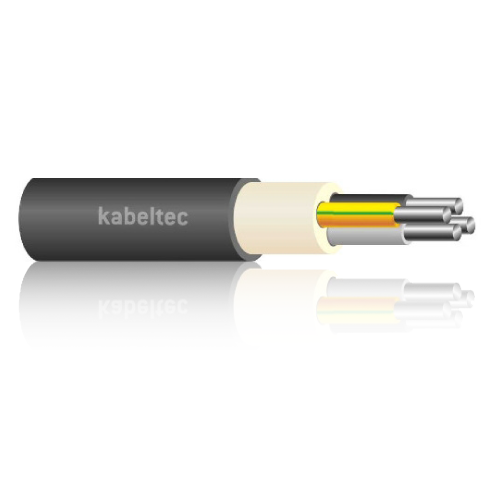

NAYY-J/O
PVC insulated high voltage cable with aluminium wire According to VDE 0271
CONSTRUCTION:
– aluminium conductor
– core insulation made of PVC
– conductor structure according to VDE 0295, class 1 or class 2, single wire conductors
– cores twisted concentrically
– core marking: black, grey, brown, green/yellow
– outer sheath made of PVC, black, flame-retardant
– Bending radius: 12 x Ø RE: round conductor, solid RM: round conductor, stranded SM: sectorial conductor, stranded
TECHNICAL DATA:
Conductor Material: Aluminium
Conductor class: Class 1 or 2
Core insulation: PVC
Core identification: VDE 0293, Core marking: black, grey, brown,
green/yellow
Stranding: cores twisted concentrically
Outer sheath: PVC
Sheath colour: Black
Rated voltage [V]: 600 / 1000
Testing voltage [V]: 4000
Conductor resistance: *
Insulation resistance: *
Current carrying capacity: *
Min. bending radius fixed [xd]: *
Min. bending radius moved [xd]: *
Working temp fixed min/max [C]: -30°C up to +70
Working temp moved min/mac [C]: -5°C up to +50
Temp at conductor max: +70°C
Burning behaviour: IEC 60332-1
Approvals: VDE 0276-603
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 822010160.00 | 1 x 16 RE | 10.50 | 4.64 | 14.50 |
| 822010250.00 | 1 x 25 RE | 12.00 | 7.25 | 19.50 |
| 822010350.00 | 1 x 35 RE | 13.50 | 10.15 | 25.50 |
| 822010500.00 | 1 x 50 RE | 15.00 | 14.50 | 29.80 |
| 822010700.00 | 1 x 70 RMv | 17.00 | 20.30 | 38.30 |
| 822010950.00 | 1 x 95 RMv | 19.00 | 27.50 | 49.00 |
| 822011200.00 | 1 x 120 RMv | 20.00 | 34.80 | 57.50 |
| 822011500.00 | 1 x 150 RMv | 22.00 | 43.50 | 69.50 |
| 822011850 | 1 x 185 RMv | 25.00 | 53.60 | 84.50 |
| 822012400 | 1 x 240 RMv | 28.00 | 69.60 | 110.00 |
| 822013000 | 1 x 300 RMv | 30.00 | 87.00 | 137.90 |
| 822014000 | 1 x 400 RMv | 34.00 | 116.00 | 161.50 |
| 822015000 | 1 x 500 RMv | 37.00 | 145.00 | 201.50 |
| 822016300 | 1 x 630 RMv | 43.00 | 182.70 | 247.20 |
| 822041600 | 4 x 16 RE | 23.00 | 18.60 | 75.00 |
| 822042500 | 4 x 25 RE | 27.00 | 29.00 | 95.00 |
| 822043500 | 4 x 35 RE | 29.00 | 40.60 | 110.00 |
| 822045000 | 4 x 50 SE | 31.00 | 58.00 | 120.00 |
| 822047000 | 4 x 70 SE | 36.00 | 81.20 | 160.00 |
| 822049500 | 4 x 95 SE | 40.00 | 110.20 | 210.00 |
| 8220412000 | 4 x 120 SE | 44.00 | 139.20 | 240.00 |
| 8220415000 | 4 x 150 SE | 47.00 | 174.00 | 300.00 |
| 8220418500 | 4 x 185 SE | 52.00 | 214.60 | 370.00 |
| 8220424000 | 4 x 240 SE | 61.00 | 278.40 | 500.00 |
