Neoprene-sheathed flat cables are weatherproof. This cable can be used in dry, damp, wet rooms or outdoors. Used up to harsh mechanical strain and banding load along a single level during operation. Due to the individual core screening there is an additional stability, which causes a free-interference transmission of data and signals (EMC). Suitable for use in dry and moist rooms as well as outdoor.

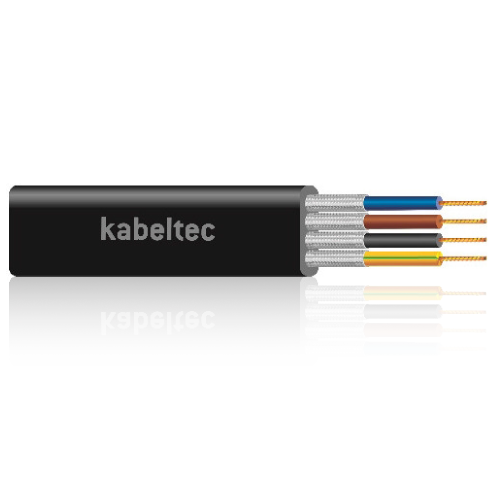

NEO-FLAT-CY/M(STD)HOU
(EMV) Flat cabel of neoprene, screened
CONSTRUCTION:
- Super fine bare copper conductor
- Structure according to VDE 0295, class 5 or 6
- Core marking: up to 5 cores colour coded according to VDE 0293 7 cores and over black with printed consecutive number coding
- Rubber-insulated cores
- Earth conductor green/yellow
- Copper wire braid around each core
- Neoprene outer sheath, black
- Suitable in low temperatures
- EMC
TECHNICAL DATA:
| Conductor Material | Bare copper |
| Conductor class | Class 5 |
| Core insulation | Rubber insulated |
| Core identification |
Up to 5 cores colour coded in accordance to VDE 0293, 6 cores and more black with printed consecutive number coding
|
| Stranding | Cores side by side |
| Outer sheath | Neoprene, special rubber-compund |
| Sheath colour | Black (RAL 9005) |
| Rated voltage [V] | 0,6/1kV |
| Testing voltage [V] | 3500 |
| Conductor resistance | |
| Insulation resistance | |
| Current carrying capacity | DIN VDE (s. technical guidelines) |
| Min. bending radius fixed [xd] | DIN VDE 0298 part 3 |
| Min. bending radius moved [xd] | DIN VDE 0298 part 3 |
| Working temp fixed min/max [C] | -40°C up to +80 |
| Working temp moved min/mac [C] | -30°C up to +80 |
| Temp at conductor max | +90°C |
| Burning behaviour | IEC 60332-1: flame-retardant and self-extinguishing |
| Approvals |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 681040100.00 | 4 x (2x1) | 11.8 x 33.5 | 27.30 | 59.00 |
| 681040150.00 | 4 x 1.50 | 8.0 x 21.5 | 11.50 | 35.00 |
| 681040250.00 | 4 x 2.50 | 8.7 x 24.1 | 16.40 | 41.70 |
| 681040400.00 | 4 x 4 | 9.5 x 27.6 | 24.10 | 56.20 |
| 681040600.00 | 4 x 6 | 10.5 x 30.1 | 35.30 | 60.30 |
| 681041000.00 | 4 x 10 | 12.1 x 36.7 | 49.70 | 93.40 |
| 681041600.00 | 4 x 16 | 13.7 x 41.5 | 80.50 | 129.30 |
| 681042500.00 | 4 x 25 | 15.5 x 47.0 | 120.00 | 164.70 |
| 681043500.00 | 4 x 35 | 17.1 x 53.2 | 165.70 | 232.50 |
| 681045000.00 | 4 x 50 | 19.7 x 61.6 | 226.10 | 316.90 |
| 681047000.00 | 4 x 70 | 24.0 x 77.0 | 325.90 | 474.20 |
| 681049500.00 | 4 x 95 | 25.3 x 81.9 | 431.10 | 566.40 |
| 681060250.00 | 6 x 2.50 | 8.7 x 33.5 | 24.60 | 57.40 |
| 7 x (2x1) | 7 x (2x1) | 12.5 x 59.0 | 43.00 | 106.00 |
| 681080150.00 | 8 x 1.50 | 8.0 x 38.6 | 22.80 | 54.20 |
| 681120150.00 | 12 x 1.50 | 8.0 x 57.1 | 34.20 | 89.60 |
| 681120250.00 | 12 x 2.50 | 8.7 x 64.0 | 49.30 | 114.00 |
