Neoprene-sheathed flat cables are weatherproof. This cable can be used in dry, damp, wet rooms or outdoors. Used up to harsh mechanical strain and banding load along a single level during operation. Due to the individual core screening there is an additional stability, which causes a free-interference transmission of data and signals (EMC). Suitable for use in dry and moist rooms as well as outdoor.

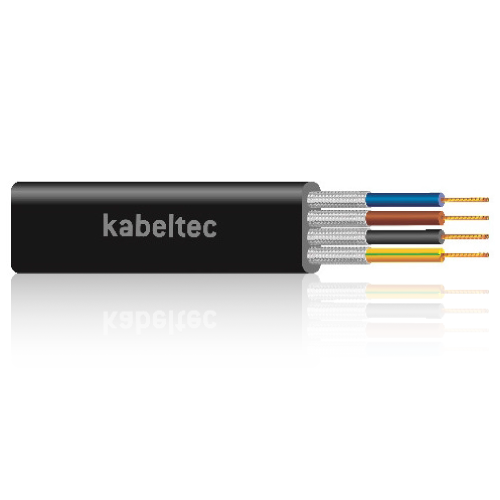

NEO-FLAT-CY UL
(EMV) Flat cabel of neoprene, screened
CONSTRUCTION:
- Super fine bare copper conductor
- Structure according to VDE 0295, class 5 or 6
- Core marking: up to 5 cores colour coded according to VDE 0293 7 cores and over black with printed consecutive number coding
- Rubber-insulated cores
- Earth conductor green/yellow
- Copper wire braid around each core
- Neoprene outer sheath, black
- Suitable in low temperatures
- EMC
- UL Style 4540
TECHNICAL DATA:
| Conductor Material | Bare copper |
| Conductor class | Class 5/6 |
| Core insulation | Rubber insulated |
| Core identification |
Up to 5 cores colour coded in accordance to VDE 0293, 6 cores and more black with printed consecutive number coding
|
| Stranding | Cores side by side |
| Outer sheath | Neoprene, special rubber-compund |
| Sheath colour | Black (RAL 9005) |
| Rated voltage [V] | 600 |
| Testing voltage [V] | 2000 |
| Conductor resistance | |
| Insulation resistance | |
| Current carrying capacity | DIN VDE (s. technical guidelines) |
| Min. bending radius fixed [xd] | DIN VDE 0298 part 3 |
| Min. bending radius moved [xd] | DIN VDE 0298 part 3 |
| Working temp fixed min/max [C] | -40°C up to +80 |
| Working temp moved min/mac [C] | -30°C up to +80 |
| Temp at conductor max | +90°C |
| Burning behaviour | IEC 60332-1: flame-retardant and self-extinguishing |
| Approvals | UL Style 4540 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 681042100UL | 4 x (2x1) -O | 11.8x33.5 | 27.30 | 59.00 |
| 681040150UL | 4 x 1.5 | 8.0x21.5 | 9.90 | 29.00 |
| 681040250UL | 4 x 2.5 | 8.7x24.1 | 16.30 | 37.00 |
| 681040400UL | 4 x 4 | 9.5x27.6 | 24.10 | 50.00 |
| 681040600UL | 4 x 6 | 10.5x30.1 | 35.30 | 61.00 |
| 681041000UL | 4 x 10 | 12.1x36.7 | 49.70 | 91.00 |
| 681041600UL | 4 x 16 | 13.7x41.5 | 80.50 | 132.00 |
| 681042500UL | 4 x 25 | 15.5x47.0 | 120.00 | 172.00 |
| 681043500UL | 4 x 35 | 17.0x53.2 | 165.70 | 233.00 |
| 681045000UL | 4 x 50 | 19.7x61.6 | 226.10 | 311.00 |
| 681047000UL | 4 x 70 | 24.0x77.0 | 325.90 | 467.00 |
| 681049500UL | 4 x 95 | 25.3x81.9 | 431.10 | 551.00 |
| 681060250UL | 6 x 2.5 | 8.7x33.5 | 24.50 | 53.00 |
| 681072100UL | 7 x (2x1) -O | 12.5x59.0 | 43.00 | 106.00 |
| 681080150UL | 8 x 1.5 | 8.0x38.6 | 22.80 | 55.00 |
| 681120150UL | 12 x 1.5 | 8.0x57.1 | 34.20 | 81.00 |
| 681120250UL | 12 x 2.5 | 8.7x64.0 | 49.30 | 105.00 |
