Developed as control cable for elevators, machine tool and other machinery with high strain indoors and outdoors. This cable is not suitable as drum reeling cable.

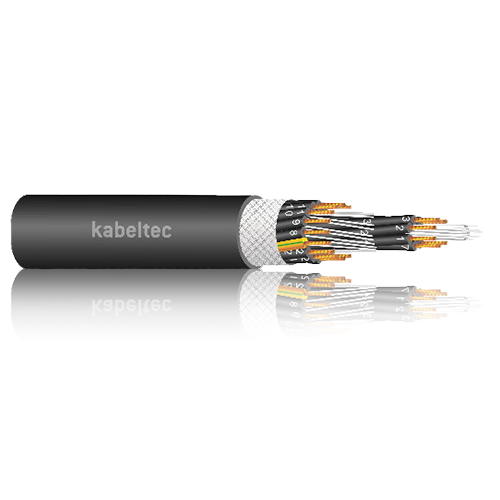

NEOPREN
Neoprene cable with strainer
CONSTRUCTION:
- Bare copper conductor
Core marking: 1 to 5 cores: according to VDE 0293 (colour coded) > 7 cores: number coded (JZ)
EPR insulated cores
Supporting core to relieve stress
Outer sheath made of neoprene black
Flame-retardant
Bending radius: 12,5 x Ø
Resistant to oil: EN 60811-2-1
TECHNICAL DATA:
Conductor Material: Bare copper
Conductor class: Class 5
Core insulation: P insulated cores
Core identification: 1 to 5 cores: according to VDE 0293 (colour coded), > 7
cores: number coded (JZ)
Stranding: *
Outer sheath: Neoprene
Sheath colour: Black (RAL 9005)
Rated voltage [V]: 300 / 500
Testing voltage [V]: 3000
Conductor resistance: *
Insulation resistance: *
Current carrying capacity: *
Min. bending radius fixed [xd]: 12,5 x d
Min. bending radius moved [xd]: 12,5 x d, 20 x d
Working temp fixed min/max [C]: -40°C up to +80
Working temp moved min/mac [C]: -25°C up to +60
Temp at conductor max: +90°C
Burning behaviour: IEC 60332-2-1: self-extinguishing and flame retardant
Approvals: DIN VDE 0250
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 62020100 | 2 x 1 | 7.4 | 2 | 9.1 |
| 62020150 | 2 x 1.50 | 8 | 3 | 10.8 |
| 62020250 | 2 x 2.50 | 9.7 | 4.9 | 14.3 |
| 62030100 | 3 x 1 | 9.5 | 3.1 | 11.6 |
| 62030150 | 3 x 1.50 | 9.5 | 4.6 | 14.1 |
| 62030250 | 3 x 2.50 | 10.2 | 7.5 | 17.3 |
| 62040100 | 4 x 1 | 8.9 | 4 | 14.2 |
| 62040150 | 4 x 1.50 | 11.8 | 6.2 | 22 |
| 62040250 | 4 x 2.50 | 11.3 | 10.3 | 24.2 |
| 62040400 | 4 x 4 | 17.2 | 15.7 | 40 |
| 62040600 | 4 x 6 | 18.8 | 25.1 | 52.4 |
| 62041000 | 4 x 10 | 21.8 | 39.3 | 72.5 |
| 62041600 | 4 x 16 | 25.4 | 62.9 | 102.8 |
| 62050100 | 5 x 1 | 10.4 | 4.8 | 17.1 |
| 62050150 | 5 x 1.50 | 12 | 7.8 | 23 |
| 62050250 | 5 x 2.50 | 12.4 | 13.5 | 28.9 |
| 62050400 | 5 x 4 | 16.8 | 19.7 | 43.3 |
| 62050600 | 5 x 6 | 19.2 | 29.5 | 56.9 |
| 62051000 | 5 x 10 | 24.6 | 49.1 | 92.3 |
| 62051600 | 5 x 16 | 28 | 78.7 | 126 |
| 62070100 | 7 x 1 | 11.8 | 7.2 | 23 |
| 62070150 | 7 x 1.50 | 12.8 | 11 | 27 |
| 62070250 | 7 x 2.50 | 14.8 | 18.9 | 34.6 |
| 62080150 | 8 x 1.50 | 13.8 | 11.7 | 31 |
| 62080250 | 8 x 2.50 | 16.6 | 19.2 | 45.1 |
| 62090100 | 9 x 1 | 13.6 | 9.1 | 28.1 |
| 62090150 | 9 x 1.50 | 14.8 | 14 | 33.5 |
| 62090250 | 9 x 2.50 | 18.9 | 22.9 | 54.2 |
| 62100150 | 10 x 1.50 | 17 | 15.3 | 40.6 |
| 62110150 | 11 x 1.50 | 20.1 | 15.8 | 45.8 |
| 62120100 | 12 x 1 | 15.9 | 12.6 | 39 |
| 62120150 | 12 x 1.50 | 19 | 18.2 | 51 |
| 62120250 | 12 x 2.50 | 21.9 | 34.1 | 71 |
| 62130150 | 13 x 1.50 | 22.1 | 18.7 | 57.1 |
| 62150150 | 15 x 1.50 | 23.6 | 22.9 | 59 |
| 62160100 | 16 x 1 | 16.4 | 15.7 | 43 |
| 62160250 | 16 x 2.50 | 24.4 | 38.4 | 81.3 |
| 62180100 | 18 x 1 | 17.3 | 19.4 | 47.5 |
| 62180150 | 18 x 1.50 | 19.4 | 28.8 | 63 |
| 62180250 | 18 x 2.50 | 24.9 | 46.3 | 88 |
| 62190150 | 19 x 1.50 | 21.7 | 29.2 | 67 |
| 62200100 | 20 x 1 | 20.5 | 20.6 | 51 |
| 62240100 | 24 x 1 | 20.6 | 26.1 | 65 |
| 62240150 | 24 x 1.50 | 22.4 | 37.4 | 82 |
| 62240250 | 24 x 2.50 | 26.4 | 58.9 | 120 |
| 62360100 | 36 x 1 | 24.3 | 40 | 94 |
| 62360250 | 36 x 2.50 | 33.3 | 86.4 | 173.7 |
| 62420150 | 42 x 1.50 | 28 | 67.7 | 137 |
| 62480100 | 48 x 1 | 29.6 | 47.2 | 124.5 |
| 62540100 | 54 x 1 | 33 | 51.8 | 158 |
| 62610100 | 61 x 1 | 31.6 | 58.6 | 153 |
