Low-smoke zero-halogen flame retardant building wire for installation on and under
plaster, in cable ducts and conduits. For indoor use only.

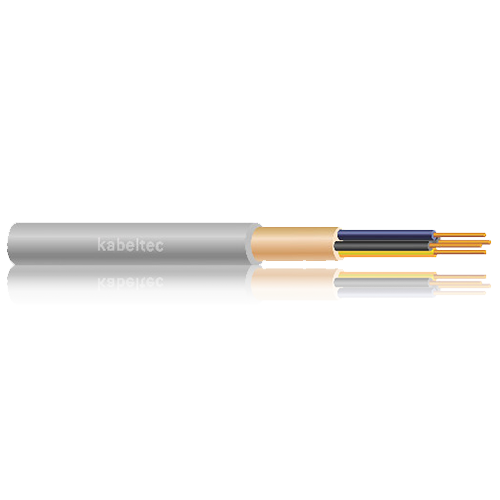

NHXMH-J/O
LSOH building wire acc. to VDE 250 T.214
CONSTRUCTION:
– bare copper core
– VPE core insulation
– halogen free filling mixture around the cores
– halogen free outer sheath
Technical Data:
Conductor Material: Copper, bare
Conductor class: Class 1 up to 10mm², 16-35mm² Class 2
Core insulation: VPE
Core identification: colours acc. VDE 0293 (HD308)
Stranding:
Outer sheath: halogen free-compound HM2
Sheath colour: grey
Rated voltage [V]: 300 / 500
Testing voltage [V]: 2000
Conductor resistance:
Insulation resistance:
Current carrying capacity:
Min. bending radius fixed [xd]:
Min. bending radius moved [xd]: 12xd
Working temp fixed min/max [C]: -30°C up to +70
Working temp moved min/mac [C]: -5°C up to+70°C
Temp at conductor max.: 70° C
Burning behaviour: VDE 0482-266-2-4/IEC 60332-3-24 (Kat.C) DIN EN61034/IEC 61034
Approvals: VDE 0250 T. 214
EN50266-2-4
EN 60332-1
IEC 60332-3 Kat.C
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 7040010150.00 | 1 x 1.50 GR | 5.20 | 1.50 | 7.50 |
| 7040010250.00 | 1 x 2.50 GR | 5.60 | 2.40 | 8.50 |
| 7040010400.00 | 1 x 4 GR | 7.00 | 3.90 | 13.50 |
| 7040010600.00 | 1 x 6 GR | 7.40 | 5.80 | 15.00 |
| 7040011000.00 | 1 x 10 GR | 7.80 | 9.60 | 20.00 |
| 7040011600.00 | 1 x 16 GR | 9.60 | 15.40 | 29.50 |
| 7040012500.00 | 1 x 25 GR | 12.00 | 24.00 | 35.00 |
| 7040030150.00 | 3 x 1.50 GR | 8.60 | 4.30 | 13.00 |
| 7040030250.00 | 3 x 2.50 GR | 9.50 | 7.20 | 16.50 |
| 7040030400.00 | 3 x 4 GR | 10.70 | 11.50 | 23.50 |
| 7040030600.00 | 3 x 6 GR | 12.30 | 17.30 | 32.00 |
| 7040031000.00 | 3 x 10 GR | 14.80 | 28.80 | 48.00 |
| 7040040150.00 | 4 x 1.50 GR | 9.20 | 5.80 | 15.00 |
| 7040040250.00 | 4 x 2.50 GR | 10.20 | 9.60 | 20.00 |
| 7040040400.00 | 4 x 4 GR | 12.20 | 15.40 | 30.00 |
| 7040040600.00 | 4 x 6 GR | 13.20 | 23.00 | 39.50 |
| 7040041000.00 | 4 x 10 GR | 15.80 | 38.40 | 59.50 |
| 7040041600.00 | 4 x 16 GR | 20.00 | 61.40 | 93.50 |
| 7040042500.00 | 4 x 25 GR | 24.50 | 96.00 | 142.00 |
| 7040043500.00 | 4 x 35 GR | 27.50 | 134.40 | 191.00 |
| 7040050150.00 | 5 x 1.50 GR | 9.80 | 7.20 | 17.50 |
| 7040050250.00 | 5 x 2.50 GR | 10.70 | 12.00 | 23.50 |
| 7040050400.00 | 5 x 4 GR | 13.20 | 19.20 | 35.00 |
| 7040050600.00 | 5 x 6 GR | 14.80 | 28.80 | 48.00 |
| 7040051000.00 | 5 x 10 GR | 17.40 | 48.00 | 71.00 |
| 7040051600.00 | 5 x 16 GR | 22.00 | 76.80 | 114.00 |
| 7040052500.00 | 5 x 25 GR | 28.00 | 120.00 | 190.00 |
| 7040070150.00 | 7 x 1.50 GR | 10.20 | 10.10 | 21.00 |
| 7040070250.00 | 7 x 2.50 GR | 12.20 | 16.80 | 30.00 |
| 7040100150.00 | 10 x 1.50 GR | 14.50 | 14.40 | 28.00 |
| 7040120150.00 | 12 x 1.50 GR | 16.50 | 17.30 | 32.00 |
| 7040240150.00 | 24 x 1.50 GR | 20.00 | 34.60 | 57.00 |
| 7040240250.00 | 24 x 2.50 GR | 23.00 | 57.60 | 78.70 |
