Suitable for use in rails, cars and buses, in dry rooms, pipes and closed installation ducts, for fixed installation. Short circuit proof cable protected against accidental earthing for low voltage plant up to 1000 V.

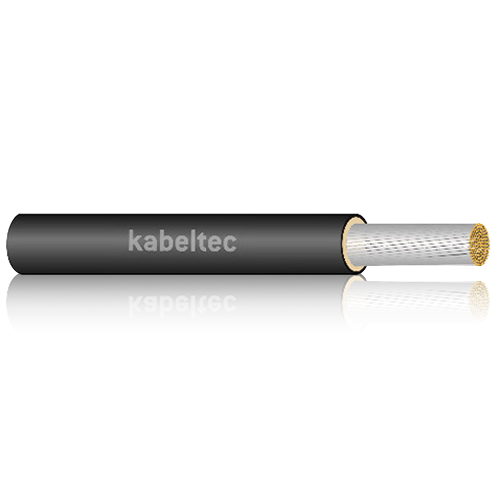

NSGAFU
Special rubber cable ACC. to VDE 0250
CONSTRUCTION:
- Tinned copper conductors
- Inner sheath made of EPR, compound 3GI3 in accordance to DIN VDE 0207 part 20
- Structure according to VDE 0295, class 5 or IEC 288 class 5
- Outer sheath made of ploy chloroprene 5 GM3
- Abrasion-resistant, oil-resistant, flame-resistant
- Sheath colour black
TECHNICAL DATA:
| Conductor Material | Copper, tinned |
| Conductor class | Class 5 or IEC 228 class 5 |
| Core insulation | ERR 3GI3 |
| Core identification | |
| Stranding | |
| Outer sheath | Polychloroprene 5GM3 |
| Sheath colour | Black |
| Rated voltage [V] | 1800 / 3000 (3600) or 3600/6000 (7200) |
| Testing voltage [V] | 6000 or 11000 |
| Conductor resistance | |
| Insulation resistance | |
| Current carrying capacity | 6000 or 11000 |
| Min. bending radius fixed [xd] | 5 x d |
| Min. bending radius moved [xd] | 5 x d |
| Working temp fixed min/max [C] | -40°C up to +90°C |
| Working temp moved min/mac [C] | -25°C up to +90°C |
| Temp at conductor max | + 90°C |
| Burning behaviour | IEC 60332-1: flame-retardant and self-extinguishing |
| Approvals | VDE 0250-602 Construction EN 60811-404 oil-resistant |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 64010150 | 1 x 1.50 1,8/3kV (3,6kV) | 5.5 | 1.44 | 6 |
| 1 x 1.50 3,6/6kV (7,2kV) | 9.5 | 1.44 | 11.9 | |
| 64010250 | 1 x 2.50 1,8/3kV (3,6kV) | 5.9 | 2.4 | 7 |
| 1 x 2.50 3,6/6kV (7,2kV) | 10.5 | 2.4 | 15 | |
| 64010400 | 1 x 4 1,8/3kV (3,6kV) | 6.4 | 3.8 | 9 |
| 1 x 4 3,6/6kV (7,2kV) | 12 | 3.84 | 20.1 | |
| 64010600 | 1 x 6 1,8/3kV (3,6kV) | 7 | 5.8 | 12 |
| 1 x 6 3,6/6kV (7,2kV) | 13 | 5.76 | 24.6 | |
| 64011000 | 1 x 10 1,8/3kV (3,6kV) | 8.4 | 9.6 | 18 |
| 1 x 10 3,6/6kV (7,2kV) | 14.5 | 9.6 | 32.3 | |
| 64011600 | 1 x 16 1,8/3kV (3,6kV) | 9.2 | 15.4 | 25 |
| 1 x 16 3,6/6kV (7,2kV) | 15.5 | 15.36 | 40.4 | |
| 64012500 | 1 x 25 1,8/3kV (3,6kV) | 11.6 | 24 | 39 |
| 1 x 25 3,6/6kV (7,2kV) | 17.5 | 24 | 54.7 | |
| 64013500 | 1 x 35 1,8/3kV (3,6kV) | 12.8 | 33.6 | 47 |
| 1 x 35 3,6/6kV (7,2kV) | 19 | 33.6 | 68.6 | |
| 64015000 | 1 x 50 1,8/3kV (3,6kV) | 14.3 | 48 | 63 |
| 1 x 50 3,6/6kV (7,2kV) | 21 | 48 | 89.1 | |
| 64017000 | 1 x 70 1,8/3kV (3,6kV) | 16 | 67.2 | 88 |
| 1 x 70 3,6/6kV (7,2kV) | 23 | 67.2 | 113.7 | |
| 64019500 | 1 x 95 1,8/3kV (3,6kV) | 18.4 | 91.2 | 119 |
| 1 x 95 3,6/6kV (7,2kV) | 26.5 | 91.2 | 153.8 | |
| 640112000 | 1 x 120 1,8/3kV (3,6kV) | 20 | 115.2 | 143 |
| 1 x 120 3,6/6kV (7,2kV) | 28.5 | 115.2 | 185.1 | |
| 640115000 | 1 x 150 1,8/3kV (3,6kV) | 21.8 | 144 | 175 |
| 1 x 150 3,6/6kV (7,2kV) | 30.5 | 144 | 221.2 | |
| 640118500 | 1 x 185 1,8/3kV (3,6kV) | 23.8 | 177.6 | 216 |
| 1 x 185 3,6/6kV (7,2kV) | 33 | 177.6 | 264.3 | |
| 640124000 | 1 x 240 1,8/3kV (3,6kV) | 27 | 230.4 | 264 |
| 640130000 | 1 x 300 1,8/3kV (3,6kV) | 38 | 288 | 317.8 |
| 64014000 | 1 x 400 | 40.5 | 384 | 420 |
| 640150000 | 1 x 500 | 42 | 480 | 550 |
